BT 2265 FC (7800470) - Brute 22" Walk-Behind Mower, Canada (2009) Engine & Blade Group Parts Diagram

22" Walk-Behind Mower, Canada

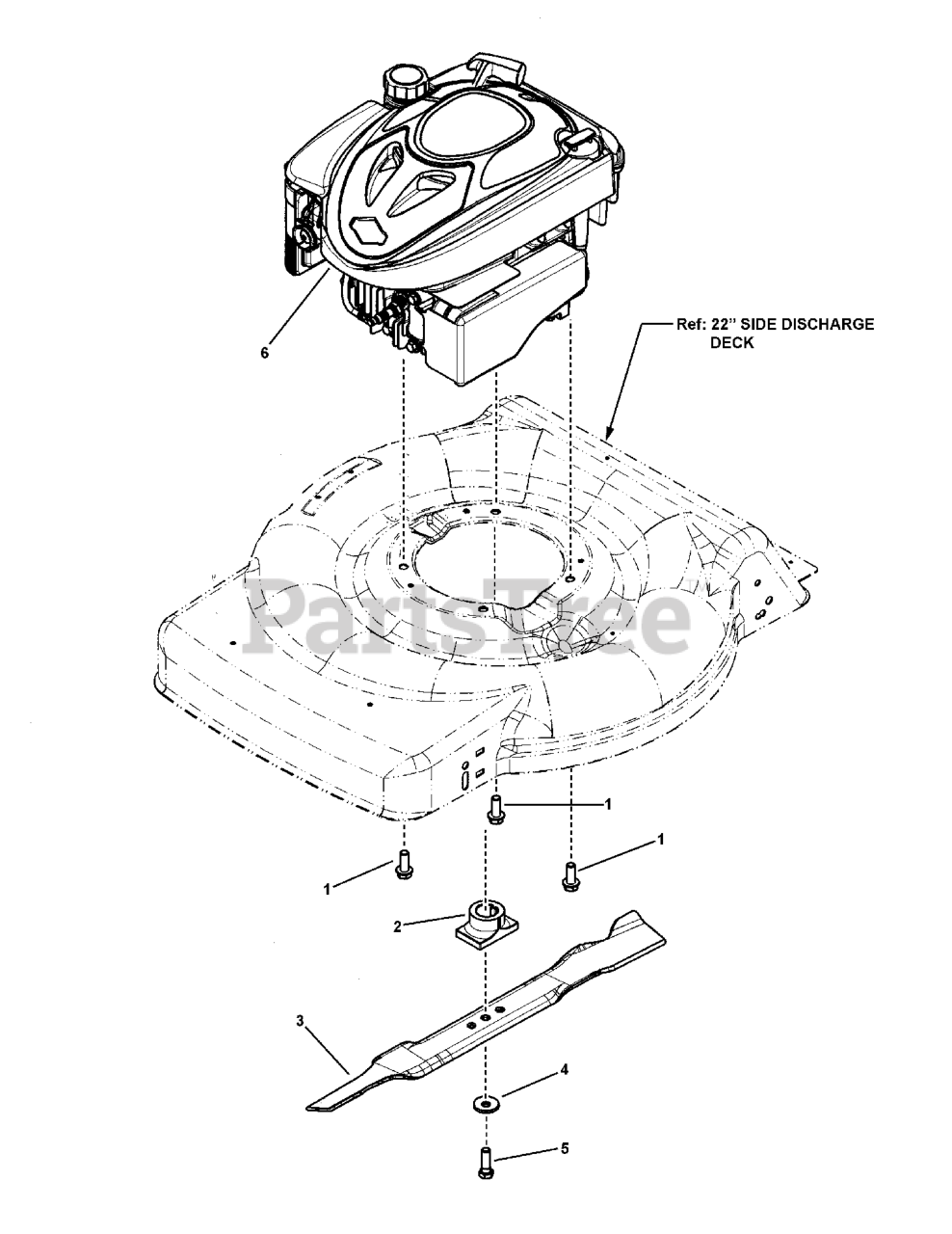

Engine & Blade Group Parts Diagram

  • Title

1

Murray 7090324SM

SCREW, 3/8-16 x 1" Hex Washer Self-Tap
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

2

Murray 7100862YP

HUB, Blade, 22" Push

$8.49

$

Usually ships in 2-12 days

0

3

Murray 7100851AYP

BLADE, 22", Walk Mower

$19.99

$

In Stock, only 1 left!

0

4

Murray 1101989MA

WASHER, Belleville, .38" ID. x 1.183" OD.

$5.49

$

Usually ships in 2-12 days

0

5

Murray 7090824YP

SCREW, 3/8-24 x 1-1/4" Hex Head Cap, GR 5

$4.99

$

In Stock, Qty 9

0

6

Murray 124T02-0301-B1

* ENGINE, B&S, 650 Ser, X-Spec, B1, FC

$

$

Currently unavailable

6

Murray 126T02-0177-B1

* ENGINE, B&S, 675 Ser, X-Spec, B1, FC

$

$

Currently unavailable

--

Murray 792327

* CAP, Fuel Assembly (Fresh Start - Yellow B&S Logo) (Not Shown)

$

$

Currently unavailable

--

Murray 95050

* SCREW, Pan Head Thread Rolling (Not Shown)
(Superseded to 691138)

$3.99

$

In Stock, Qty 18

0
