BT 225 - RedMax Brush Trimmer (SN: 00200101 - 50099999) (2002-01) 028 - DRIVE UNIT Parts Diagram

Brush Trimmer

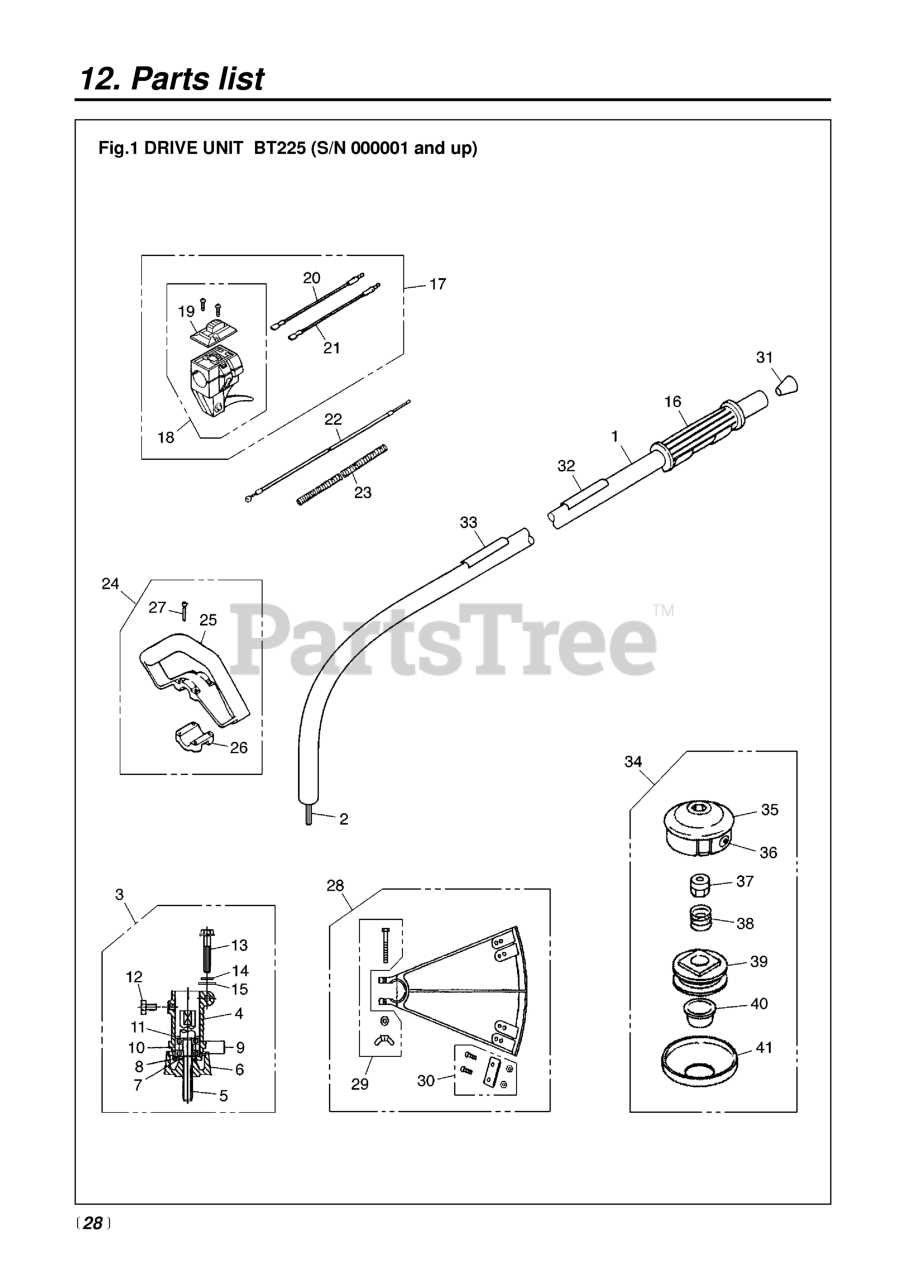

028 - DRIVE UNIT Parts Diagram

  • Title
1

RedMax BT0150810

PIPE COMP.

$

$

Not available

2

RedMax BT0150710

FLEX SHAFT

$

$

Not available

3

RedMax BT0050910

HOUSING ASSEMBLY

$

$

Not available

4

CASE

$

$

Not available

5

SHAFT

$

$

Not available

6

HOLDER

$

$

Not available

7

RedMax BT0050920

WASHER, M8

$0.37

$

Usually ships in 3-10 days

0

8

RedMax BT0050960

WASHER, M8

$2.13

$

Usually ships in 3-10 days

0

9

RedMax 0600200608

BEARING (RPLS. T4001-31340)
(Superseded to 516130201)

$18.99

$

Usually ships in 3-10 days

0

10

$2.13

$

Usually ships in 3-10 days

0

11

RedMax BT0050930

WASHER, M12

$2.35

$

Usually ships in 3-10 days

0

12

RedMax 0125230510

BOLT, M5 X 10
(Superseded to 505169901)

$4.99

$

In Stock, only 1 left!

0

13

RedMax 0125230530

BOLT, M5 X 30
(Superseded to 506609401)

$3.49

$

In Stock, only 4 left!

0

14

RedMax BT0050950

WASHER, M5

$0.73

$

Usually ships in 3-10 days

0

15

RedMax 0164120508

WASHER, M5 X .8
(Superseded to 516077501)

$3.99

$

Usually ships in 3-10 days

0

16

RedMax 357732141

GRIP (RPLS 3577-32140 & 3220-
(Superseded to 521651001)

$

$

Not available

17

RedMax T300212203

848-8R2-0343
(Superseded to 521529701)

$

$

Not available

18

RedMax 611014412

LEVER (USE 848-8R2-0313)
(Superseded to 521529601)

$

$

Not available

19

RedMax 61101441002

COVER (USE 848-8RA-0340)

$

$

Not available

20

RedMax T300212220

CORD (A), BLACK
(Superseded to 521803401)

$8.49

$

In Stock, only 1 left!

0

21

RedMax T300212230

CORD (B), RED
(Superseded to 521803501)

$5.99

$

Usually ships in 3-10 days

0

22

RedMax 185582100

CABLE COMP (RPLS 1633-83100)
(Superseded to 513422001)

$

$

Not available

23

RedMax T300314510

TUBE
(Superseded to 521805501)

$4.99

$

Usually ships in 3-10 days

0

24

RedMax 642014100

HANDLE ASSEMBLY
(Superseded to 521465701)

$

$

Not available

25

RedMax 642014311

HANDLE
(Superseded to 515625501)

$

$

Not available

26

$

$

Not available

27

RedMax 026390535

SCREW, M5 x 35
(Superseded to 516113601)

$

$

Not available

28

RedMax BT0080810

GUARD ASSEMBLY

$

$

Not available

29

RedMax BT0080840

GUARD MOUNTING ASSEMBLY

$0.95

$

Usually ships in 3-10 days

0

30

RedMax BT0080830

BLADE ASSEMBLY

$

$

Not available

31

RedMax BT0050820

END CAP, TUBE

$2.35

$

Usually ships in 3-10 days

0

32

RedMax BT0199010

LABEL FOR BT225

$3.90

$

Usually ships in 3-10 days

0

33

RedMax 642512552

PLATE, CAUTION

$2.96

$

Usually ships in 3-10 days

0

34

RedMax UBT100R

HEAD (BT2201) (ACC.)
(Superseded to 574165201)

$

$

Not available

35

RedMax UBT341R

HOUSING

$

$

Not available

36

RedMax UBT9

EYELET

$

$

Not available

$

$

Not available

38

RedMax UBT354

SPRING

$

$

Not available

39

$

$

Not available

40

RedMax UBT347

BUTTON

$

$

Not available

41

$

$

Not available
