BT 2201 - RedMax Brush Trimmer 001 - DRIVE UNIT Parts Diagram

Brush Trimmer

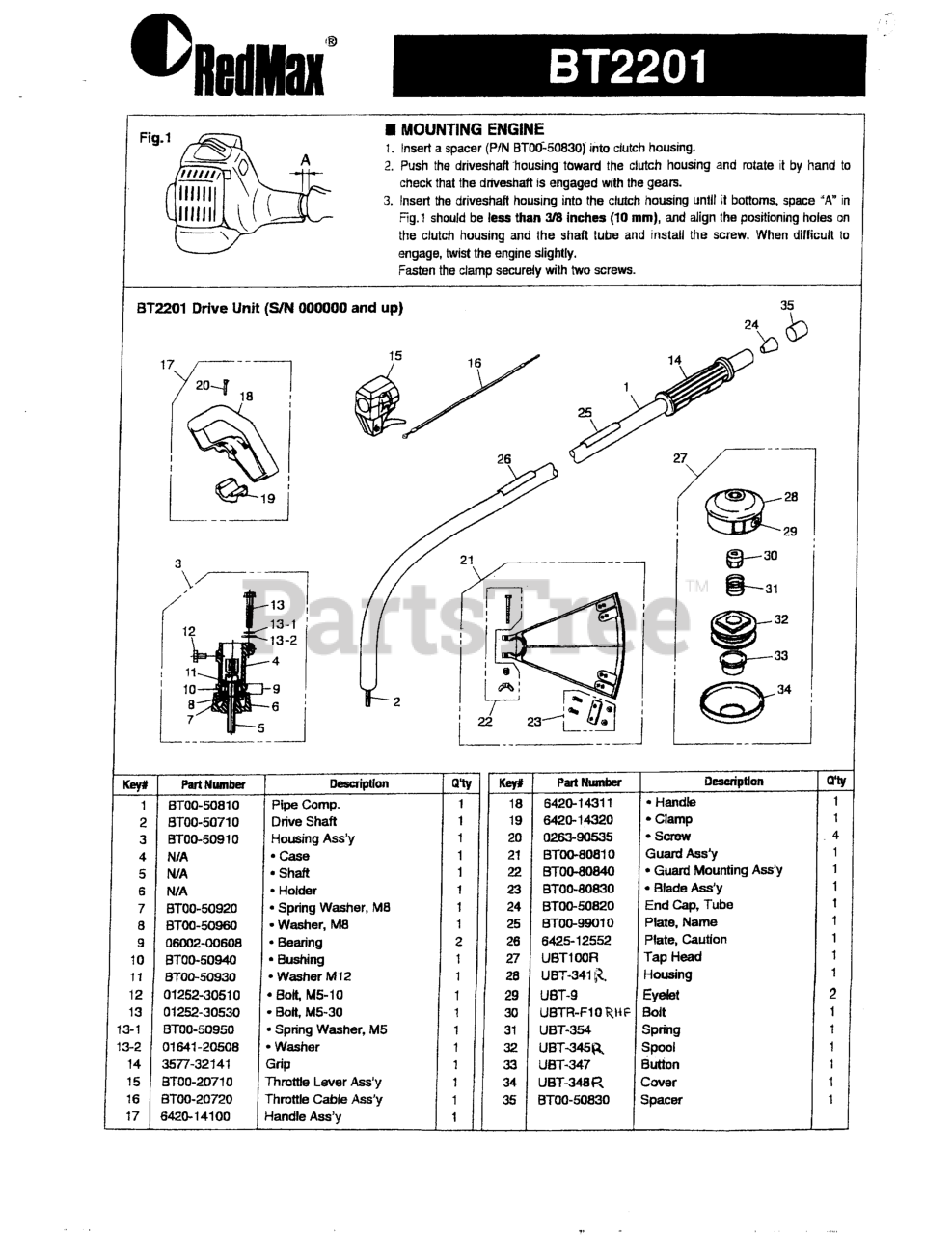

001 - DRIVE UNIT Parts Diagram

  • Title

1

RedMax BT0050810

PIPE COMPLETE

$

$

Not available

2

RedMax BT0050710

BT00-50711

$

$

Not available

3

RedMax BT0050910

HOUSING ASSEMBLY

$

$

Not available

4

CASE (N/A)

$

$

Not available

5

SHAFT (N/A)

$

$

Not available

6

HOLDER (N/A)

$

$

Not available

7

RedMax BT0050920

WASHER, M8

$0.37

$

Usually ships in 3-10 days

0

8

RedMax BT0050960

WASHER, M8

$2.13

$

Usually ships in 3-10 days

0

9

RedMax 0600200608

BEARING (RPLS. T4001-31340)
(Superseded to 516130201)

$18.99

$

Usually ships in 3-10 days

0

10

RedMax BT0050940

BUSHING

$2.13

$

Usually ships in 3-10 days

0

11

RedMax BT0050930

WASHER, M12

$2.35

$

Usually ships in 3-10 days

0

12

RedMax 0125230510

BOLT, M5 X 10
(Superseded to 505169901)

$4.99

$

In Stock, only 1 left!

0

13

RedMax 0125230530

BOLT, M5 X 30
(Superseded to 506609401)

$3.49

$

In Stock, only 4 left!

0

13-1

RedMax BT0050950

WASHER, M5

$0.73

$

Usually ships in 3-10 days

0

13-2

RedMax 0164120508

WASHER, M5 X .8
(Superseded to 516077501)

$3.99

$

Usually ships in 3-10 days

0

14

RedMax 357732141

GRIP (RPLS 3577-32140 & 3220-
(Superseded to 521651001)

$

$

Not available

15

RedMax BT0020710

THROTTLE LEVER ASSEMBLY

$

$

Not available

16

RedMax BT0020720

THROTTLE CABLE ASSEMBLY

$

$

Not available

17

RedMax 642014100

HANDLE ASSEMBLY
(Superseded to 521465701)

$

$

Not available

18

RedMax 642014311

HANDLE
(Superseded to 515625501)

$

$

Not available

19

RedMax 642014320

CLAMP

$

$

Not available

20

RedMax 026390535

SCREW, M5 x 35
(Superseded to 516113601)

$

$

Not available

21

RedMax BT0080810

GUARD ASSEMBLY

$

$

Not available

22

RedMax BT0080840

GUARD MOUNTING ASSEMBLY

$0.95

$

Usually ships in 3-10 days

0

23

RedMax BT0080830

BLADE ASSEMBLY

$

$

Not available

24

RedMax BT0050820

END CAP, TUBE

$2.35

$

Usually ships in 3-10 days

0

25

RedMax BT0099010

LABEL (BT2201)

$3.77

$

Usually ships in 3-10 days

0

26

RedMax 642512552

PLATE, CAUTION

$2.96

$

Usually ships in 3-10 days

0

27

RedMax UBT100R

HEAD (BT2201) (ACC.)
(Superseded to 574165201)

$

$

Not available

28

RedMax UBT341R

HOUSING

$

$

Not available

29

RedMax UBT9

EYELET

$

$

Not available

30

RedMax UBTRF10RHF

UBTR-F10-RHF

$

$

Not available

31

RedMax UBT354

SPRING

$

$

Not available

32

RedMax UBT345R

SPOOL

$

$

Not available

33

RedMax UBT347

BUTTON

$

$

Not available

34

RedMax UBT348R

COVER

$

$

Not available

35

RedMax BT0050830

SPACER (USE 6367-13990)

$

$

Not available
