BT 19550 FC (881403) - Brute 19" Walk-Behind Mower, Canada (2011) Deck & Engine Group Parts Diagram

19" Walk-Behind Mower, Canada

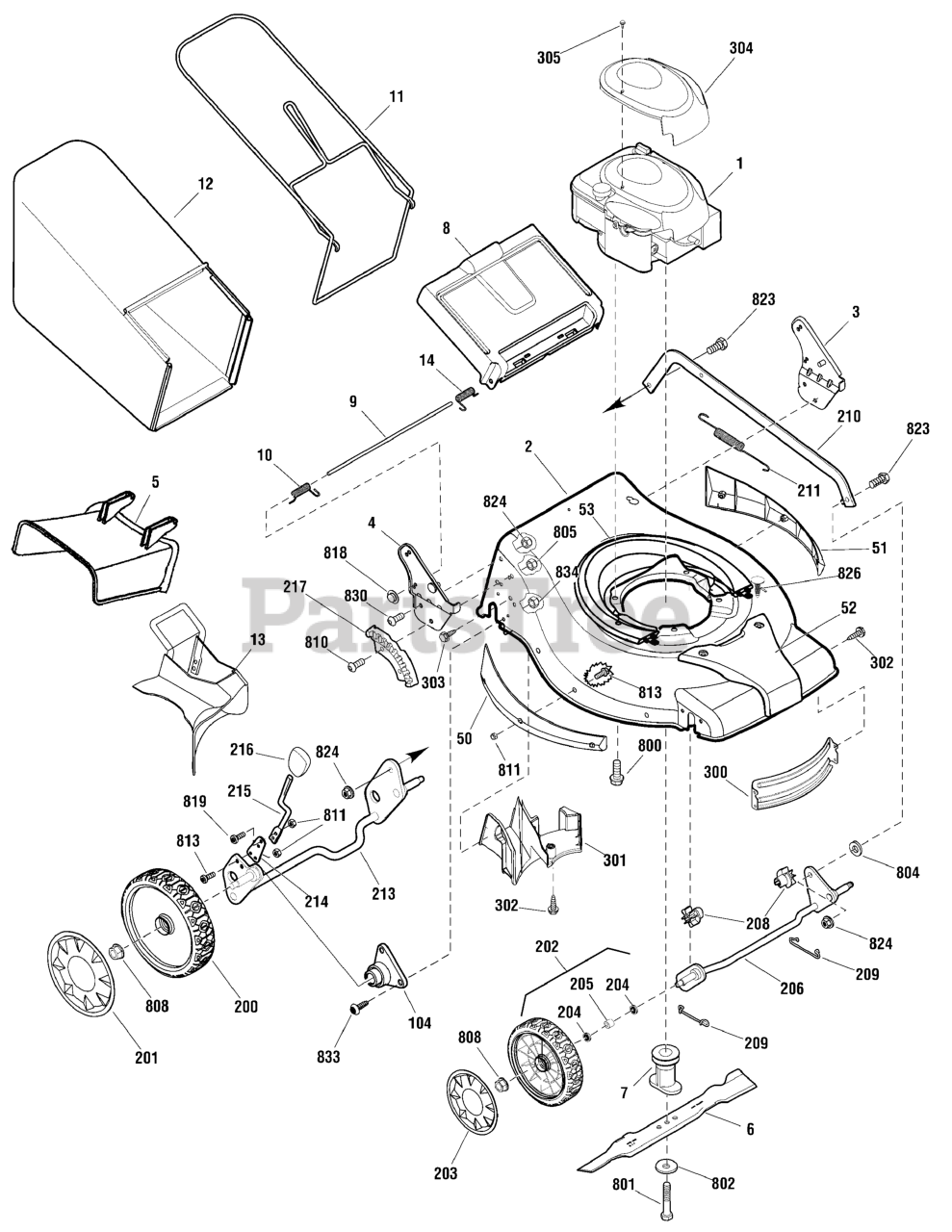

Deck & Engine Group Parts Diagram

  • Title

1

Murray 10L802-0115-F1

* ENGINE, B&S, 550 Series, 10L802-0115-F1

$

$

Currently unavailable

2

Murray 881252BJYP

HOUSING ASSEMBLY, 19" SD

$153.99

$

Usually ships in 2-12 days

0

3

Murray 880951AYP

BRACKET ASSEMBLY, Left Handle

$20.99

$

Usually ships in 2-12 days

0

4

Murray 880950AYP

BRACKET ASSEMBLY, Right Handle

$20.99

$

Usually ships in 2-12 days

0

5

Murray 880579YP

DEFLECTOR, Chute

$39.99

$

In Stock, only 1 left!

0

6

Murray 880638YP

BLADE, 19"
(Superseded to 880638BZYP)

$26.99

$

In Stock, only 1 left!

0

7

Murray 880009YP

BLADE ADAPTER ASSEMBLY

$18.99

$

Usually ships in 2-12 days

0

8

Murray 880671YP

DOOR, Rear

$42.99

$

Usually ships in 2-12 days

0

9

Murray 880214YP

ROD, Rear Door

$10.99

$

Usually ships in 2-12 days

0

10

Murray 880942YP

SPRING, Torsion Rear Door, Right

$4.49

$

Usually ships in 2-12 days

0

11

Murray 880941ZYP

FRAME ASSEMBLY
(Superseded to 880941BMYP)

$165.99

$

Usually ships in 2-12 days

0

12

Murray 880938YP

BAG ASSEMBLY

$71.99

$

Usually ships in 2-12 days

0

13

Murray 880909YP

MULCH PLUG

$43.99

$

Usually ships in 2-12 days

0

14

Murray 880943YP

SPRING, Torsion Rear Door, Left

$4.49

$

Usually ships in 2-12 days

0

50

Murray 881112YP

SIDE GUARD, Right

$10.99

$

Usually ships in 2-12 days

0

51

Murray 881109YP

SIDE GUARD, Left

$14.99

$

Usually ships in 2-12 days

0

52

Murray 881235YP

HOUSING COVER, Front

$33.99

$

Usually ships in 2-12 days

0

53

Murray 881234YP

HOUSING COVER, Rear

$31.99

$

Usually ships in 2-12 days

0

104

Murray 880786YP

SLEEVE ASSEMBLY, Rear Axle

$7.99

$

Usually ships in 2-12 days

0

200

Murray 880709YP

WHEEL, Rear

$40.99

$

In Stock, only 1 left!

0

201

Murray 880657YP

HUBCAP, Rear

$13.99

$

Usually ships in 2-12 days

0

202

Murray 880718YP

WHEEL, Front, Complete

Note: (Incl. Ref. Nos. 204 & 205)

$56.99

$

In Stock, only 1 left!

0

203

Murray 880656YP

HUBCAP, Front

$14.99

$

Usually ships in 2-12 days

0

204

Murray 880175YP

WHEEL BEARING
(Superseded to 880718YP)

Note: (Included with Ref. No. 202)

$56.99

$

In Stock, only 1 left!

0

205

Murray 880176YP

SPACER

Note: (Included with Ref. No. 202)

$3.99

$

Usually ships in 2-12 days

0

206

Murray 880053YP

CROSSBAR ASSEMBLY, Front

$48.99

$

Usually ships in 2-12 days

0

208

Murray 880050YP

BUSHING, Front Crossbar

$4.99

$

Usually ships in 2-12 days

0

209

Murray 881163YP

SPRING, Clip Crossbar

$8.99

$

In Stock, Qty 7

0

210

Murray 880791BJYP

LINK, Single Lever

$41.99

$

Usually ships in 2-12 days

0

211

Murray 880052YP

SPRING, Extension

$6.99

$

Usually ships in 2-12 days

0

213

Murray 880829YP

REAR CROSSBAR

$94.99

$

Usually ships in 2-12 days

0

214

Murray 880642YP

SPRING, Adjuster

$5.99

$

In Stock, only 2 left!

0

215

Murray 880540YP

LEVER, Height Adjustment

$7.99

$

Usually ships in 2-12 days

0

216

Murray 880325YP

KNOB, Adjuster

$5.99

$

Usually ships in 2-12 days

0

217

Murray 880960YP

BRACKET, Height Adjuster

$16.99

$

Usually ships in 2-12 days

0

300

Murray 880784BJYP

BAFFLE, Front

$46.99

$

Usually ships in 2-12 days

0

301

Murray 880785YP

BAFFLE, Rear

$64.99

$

Usually ships in 2-12 days

0

302

Murray 880664YP

SCREW, Pan Head, Taptite, 1/4-20 x 1/2

$3.99

$

Usually ships in 2-12 days

0

303

Murray 880804YP

SCREW, 1/4-15 x 5/8

$3.99

$

Usually ships in 2-12 days

0

304

Murray 793814

SHROUD, With Label

$

$

Currently unavailable

305

Murray 95225

SCREW, Machine Hex Washer Head

$

$

Currently unavailable

800

Murray 7090324SM

SCREW, HWST, 3/8 C X1 BZ
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

801

Murray 880034YP

BOLT, 3/8-24 x 2 Gr. 8

$4.49

$

Usually ships in 2-12 days

0

802

Murray 880035YP

WASHER, Belleville 7/16 ID

$3.49

$

Usually ships in 2-12 days

0

804

Murray 880607YP

WASHER, 5/8

$3.99

$

Usually ships in 2-12 days

0

805

Murray 880020YP

NUT, Nylock, M8 x 1-1/4

$3.99

$

Usually ships in 2-12 days

0

808

Murray 880067YP

NUT, Flange Lock 3/8-16

$2.99

$

Usually ships in 2-12 days

0

810

Murray 880323YP

BOLT, Hex Key Head

$3.99

$

In Stock, only 4 left!

0

811

Murray 880428YP

NUT, Nylock

$3.99

$

Usually ships in 2-12 days

0

813

Murray 880339YP

SCREW, Torx Head, M5 x 0.8 x 14mm

$3.99

$

In Stock, only 4 left!

0

818

Murray 7091020YP

NUT, Push, 1/4 BZ
(Superseded to 704005)

$4.49

$

In Stock, Qty 20+

0

819

Murray 880577YP

SCREW, Torx Head, M5 x 0.8 x 12.5mm

$3.99

$

In Stock, only 4 left!

0

823

Murray 880651YP

BOLT, Hex Washer Head Shoulder, 5/16-18

$3.99

$

Usually ships in 2-12 days

0

824

Murray 880759YP

NUT, 5/16-18, Flange Lock, BZ

$2.99

$

Usually ships in 2-12 days

0

826

Murray 880456YP

SCREW, Truss Head Torx, 1/4-20 x 7/8

$3.49

$

Usually ships in 2-12 days

0

830

Murray 880748YP

SCREW, 5/16-18 x 1.1, Hex Washer

$3.99

$

Usually ships in 2-12 days

0

833

Murray 880845YP

SCREW, Torx, 1/4-20 x 5/8

$3.49

$

Usually ships in 2-12 days

0

834

Murray 880859YP

NUT, Flange Lock, 1/4-20

$3.99

$

Usually ships in 2-12 days

0
