BT 17 - RedMax Brush Trimmer (1990-12) 025 - DRIVESHAFT/ACCESSORIES/TOOLS Parts Diagram

Brush Trimmer

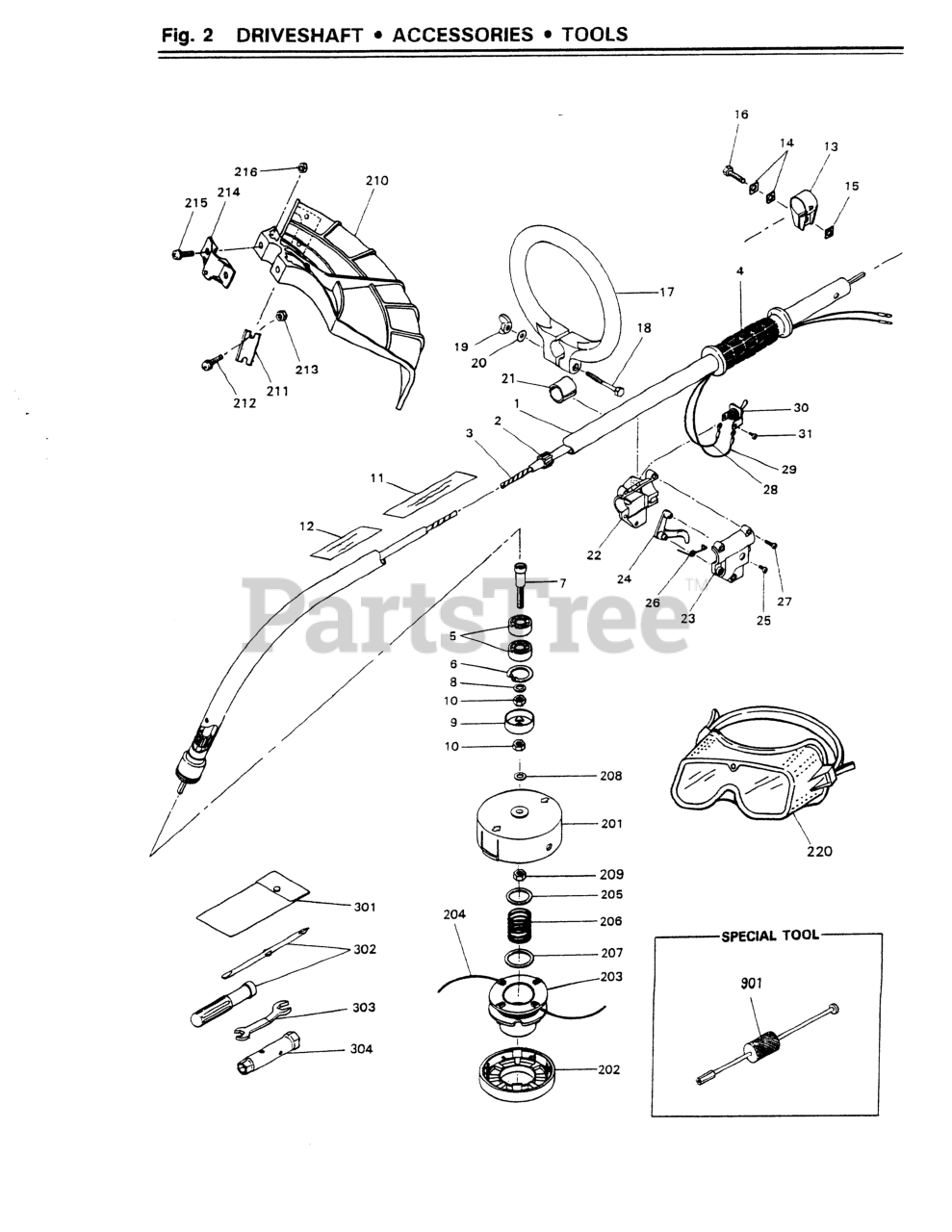

025 - DRIVESHAFT/ACCESSORIES/TOOLS Parts Diagram

  • Title

RedMax 323811001

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$

$

Not available

RedMax 323811102

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$

$

Not available

1

RedMax 323811102

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$

$

Not available

2

RedMax 323811102

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$

$

Not available

3

RedMax 323811230

SHAFT, FLEX (NO LONGER AVAIL)

Note: Context Note: @ÿ

$

$

Not available

4

RedMax 323814550

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$

$

Not available

5

RedMax 0603106201

BEARING

$9.60

$

Usually ships in 3-10 days

0

6

RedMax 0406503212

RING, SNAP, M32 x 1.2
(Superseded to 504121001)

$3.99

$

Usually ships in 3-10 days

0

7

RedMax 323811130

SHAFT (NO LONGER AVAILABLE)

Note: Context Note: @ÿ

$

$

Not available

8

RedMax 029120816

WASHER, M8 x 16
(Superseded to 516119101)

$

$

Not available

9

RedMax 323811140

COVER (NO LONGER AVAILABLE)

Note: Context Note: @ÿ

$

$

Not available

10

RedMax 028010806

NUT, M8 x 6

$0.31

$

Usually ships in 3-10 days

0

11

RedMax 604911530

PLATE, NAME

$0.44

$

Usually ships in 3-10 days

0

12

RedMax 358411540

PLATE, CAUTION

$0.37

$

Usually ships in 3-10 days

0

13

RedMax 323811350

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$

$

Not available

14

RedMax 323811360

PLATE

$0.93

$

Usually ships in 3-10 days

0

15

RedMax 323811370

NUT

$0.30

$

Usually ships in 3-10 days

0

16

RedMax 022400635

BOLT, M6 x 35

$0.31

$

Usually ships in 3-10 days

0

17

RedMax 323812110

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$

$

Not available

18

RedMax 022400650

BOLT, M6 X 50

$0.47

$

Usually ships in 3-10 days

0

19

RedMax 323812130

NUT, WING

$0.30

$

Usually ships in 3-10 days

0

20

RedMax 029120616

WASHER, M6 X 16

$0.07

$

Usually ships in 3-10 days

0

21

RedMax 323812140

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$

$

Not available

RedMax 604912400

LEVER ASSEMBLY

$17.88

$

Usually ships in 3-10 days

0

22

RedMax 323814512

CASE (NO LONGER AVAILABLE)

Note: Context Note: @ÿ

$

$

Not available

23

RedMax 323814522

CASE-L (NO LONGER AVAILABLE)

Note: Context Note: @ÿ

$1.88

$

Usually ships in 3-10 days

0

24

RedMax 323814531

LEVER, THROTTLE (NLA)

Note: Context Note: @ÿ

$

$

Not available

25

RedMax 026000506

SCREW, M5 X 6 (USE 0260-20508)

$

$

Not available

26

RedMax 323814540

SPRING (NO LONGER AVAILABLE)

Note: Context Note: @ÿ

$

$

Not available

27

RedMax 190031410

SCREW, HOUSING
(Superseded to 513442301)

$1.11

$

Usually ships in 3-10 days

0

28

RedMax 323814150

CORD (A) (NO LONGER AVAIL)

Note: Context Note: @ÿ

$

$

Not available

29

RedMax 323814161

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$

$

Not available

RedMax 323806020

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$

$

Not available

30

SWITCH

$

$

Not available

31

RedMax 026000405

SCREW, M4 X 5

$0.07

$

Usually ships in 3-10 days

0

RedMax 351015000

3510-1

$

$

Not available

201

RedMax 323199111

3231-99112
(Superseded to T303399900)

$

$

Not available

202

RedMax 323199131

3231-99132
(Superseded to T303399900)

$

$

Not available

203

RedMax 350399140

HOLDER, CORD
(Superseded to 574013901)

$

$

Not available

204

RedMax 323815180

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$

$

Not available

205

RedMax 326815150

PLATE, LARGE
(Superseded to 520939401)

$

$

Not available

206

RedMax 326815160

3268-15161
(Superseded to 520939701)

$2.49

$

Usually ships in 3-10 days

0

207

RedMax 326815170

PLATE, SMALL
(Superseded to 520939801)

$6.49

$

Usually ships in 3-10 days

0

208

RedMax 029120816

WASHER, M8 x 16
(Superseded to 516119101)

$

$

Not available

209

RedMax 326815140

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$

$

Not available

RedMax 633323101

6333-23102
(Superseded to 633323102)

$14.99

$

Usually ships in 3-10 days

0

210

RedMax 633323111

6333-23112
(Superseded to 633323102)

$14.99

$

Usually ships in 3-10 days

0

211

RedMax 323823130

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$

$

Not available

212

RedMax 026030412

SCREW, M4 X 12
(Superseded to 516102101)

$0.99

$

Usually ships in 3-10 days

0

213

RedMax 323813150

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$0.41

$

Usually ships in 3-10 days

0

214

RedMax 323823120

CLAMP (NO LONGER AVAILABLE)

Note: Context Note: @ÿ

$

$

Not available

215

RedMax 026030620

0263-30620

$

$

Not available

216

RedMax 028010605

NUT, M6 X 5
(Superseded to 510486101)

$3.49

$

In Stock, Qty 5

0

220

RedMax 624292110

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$6.72

$

Usually ships in 3-10 days

0

RedMax 323891001

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$

$

Not available

301

RedMax 323891110

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$

$

Not available

302

RedMax 103091340

SCREWDRIVER
(Superseded to 516153801)

$

$

Not available

303

RedMax 323991131

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$

$

Not available

304

RedMax 323991310

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$

$

Not available

901

RedMax 323899100

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$

$

Not available
