BS 85 (531308327) - Husqvarna Tow-Behind Broadcast Spreader (2008-01) 85 LB Push Broadcast Spreader Parts Diagram

Tow-Behind Broadcast Spreader

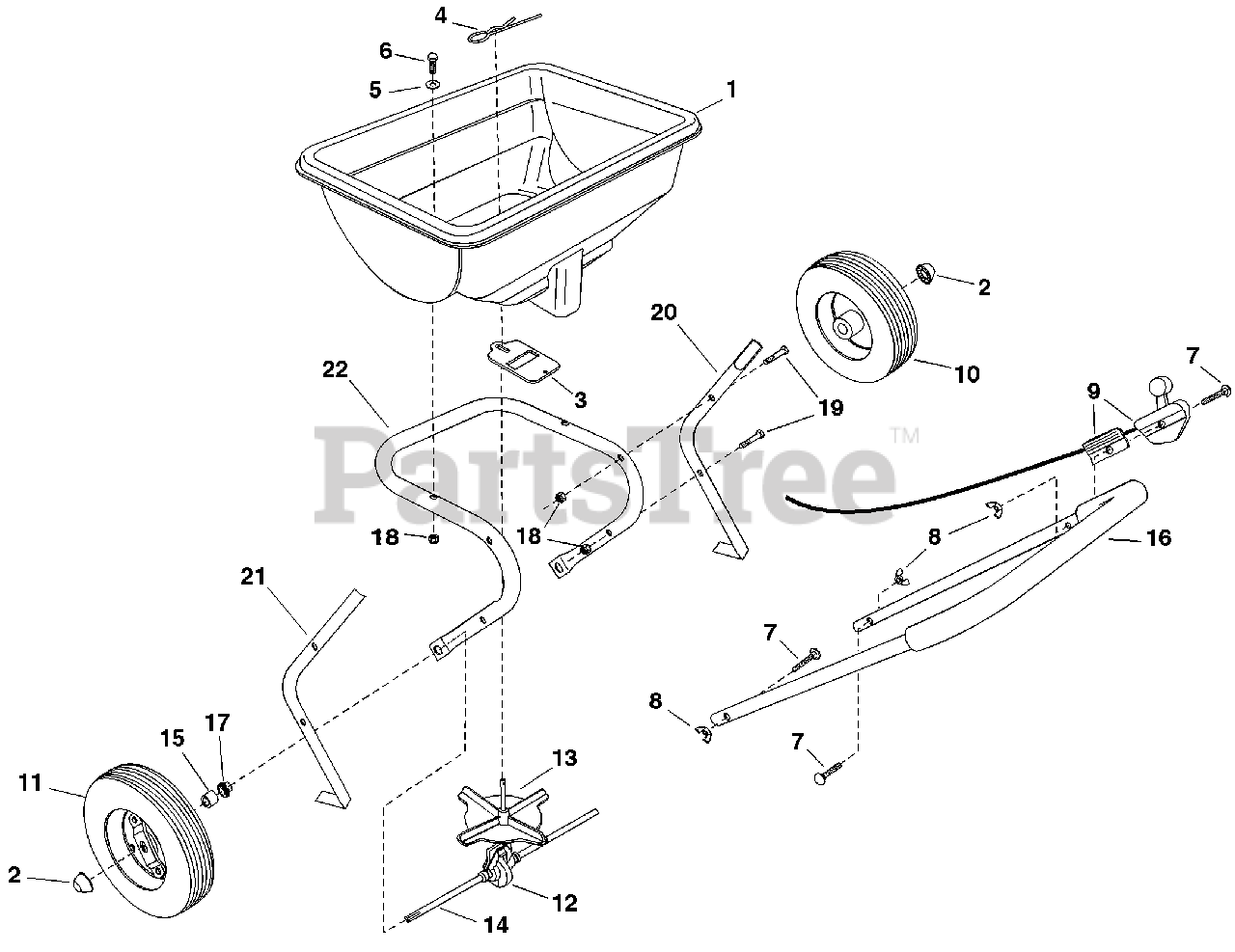

85 LB Push Broadcast Spreader Parts Diagram

  • Title

1

Husqvarna 47994BLK

Hopper

$

$

Currently unavailable

2

Husqvarna 44663

Hub Cap

$

$

Currently unavailable

3

Husqvarna 47983

Flow Slide

$

$

Currently unavailable

4

Husqvarna 48934

Hairpin Agitator

$

$

Currently unavailable

5

Husqvarna 43088

Washer, 1/4 Std

$

$

Currently unavailable

6

Husqvarna 43648

Hex Bolt, 1/4-20 x 1-1/2"

$

$

Currently unavailable

7

Husqvarna 45165

Carriage Bolt 1/4-20 x 2"

$

$

Currently unavailable

8

Husqvarna 47141

Wing Nut, Nylon 1/4-20

$

$

Currently unavailable

9

Husqvarna 49447

Control Cable Assembly

Note: (includes items 7 & 8)

$

$

Currently unavailable

10

Husqvarna 46503

Wheel & Tire Assembly

$

$

Currently unavailable

11

Husqvarna 48865

Wheel & Tire Assembly /w Drive

$

$

Currently unavailable

12

Husqvarna 49084

Gearbox Assembly

$

$

Currently unavailable

13

Husqvarna 47124

Impeller

$

$

Currently unavailable

14

Husqvarna 49082

Axle

$

$

Currently unavailable

15

Husqvarna 47851

Plastic Spacer

$

$

Currently unavailable

16

Husqvarna 47985

Handle Tube

$

$

Currently unavailable

17

Husqvarna 47963

Hex Flange Bearing

$

$

Currently unavailable

18

Husqvarna 47189

Nut, Nylock 1/4"

$

$

Currently unavailable

19

Husqvarna 46699

Hex Bolt, 1/4-20 x 2"

$

$

Currently unavailable

20

Husqvarna 49958

Leg Tube, R.H.

$

$

Currently unavailable

21

Husqvarna 49816

Leg Tube, L.H.

$

$

Currently unavailable

22

Husqvarna 49085

Frame Tube

$

$

Currently unavailable

Husqvarna 49817

Owner's Manual

$

$

Currently unavailable
