BS 85 (531308326) - Husqvarna Tow-Behind Broadcast Spreader (2008-01) BS 85, 85 LB Tow Broadcast Spreader Parts Diagram

Tow-Behind Broadcast Spreader

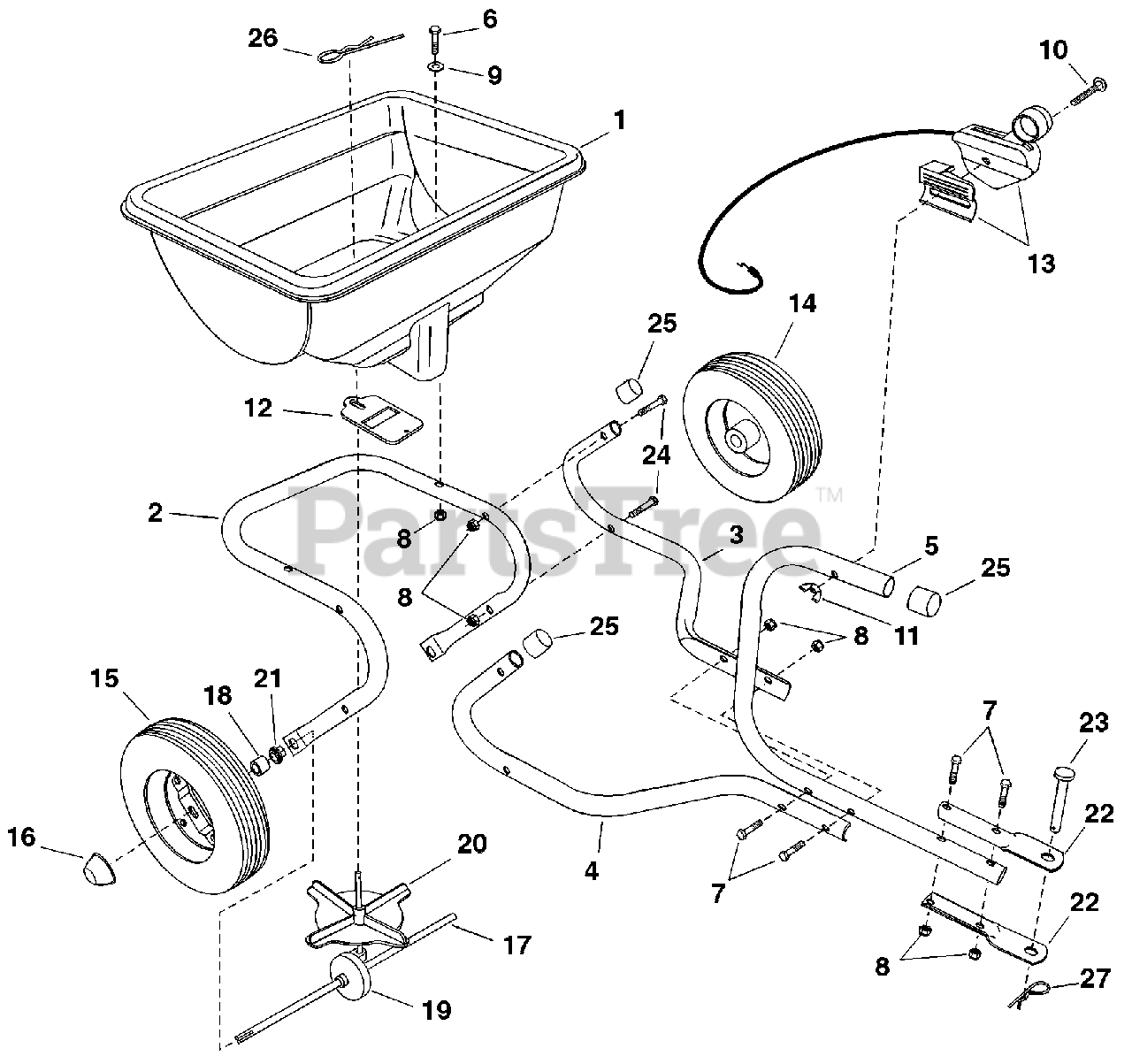

BS 85, 85 LB Tow Broadcast Spreader Parts Diagram

  • Title

$

$

Currently unavailable

2

Husqvarna 49085

Frame Tube

$

$

Currently unavailable

3

Husqvarna 49087

Hitch Tube

Note: (LH)

$

$

Currently unavailable

4

Husqvarna 49088

Hitch Tube

Note: (RH)

$

$

Currently unavailable

5

Husqvarna 49091

Hitch Control Tube

$

$

Currently unavailable

6

Husqvarna 43648

Hex Bolt, 1/420 x 1-1/2"

$

$

Currently unavailable

7

150969

Hex Bolt, 1/420 x 1-3/4"

$

$

Not available

8

Husqvarna 47189

Nylock Nut, 1/420

$

$

Currently unavailable

9

Husqvarna 43088

Washer, 1/4 Std

$

$

Currently unavailable

10

Husqvarna 45165

Carriage Bolt 1/420 x 2"

$

$

Currently unavailable

11

Husqvarna 47141

Nylon Wing Nut 1/4-20

$

$

Currently unavailable

12

Husqvarna 47983

Flow Slide

$

$

Currently unavailable

13

Husqvarna 49820

Control Cable Asembly

Note: (includes items 10 & 11)

$

$

Currently unavailable

14

$

$

Currently unavailable

15

Husqvarna 48865

Drive Wheel

$

$

Currently unavailable

16

Husqvarna 44663

Hub Cap

Note: (Push Nut)

$

$

Currently unavailable

17

$

$

Currently unavailable

18

$

$

Currently unavailable

19

Husqvarna 49084

Gearbox

$

$

Currently unavailable

20

Husqvarna 47124

Impeller

$

$

Currently unavailable

21

Husqvarna 47963

Hex Flange Bearing

$

$

Currently unavailable

22

Husqvarna 24446

Hitch Bracket

$

$

Currently unavailable

23

Husqvarna 47623

Hitch Pin

$

$

Currently unavailable

24

Husqvarna 46699

Hex Bolt, 1/4-20 x 2"

$

$

Currently unavailable

25

Husqvarna 44481

Vinyl Cap

$

$

Currently unavailable

26

Husqvarna 48934

Hairpin, Agitator

$

$

Currently unavailable

27

Husqvarna 43343

Hairpin, Cotter

$

$

Not available

Husqvarna 49456

Owners Manual

$

$

Currently unavailable
