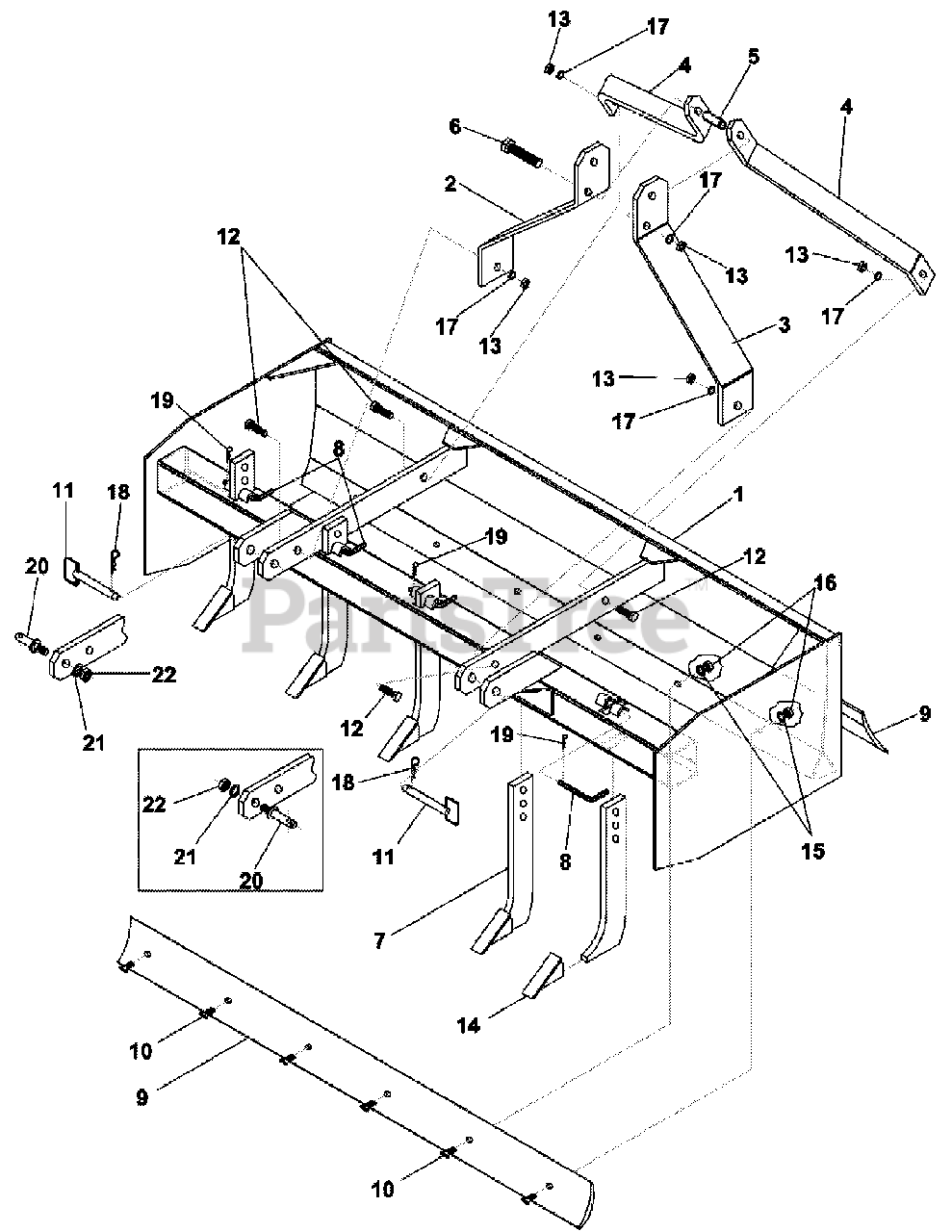

BS 72 (59A40060727) - Cub Cadet Yanmar Tractor 72" Box Scraper Frame Version 2 Parts Diagram

Tractor 72" Box Scraper

Frame Version 2 Parts Diagram

  • Title

1

Cub Cadet YS-503-934B

Frame subcompact BS48

$

$

Not available

1

Cub Cadet YS-016-9000

Frame BS60

$

$

Not available

1

Cub Cadet YS-036-9000

Frame BS72

$

$

Not available

2

Cub Cadet YS-503-935B

Vertical support right BS48

$

$

Not available

2

Cub Cadet YS-006-9034

Vertical support right BS60 & BS72

$

$

Not available

3

Cub Cadet YS-503-936B

Vertical support left BS48

$

$

Not available

3

Cub Cadet YS-006-9033

Vertical support left BS60 & BS72

$

$

Not available

4

Cub Cadet YS-503-974B

Horizontal support BS48

$

$

Not available

4

Cub Cadet YS-006-9014

Horizontal support BS60 & BS72

$

$

Not available

5

Cub Cadet YS-503-937B

Inner spacer BS48

$

$

Not available

5

Cub Cadet YS-006-9016

Inner spacer BS60 & BS72
(Superseded to BF-006-9016)

$

$

Not available

6

Cub Cadet YS-006-9612

Bolt 3/4"x4.5" BS48

$

$

Not available

6

Cub Cadet YS-006-9021

Bolt 3/4"x5" BS60 & BS72

$

$

Not available

7

Cub Cadet YS-006-9017

Scarifier shank
(Superseded to BF-006-9017)

$

$

Not available

8

Cub Cadet YS-503-639B

Keeper pin

$

$

Not available

9

Cub Cadet YS-056-9019

Scraper blade BS48

$

$

Not available

9

Cub Cadet YS-016-9019

Scraper blade BS60

$

$

Not available

9

Cub Cadet YS-036-9019

Scraper blade BS72

$

$

Not available

10

Cub Cadet YS-503-651B

Plow bolt 5/8"x1 3/4"
(Superseded to BF-503-651B)

$

$

Not available

11

Cub Cadet YS-006-9023

Hitch pins BS60 & BS72
(Superseded to BF-006-9023)

$

$

Not available

12

Cub Cadet YS-006-9611

Bolt 3/4"x1 3/4" BS48

$

$

Not available

12

Cub Cadet YS-006-9613

Bolt 3/4"x2 1/4" BS60 & BS72

$

$

Not available

13

Cub Cadet YS-006-9027

Hex nut 3/4"

$

$

Not available

14

Cub Cadet YS-006-9026

Scarifier tip
(Superseded to BF-006-9026)

$

$

Not available

15

Cub Cadet YS-502-866B

Lock washer 5/8"
(Superseded to BF-502-866B)

$4.49

$

In Stock, Qty 11

0

16

Cub Cadet YS-502-865B

Hex Nut 5/8"
(Superseded to BF-502-865B)

$4.99

$

In Stock, Qty 20+

0

17

Cub Cadet YS-006-9614

Lock washer 3/4"

$

$

Not available

18

Cub Cadet YS-009-1507

R clip Ø4
(Superseded to BF-009-1507)

$

$

Not available

19

Cub Cadet YS-001-5240

R clip Ø3

$

$

Not available

20

Cub Cadet YS-943-008B

Hitch pins 7/8"x2" BS48 only
(Superseded to BF-943-008B)

$

$

Not available

21

Cub Cadet YS-502-859B

Lock washer 7/8" BS48 only
(Superseded to BF-502-859B)

$

$

Not available

22

Cub Cadet YS-502-860B

Hex nut 7/8" BS48 only
(Superseded to BF-502-860B)

$

$

Not available

Cub Cadet YS-950-210B

Decal "CAUTION - Read operator's manual"

Note: Not shown

$

$

Not available

Cub Cadet YS-950-319B

Decal "WARNING - To avoid injury"

Note: Not shown

$

$

Not available

Cub Cadet YS-950-321B

Decal "DANGER - Crushing hazard"

Note: Not shown

$

$

Not available

Cub Cadet YS-950-445B

Decal "CCY" large

Note: Not shown

$

$

Not available

Cub Cadet YS-950-940B

Decal "Quick Hitch Compatible"

Note: Not shown

$

$

Not available

Cub Cadet YS-950-449B

Decal "BS48"

Note: Not shown

$

$

Not available

Cub Cadet YS-950-450B

Decal "BS60"

Note: Not shown

$

$

Not available

Cub Cadet YS-950-466B

Decal "BS72"

Note: Not shown

$

$

Not available
