BS 436 (866027) - Briggs & Stratton Power Trowel (2011) Handle Group (866027C) Parts Diagram

Power Trowel

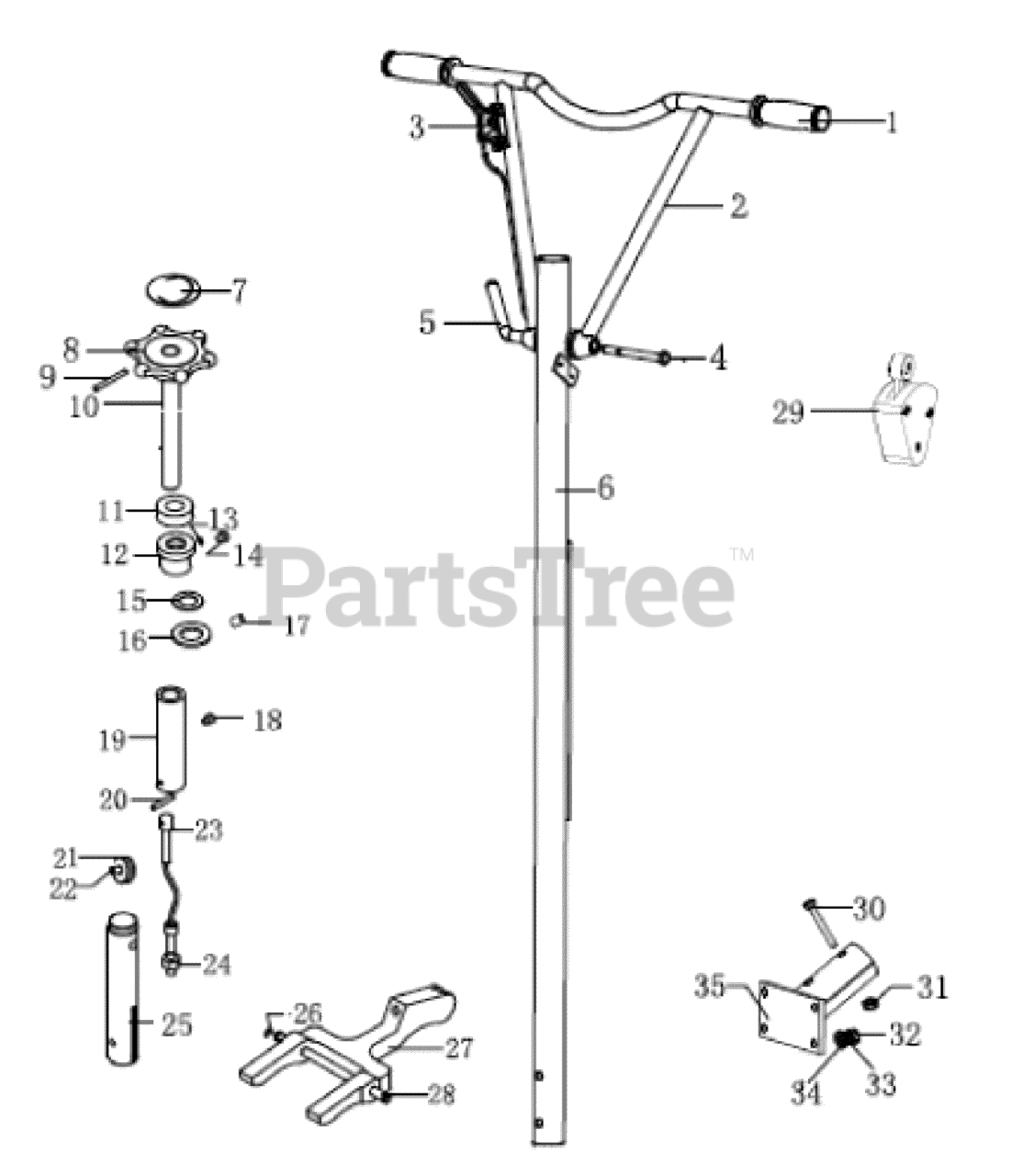

Handle Group (866027C) Parts Diagram

  • Title

1

Murray 700668

GRIP, Handle, Rubber

$

$

Currently unavailable

2

Murray 700670

HANDLE

$

$

Currently unavailable

3

Murray 700671

THROTTLE ASSEMBLY

$

$

Currently unavailable

4

Murray 700672

BOLT, M10 x 120

$

$

Currently unavailable

5

Murray 700673

HANDLE, Locking

$

$

Currently unavailable

6

Murray 700674

PIPE, Center Jointing

$

$

Currently unavailable

7

Murray 700675

LABEL, Return Direction

$

$

Currently unavailable

8

Murray 700676

KNOB

$

$

Currently unavailable

9

Murray 700677

SPRING PIN, 5 x 50

$

$

Currently unavailable

10

Murray 700678

ROD, Adjust Screw

$

$

Currently unavailable

11

Murray 700679

BEARING, Thrust

$

$

Currently unavailable

12

Murray 700680

BUSHING

$

$

Currently unavailable

13

Murray 700681

WASHER, Spring, d6

$

$

Currently unavailable

14

Murray 700682

SCREW, Pan Head Cross Recess, M6 x 8

$

$

Currently unavailable

15

Murray 700683

WASHER, Spring, Undee

$

$

Currently unavailable

16

Murray 700684

WASHER

$

$

Currently unavailable

17

Murray 700685

SCREW, Set, M8 x 10

$

$

Currently unavailable

18

Murray 700686

SCREW, Set, M6 x 6

$

$

Currently unavailable

19

Murray 700687

PIPE, Adjust Screw

$

$

Currently unavailable

20

Murray 700688

SPRING PIN, 5 x 35

$

$

Currently unavailable

21

Murray 700689

WHEEL, Roller

$

$

Currently unavailable

22

Murray 700690

PIN, B8 x 38

$

$

Currently unavailable

23

Murray 700691

TERMINAL, Steel Cable

$

$

Currently unavailable

24

Murray 700692

NUT, M8

$

$

Currently unavailable

25

Murray 700693

SHAFT, Roller Wheel

$

$

Currently unavailable

26

Murray 700694

WASHER, Split, d8

$

$

Currently unavailable

27

Murray 700695

SHIFTING YOKE

$

$

Currently unavailable

28

Murray 700696

SHAFT, Shifting Yoke

$2.99

$

Usually ships in 3-10 days

0

29

Murray 700697

STOPPING DEVICE ASSEMBLY

$

$

Currently unavailable

30

Murray 700698

BOLT, M10 x 70

$

$

Currently unavailable

31

Murray 700699

NUT, Lock, M10

$

$

Currently unavailable

32

Murray 700700

NUT, M10

$

$

Currently unavailable

33

Murray 700742

WASHER, Spring, 10

$

$

Currently unavailable

34

Murray 700724

WASHER, Flat, d10

$

$

Currently unavailable

35

Murray 700701

LINK, Handle

$

$

Currently unavailable

--

Murray 701575

WRENCH, Adjustable, 150 x 19

Note: (Not Illustrated)

$

$

Not available

--

Murray 701571

WRENCH, Open End, 13-19

Note: (Not Illustrated)

$

$

Currently unavailable

--

Murray 701572

WRENCH, Open End, 14-17

Note: (Not Illustrated)

$

$

Currently unavailable

--

Murray 701573

WRENCH, Open End, 9-11

Note: (Not Illustrated)

$

$

Currently unavailable

--

Murray 701569

SCREWDRIVER, Cross

Note: (Not Illustrated)

$

$

Not available

--

Murray 701532

SPARK PLUG SOCKET

Note: (Not Illustrated)

$

$

Currently unavailable

--

Murray 701567

HEXAGON SOCKET SPANNER, 3/16

Note: (Not Illustrated)

$

$

Not available

--

Murray 701568

HEXAGON SOCKET SPANNER, 4mm

Note: (Not Illustrated)

$

$

Currently unavailable

--

Murray 701528

CABLE TIE

Note: (Not Illustrated)

$

$

Currently unavailable
