BS 175 (45-01873) - Husqvarna Tow-Behind Broadcast Spreader (2008-01) 175# Broadcast Spreader Parts Diagram

Tow-Behind Broadcast Spreader

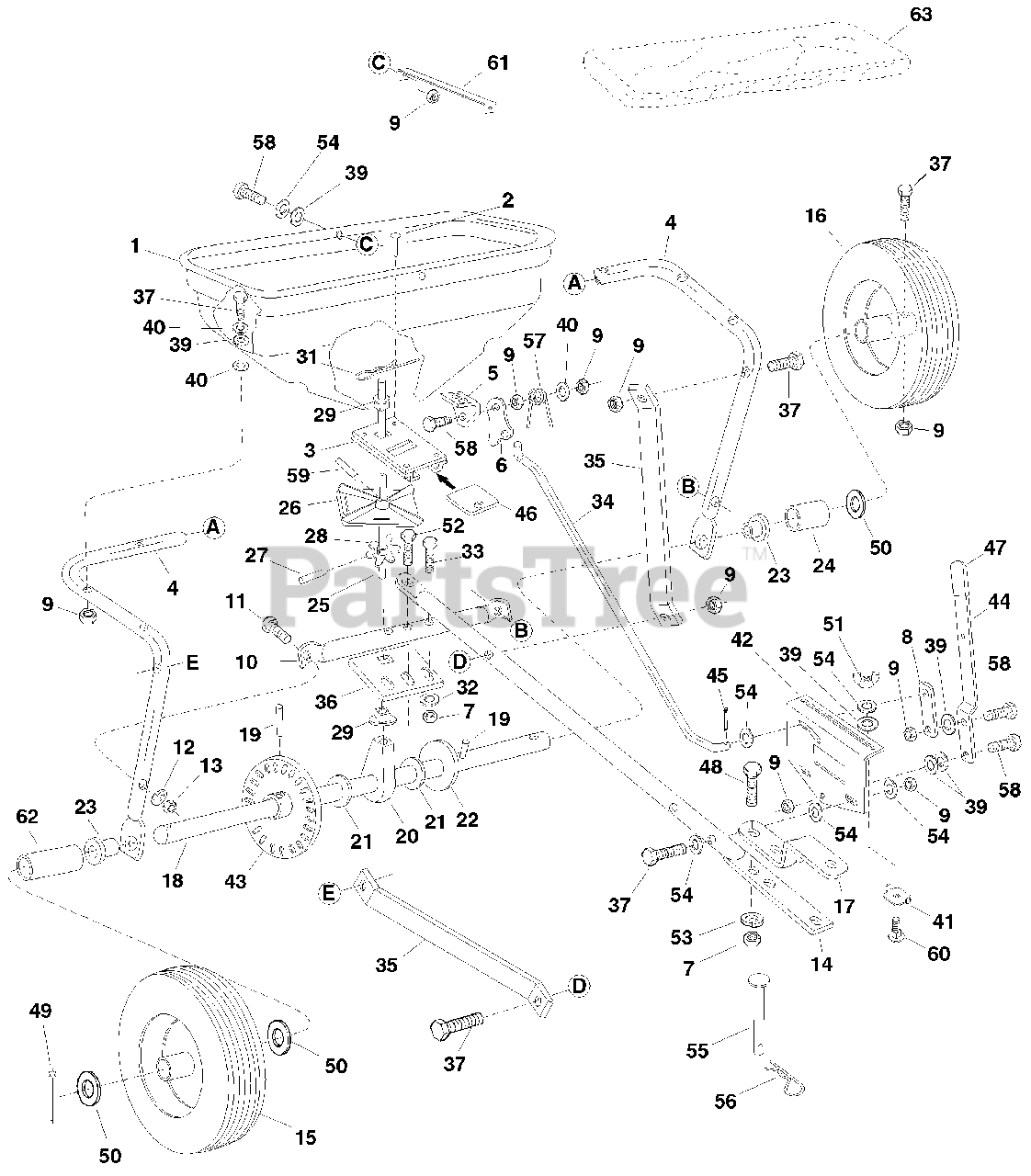

175# Broadcast Spreader Parts Diagram

  • Title
1

$

$

Currently unavailable

2

Husqvarna 43882

Rivet, Stainless

$

$

Currently unavailable

3

Husqvarna 62482

Ass'y, Guide Closure

$

$

Currently unavailable

4

Husqvarna 44462

Tube, Frame

$

$

Currently unavailable

5

Husqvarna 23753

Slide Gate Angle Bracket

$

$

Currently unavailable

6

Husqvarna 23758

Slide Gate Bracket

$

$

Currently unavailable

7

Husqvarna 43082

Nut, Hex Lock 3/8-16 Thd.

$

$

Not available

8

Husqvarna 24857

Flow Control Link

$

$

Currently unavailable

9

Husqvarna 43013

Nut, Hex Lock 1/4-20 Thd.

$

$

Currently unavailable

10

Husqvarna 43808

Tube, Crossover

$

$

Currently unavailable

11

Husqvarna 43084

Bolt, Hex 5/16-18 x 1-3/4" Lg.

$

$

Currently unavailable

12

Husqvarna 43086

Lock Washer, 5/16"

$

$

Not available

13

Husqvarna 43064

Nut, Hex Lock, 5/16-18 Thd.

$

$

Not available

14

Husqvarna 44487

Tube, Hitch

$

$

Currently unavailable

15

Husqvarna 43008

Wheel, Idler

$

$

Currently unavailable

16

Husqvarna 44459

Wheel, Drive

$

$

Currently unavailable

17

Husqvarna 23687

Bracket, Hitch

$

$

Currently unavailable

18

Husqvarna 25017

Shaft, Axle

$

$

Currently unavailable

19

Husqvarna 43851

Pin, Spring 3/16" Dia. x 1-1/4" Lg.

$

$

Currently unavailable

20

Husqvarna 43871

Bushing, Axle Shaft

$

$

Currently unavailable

21

1540032

Washer, Flat .78 I.D.

$

$

Not available

22

1540162

Washer, Flat 1/2"

$

$

Not available

23

Husqvarna 47615

Bearing, Flange

$

$

Currently unavailable

24

Husqvarna 48665

Spacer Tube

Note: (Short)

$

$

Currently unavailable

25

Husqvarna 25305

Shaft, Sprocket

$

$

Currently unavailable

26

Husqvarna 4367

Spreader Plate

$

$

Currently unavailable

27

Husqvarna 43850

Pin, Spring 1/8" Dia. x 5/8".

$

$

Currently unavailable

28

Husqvarna 44468

Sprocket, 6 Tooth

$

$

Currently unavailable

29

Husqvarna 44285

Bushing, Delrin

$

$

Currently unavailable

31

Husqvarna 48934

Hairpin, Agitator

$

$

Currently unavailable

32

Husqvarna 43070

Washer, Flat 3/8"

$

$

Not available

33

Husqvarna 41576

Bolt, Hex 3/8-16 x 1-3/4" Lg.

$

$

Currently unavailable

34

Husqvarna 44469

Rod, Flow Control

$

$

Currently unavailable

35

Husqvarna 23525

Brace, Hitch

$

$

Currently unavailable

36

Husqvarna 23762

Shaft Support Plate

$

$

Currently unavailable

37

1509069

Bolt, Hex 1/4-20 x 1-3/4"

$

$

Not available

39

1543069

Washer, Nylon

$

$

Not available

40

Husqvarna 43088

Washer, Flat 1/4" Std.

$

$

Currently unavailable

41

Husqvarna 24858

Stop, Adjustable

$

$

Not available

42

Husqvarna 24855

Bracket, Flow Control Mount

$

$

Currently unavailable

43

Husqvarna 62474

Gear Assembly

$

$

Currently unavailable

44

Husqvarna 24859

Flow Control Arm

$

$

Currently unavailable

45

Husqvarna 44101

Cotter Pin 3/32" x 3/4" Lg.

$

$

Currently unavailable

46

Husqvarna 23533

Plate, Closure

$

$

Currently unavailable

47

Husqvarna 43848

Grip, Flow Control Arm

$

$

Currently unavailable

48

Husqvarna 43087

Bolt, Hex 3/8-16 x 1-1/4" Lg.

$

$

Not available

49

Husqvarna 43093

Pin, Cotter 1/8" x 1-1/2"

$

$

Currently unavailable

50

Husqvarna 43009

Washer, Flat 1-5/8" O.D.

$

$

Currently unavailable

51

Husqvarna 47141

Wing Nut, Nylon

$

$

Currently unavailable

52

Husqvarna 43054

Bolt, Hex 3/8-16 x 2" Lg.

$

$

Not available

53

Husqvarna 43003

Lock Washer, 3/8"

$

$

Not available

54

Husqvarna R19111116

Washer, 5/16 SAE

$

$

Currently unavailable

55

Husqvarna 47623

Hitch Pin

$

$

Currently unavailable

56

Husqvarna 43343

Hair Cotter Pin, 1/8"

$

$

Not available

57

Husqvarna 44566

Spring, Torsion

$

$

Currently unavailable

58

Husqvarna 43012

Bolt, Hex 1/4-20 x 3/4" Lg.

$

$

Not available

59

Husqvarna 46055

Pin, Spring 1/8" Dia. x 1" Lg.

$

$

Currently unavailable

60

Husqvarna 44950

Bolt, Carriage 1/4-20 x 3/4"

$

$

Currently unavailable

61

Husqvarna 23697

Strap, Hopper

$

$

Currently unavailable

62

Husqvarna 44474

Spacer Tube

Note: (Long)

$

$

Currently unavailable

63

Husqvarna 43962

Vinyl Cover

Note: (Optional)

$

$

Currently unavailable

Husqvarna 48666

Owner's Manual

$

$

Currently unavailable
