BS 150 WT (866022) - Briggs & Stratton Plate Compactor (2011) Main Unit (866022_866023) Parts Diagram

Plate Compactor

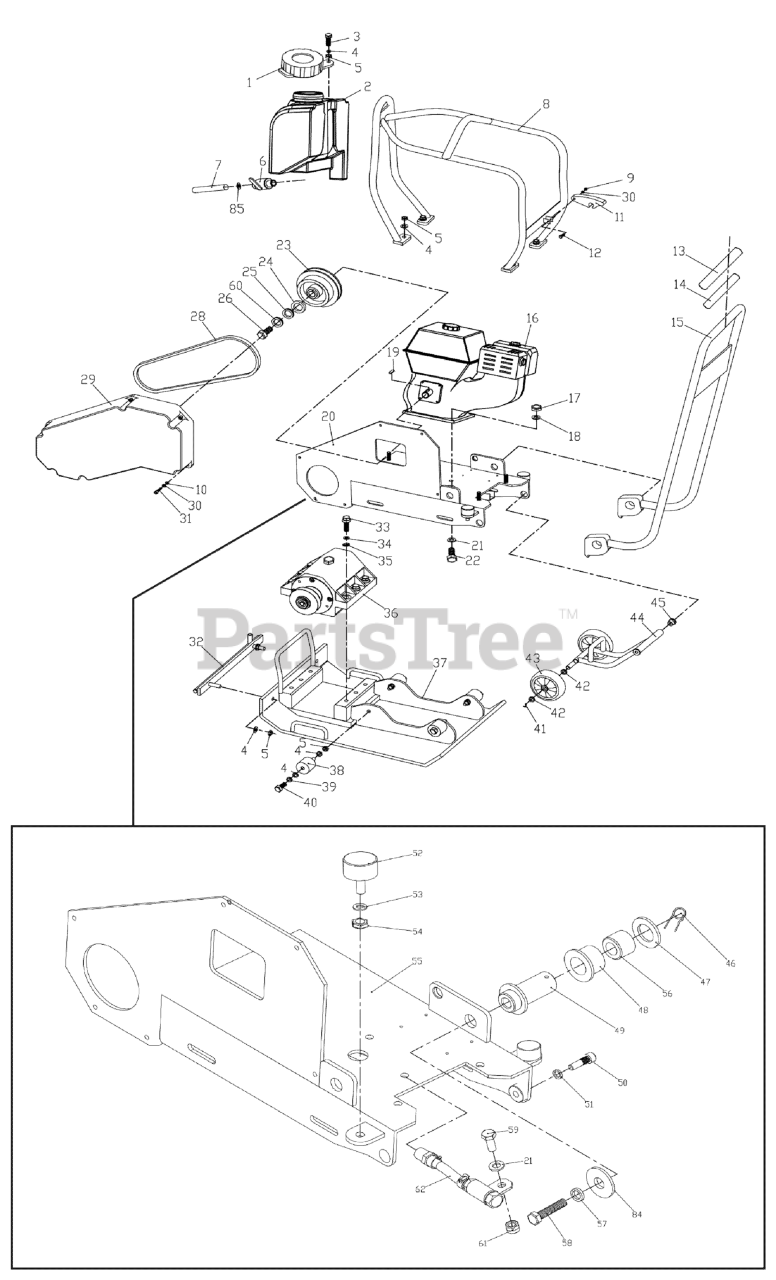

Main Unit (866022_866023) Parts Diagram

  • Title

1

Murray 700309

COVER, Water Tank

Note: (Used on Model 866022 Only)

$

$

Currently unavailable

2

Murray 700310

WATER TANK

Note: (Used on Model 866022 Only)

$

$

Currently unavailable

3

Murray 700311

BOLT, Hex Head, M10 x 30

Note: (Used on Model 866022 Only)

$

$

Currently unavailable

4

Murray 700500

WASHER, 10

$

$

Currently unavailable

5

Murray 700501

NUT, Hex Lock, 10

$

$

Currently unavailable

6

Murray 700312

BALL VALVE, Brass, 1/4"

Note: (Used on Model 866022 Only)

$

$

Currently unavailable

7

Murray 700459

HOSE, Rubber, 14 x 3

Note: (Used on Model 866022 Only)

$

$

Currently unavailable

8

Murray 700460

HOOK, Guard

$

$

Currently unavailable

9

Murray 700461

NUT, Hex Lock, M6

$

$

Currently unavailable

10

Murray 700462

WASHER, Spring, 6

$

$

Currently unavailable

11

Murray 700463

CLIP, Rubber

$

$

Currently unavailable

12

Murray 700464

BOLT, Hex Head, M6 x 35

$

$

Currently unavailable

13

Murray 700465

FOAM, Handle

$

$

Currently unavailable

14

Murray 700466

SHEATH, Handle

$

$

Currently unavailable

15

Murray 700467

HANDLE

$

$

Currently unavailable

16

Murray 700468

ENGINE, Briggs & Stratton

$

$

Currently unavailable

17

Murray 700506

NUT, Hex Lock, M8

$

$

Currently unavailable

18

Murray 700471

WASHER, Flat, 8

$

$

Currently unavailable

19

Murray 700469

KEY, 5 x 32

$

$

Currently unavailable

20

Murray 700470

BASE ASSEMBLY, Engine

$

$

Currently unavailable

21

Murray 700471

WASHER, Flat, 8

$

$

Currently unavailable

22

Murray 700472

BOLT, Hex Head, M8 x 45

$

$

Currently unavailable

23

Murray 700473

CLUTCH ASSEMBLY

$

$

Currently unavailable

24

Murray 700474

BUSHING, Key

$

$

Currently unavailable

25

Murray 700475

GASKET, Shaft

$

$

Not available

26

Murray 700476

BOLT, Hex Head, M8 x 30

$

$

Not available

28

Murray 700477

V-BELT, Red

$

$

Currently unavailable

29

Murray 700478

COVER, Belt, PC4012

$

$

Currently unavailable

30

Murray 700479

WASHER, Flat, 6

$

$

Currently unavailable

31

Murray 700480

SCREW, Hexagon Socket, M6 x 25

$2.99

$

Usually ships in 3-10 days

0

32

Murray 700482

WATER HOSE ASSEMBLY

Note: (Used on Model 866022 Only)

$

$

Currently unavailable

33

Murray 700483

BOLT, Hex Head, M12 x 40

$

$

Currently unavailable

34

Murray 700498

WASHER, Spring, 12

$

$

Currently unavailable

35

Murray 700484

WASHER, Flat, 12

$

$

Currently unavailable

36

Murray 700485

ECCENTRIC BOX ASSEMBLY

$

$

Currently unavailable

37

Murray 700486

BASE PLATE ASSEMBLY

$

$

Currently unavailable

38

Murray 700487

VIBRATION Mount, Rubber, PC4012

$

$

Currently unavailable

39

Murray 700504

WASHER, Spring, 10

$

$

Currently unavailable

40

Murray 700505

BOLT, Hex Head, M10 x 20

$

$

Currently unavailable

41

Murray 700488

SPLIT PIN

$

$

Currently unavailable

42

Murray 700489

WASHER, Nylon, PC4012

$

$

Currently unavailable

43

Murray 700490

WASHER, Nylon, PC4012

$

$

Not available

44

Murray 700491

FRAME, Road Wheel

$2.99

$

Usually ships in 3-10 days

0

45

Murray 700492

BUSHING, Nylon, PC4012

Note: (road wheel assembly)

$

$

Not available

46

Murray 700493

RETAINER RING

$

$

Currently unavailable

47

Murray 700494

WASHER

$

$

Currently unavailable

48

Murray 700495

BUSHING, Nylon

$

$

Currently unavailable

49

Murray 700496

SHAFT

$

$

Currently unavailable

50

Murray 700497

BOLT, Locking

$

$

Currently unavailable

51

Murray 700498

WASHER, Spring, 12

$

$

Currently unavailable

52

Murray 700499

VIBRATION Mount, Rubber

$

$

Currently unavailable

53

Murray 700500

WASHER, Flat, 10

$

$

Currently unavailable

54

Murray 700501

NUT, Hex Lock, 10

$

$

Currently unavailable

55

Murray 700502

BASE, Engine

$

$

Currently unavailable

56

Murray 700503

VIBRATION BUSHING ASSEMBLY

$

$

Currently unavailable

57

Murray 700504

WASHER, Spring, 10

$

$

Currently unavailable

58

Murray 700505

BOLT, Hex Head, M10 x 20

$

$

Currently unavailable

59

Murray 700508

BOLT, Hex Head, M8 x 25

Note: (Used on Model 866022 Only)

$

$

Currently unavailable

59

Murray 700524

BOLT, Hex Head, M8 x 20

Note: (Used on Model 866023 Only)

$

$

Currently unavailable

60

Murray 700509

WASHER, Spring, 8

$

$

Currently unavailable

61

Murray 700506

NUT, Hex Lock, M8

$

$

Currently unavailable

62

Murray 700507

OIL DRAIN HOSE ASSEMBLY

$

$

Currently unavailable

84

Murray 700529

WASHER

$

$

Currently unavailable

85

Murray 701472

CLAMP

Note: (Used on Model 866022 Only)

$

$

Currently unavailable

--

Murray 701532

SPARK PLUG SOCKET

Note: (Not Illustrated)

$

$

Currently unavailable

--

Murray 701523

WRENCH, Open End, 16-18

Note: (Not Illustrated)

$

$

Currently unavailable
