BS 14 (866026) - Murray Concrete Cutter (2011) Base Assembly (866026) Parts Diagram

Concrete Cutter

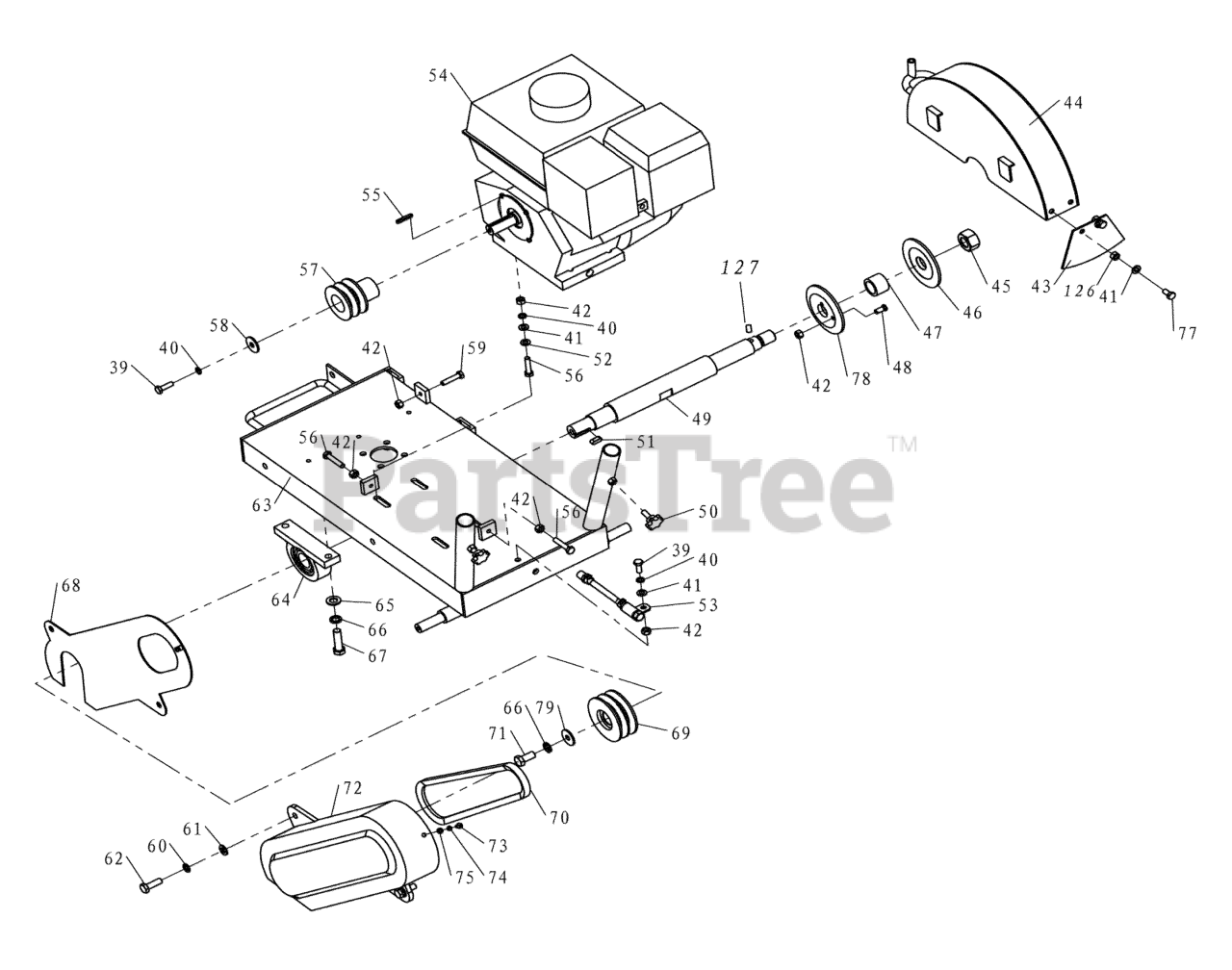

Base Assembly (866026) Parts Diagram

  • Title
39

Murray 700634

BOLT, M8 x 25

$

$

Currently unavailable

40

Murray 700635

WASHER, Spring, 8

$

$

Currently unavailable

41

Murray 700636

WASHER, Flat, 8

$

$

Currently unavailable

42

Murray 700637

NUT, M8

$

$

Not available

43

Murray 700638

FENDER, Rubber

$

$

Not available

44

Murray 700639

COVER, Blade

$

$

Currently unavailable

45

$

$

Currently unavailable

46

Murray 700641

BLADE FLANGE

$

$

Currently unavailable

47

Murray 700642

BUSHING, Blade

$

$

Currently unavailable

48

Murray 700643

BOLT, Blade Location

$

$

Currently unavailable

49

$17.99

$

Usually ships in 3-10 days

0

50

Murray 700645

KNOB BOLT

$

$

Currently unavailable

51

$

$

Not available

52

Murray 700647

WASHER

$

$

Not available

53

Murray 702137

DRAIN PIPE ASSEMBLY

$2.49

$

Usually ships in 3-10 days

0

54

Murray 700468

ENGINE, Briggs & Stratton

$

$

Currently unavailable

55

$

$

Currently unavailable

56

Murray 700648

BOLT, M8 x 45

$

$

Currently unavailable

57

Murray 700649

PULLEY, Engine

$

$

Currently unavailable

58

Murray 700650

KEY, Bushing

$

$

Currently unavailable

59

Murray 700651

NUT, M10

$

$

Currently unavailable

60

Murray 700652

WASHER, Spring, 10

$

$

Currently unavailable

61

Murray 700653

WASHER, Flat, 10

$

$

Currently unavailable

62

Murray 700654

BOLT, M10 x 30

$

$

Not available

63

Murray 700655

BASE PLATE

$

$

Not available

64

Murray 700656

BEARING, NSK206

$

$

Currently unavailable

65

Murray 700657

WASHER, Flat, 12

$

$

Currently unavailable

66

Murray 700658

WASHER, Spring, 12

$

$

Not available

67

Murray 700659

BOLT, M12 x 45

$15.99

$

Usually ships in 3-10 days

0

68

Murray 700660

COVER, Belt, Inner

$

$

Currently unavailable

69

Murray 700661

PULLY, Belt

$

$

Currently unavailable

70

$

$

Currently unavailable

71

Murray 700663

BOLT, M12 x 25

$

$

Currently unavailable

72

Murray 700664

COVER, Belt, Outer

$

$

Currently unavailable

73

Murray 700665

SCREW, Cross Recess Head

$

$

Currently unavailable

74

Murray 700666

WASHER, Spring, 6

$

$

Currently unavailable

75

Murray 700667

WASHER, Flat, 6

$

$

Currently unavailable

78

Murray 701542

BLADE FLANGE

$

$

Currently unavailable

79

Murray 702133

WASHER, Blade Shaft

$

$

Currently unavailable

126

Murray 702134

NUT, Nylon, M8

$

$

Currently unavailable

127

Murray 702135

PIN, 6 x 12

$

$

Currently unavailable
