Brush Mower - BCS America Brush Mower Attachment (1995 & After) 20", 26" & 32" Brush Mower, Deck & Blade Assembly (Gen #5) Parts Diagram

Brush Mower Attachment

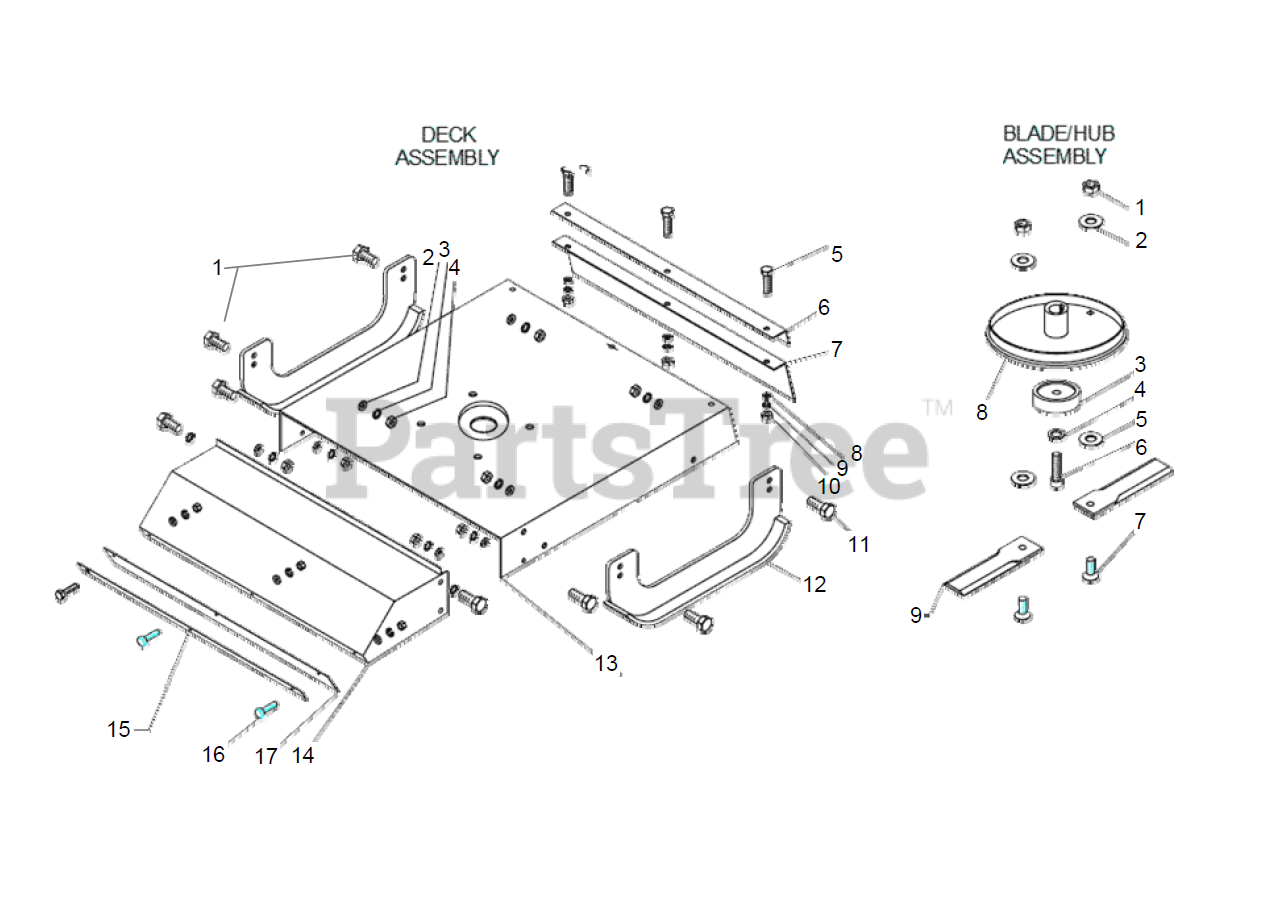

20", 26" & 32" Brush Mower, Deck & Blade Assembly (Gen #5) Parts Diagram

  • Title
Deck1

BCS America 40100077

BOLT M8X20

Note:

$0.99

$

Usually ships in 5-8 days

0

Deck2

BCS America 40300003

FLAT WASHER M10

Note:

$4.49

$

Usually ships in 5-8 days

0

Deck3

BCS America 40300027

WASHER

Note:

$

$

Not available

Deck4

BCS America 40200005

WASHER

Note:

$

$

Not available

Deck5

BCS America 40100076

BOLT M8X28

Note:

$4.49

$

Usually ships in 5-8 days

0

Deck6

BCS America SC170VD

RETAINER RUBBER FLAP 21�

Note:

$61.99

$

Usually ships in 5-8 days

0

Deck6

BCS America SC171VD

RETAINER RUBBER FLAP 26�/32�

Note:

$64.99

$

Usually ships in 5-8 days

0

Deck6

BCS America SC226VD

RETAINER RUBBER FLAP 26�/32�

Note:

$119.99

$

Usually ships in 5-8 days

0

Deck7

BCS America SC174D

REAR RUBBER FLAP 20�/21�

Note:

$136.99

$

Usually ships in 5-8 days

0

Deck7

BCS America SC175D

REAR RUBBER FLAP 26�

Note:

$119.99

$

Usually ships in 5-8 days

0

Deck7

BCS America SC229D

REAR RUBBER FLAP 32�

Note:

$152.99

$

In Stock, only 1 left!

0

Deck8

BCS America 40300002

FLAT WASHER M8 SPRING

Note:

$4.49

$

Usually ships in 5-8 days

0

Deck9

BCS America 40300011

WASHER M8 FLAT

Note:

$5.49

$

Usually ships in 5-8 days

0

Deck10

BCS America 40300013

WASHER 11-30 BOLT

Note:

$3.99

$

Usually ships in 5-8 days

0

Deck11

BCS America 40100043

M10X25

Note:

$

$

Not available

Deck12

BCS America SC107VD

SKID

Note:

$124.99

$

Usually ships in 5-8 days

0

Deck13

BCS America SC100VD

FRAME 21�

Note:

$527.99

$

Usually ships in 5-8 days

0

Deck13

BCS America SC101VD

FRAME 26�

Note:

$650.99

$

Usually ships in 5-8 days

0

Deck13

BCS America SC102VD

FRAME 32�

Note:

$767.99

$

Usually ships in 5-8 days

0

Deck14

BCS America SC075AVD

FRONT PROTECTION 21�

Note:

$132.99

$

Usually ships in 5-8 days

0

Deck14

BCS America SC075BVD

FRONT PROTECTION 26�

Note:

$281.99

$

Usually ships in 5-8 days

0

Deck14

BCS America SC075CVD

FRONT PROTECTION 32�

Note:

$336.99

$

Usually ships in 5-8 days

0

Deck15

BCS America SC168VD

RETAINER RUBBER FLAP

Note:

$48.99

$

Usually ships in 5-8 days

0

Deck15

BCS America SC169VD

RETAINER RUBBER FLAP

Note:

$43.99

$

Usually ships in 5-8 days

0

Deck15

BCS America SC227VD

RETAINER RUBBER FLAP

Note:

$61.99

$

Usually ships in 5-8 days

0

Deck16

BCS America 40100076

BOLTM8X25

Note:

$4.49

$

Usually ships in 5-8 days

0

Deck17

BCS America SC172D

FRONT RUBBER FLAP 21�

Note:

$129.99

$

Usually ships in 5-8 days

0

Deck17

BCS America SC173D

FRONT RUBBER FLAP 26�

Note:

$114.99

$

Usually ships in 5-8 days

0

Deck17

BCS America SC228D

FRONT RUBBER FLAP 32�

Note:

$114.99

$

Usually ships in 5-8 days

0

Blade1

BCS America 40200014

HEX NUT M12 FLANGE NY-LOCK

Note:

$

$

Not available

Blade2

BCS America SC309D

WASHER

Note:

$4.49

$

Usually ships in 5-8 days

0

Blade3

BCS America SC401VD

PLUG M10

Note:

$11.99

$

Usually ships in 5-8 days

0

Blade4

BCS America 40300027

WASHER M10

Note:

$

$

Not available

Blade5

BCS America SC182D

SPACER BLADE

Note:

$

$

Not available

Blade6

BCS America 40100043

BOLD M10X25

Note:

$

$

Not available

Blade7

BCS America SC181D

BLADE PIN

Note:

$

$

Not available

Blade8

BCS America SC108VD

BLADE HOLDER 21�/26�

Note:

$249.99

$

Usually ships in 5-8 days

0

Blade8

BCS America SC108VD

BLADE HOLDER 21�/26�

Note:

$249.99

$

Usually ships in 5-8 days

0

Blade8

BCS America SC109VD

BLADE HOLDER 32�

Note:

$271.99

$

Usually ships in 5-8 days

0

Blade9

BCS America SC179D

BLADE 20� HIGH LIFT

Note:

$27.99

$

Usually ships in 5-8 days

0

Blade9

BCS America SC180D

BLADE 26� & 32�

Note:

$51.99

$

In Stock, only 2 left!

0

Blade9

BCS America SC180D

BLADE 26� & 32�

Note:

$51.99

$

In Stock, only 2 left!

0
