Brush Mower - BCS America Brush Mower Attachment (1982 - 1995) 30" Mower Deck (SN: 120300 & Above) Parts Diagram

Brush Mower Attachment

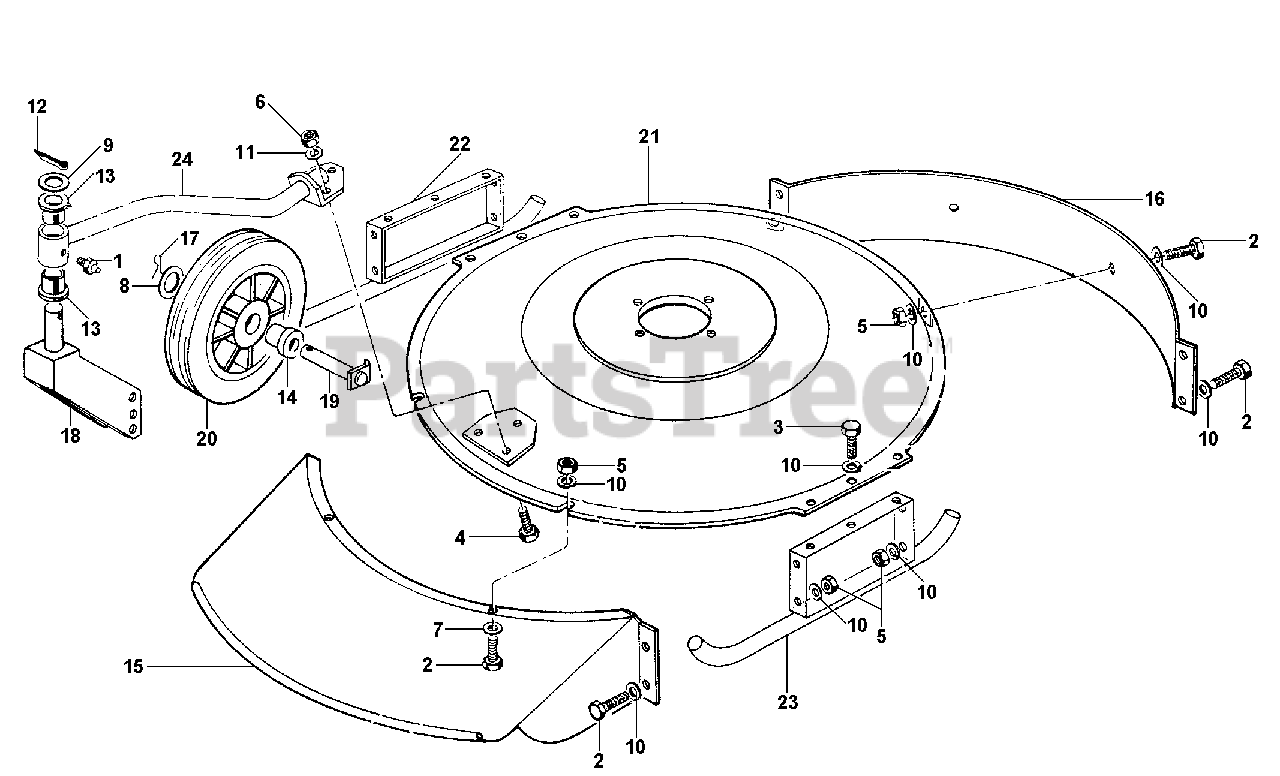

30" Mower Deck (SN: 120300 & Above) Parts Diagram

  • Title

1

BCS America 300.00001

LUBRICATOR M10

$

$

Not available

2

BCS America 31112150

SCREW M8X20

$1.49

$

In Stock, only 4 left!

0

3

BCS America 311.12151

SCREW TE M8X25

$1.49

$

In Stock, Qty 5

0

4

BCS America 311.12211

SCREW TE M10X30

$1.49

$

Usually ships in 5-8 days

0

5

BCS America 31241080

NUT, SELF LOCKING M8

$0.99

$

In Stock, Qty 11

0

6

BCS America 31241100

NUT, SELF LOCKING M10

$1.49

$

In Stock, only 2 left!

0

7

BCS America 314.11084

WASHER, FLAT

$0.99

$

In Stock, only 4 left!

0

8

BCS America 31411170

WASHER, FLAT

$1.49

$

Usually ships in 5-8 days

0

9

BCS America 31412210

WASHER, FLAT

$1.99

$

Usually ships in 5-8 days

0

10

BCS America 314.23084

WASHER, LOCK

$0.99

$

In Stock, Qty 10

0

11

BCS America 314.23105

WASHER, LOCK 10.5

$1.49

$

In Stock, Qty 5

0

12

BCS America 341.10042

COTTER PIN 4X30

$0.99

$

Usually ships in 5-8 days

0

13

BCS America 552.43904

BUSHING

$16.99

$

Usually ships in 5-8 days

0

14

BCS America 552.47373

SMALL WHEEL BUSHING

$19.99

$

Usually ships in 5-8 days

0

15

BCS America 561.58047

FRONT END

$838.99

$

Usually ships in 5-8 days

0

16

BCS America 561.58048

REAR CLAMP

$

$

Not available

17

BCS America 580.02052

PIN

$1.99

$

In Stock, only 3 left!

0

18

BCS America 590.47357

FORK

$133.99

$

Usually ships in 5-8 days

0

19

BCS America 59047370

SMALL WHEEL PIN

$49.99

$

Usually ships in 5-8 days

0

20

BCS America 590.47377

SMALL WHEEL

$116.99

$

Usually ships in 5-8 days

0

21

BCS America 590.58035

MOWER PLATE

$

$

Not available

22

BCS America 590.58041

RIGHT SIDE SKID

$254.99

$

Usually ships in 5-8 days

0

23

BCS America 590.58042

LEFT SIDE SKID

$254.99

$

Usually ships in 5-8 days

0

24

BCS America 59058050

CASTER SUPPORT

$211.99

$

Usually ships in 5-8 days

0
