BRS270CKC36000 - Exmark 36" Power Broom, Kohler CH270 (SN: 404314159 - 406294344) (2019) Wheel Clutch Sprocket Assembly Parts Diagram

36" Power Broom, Kohler CH270

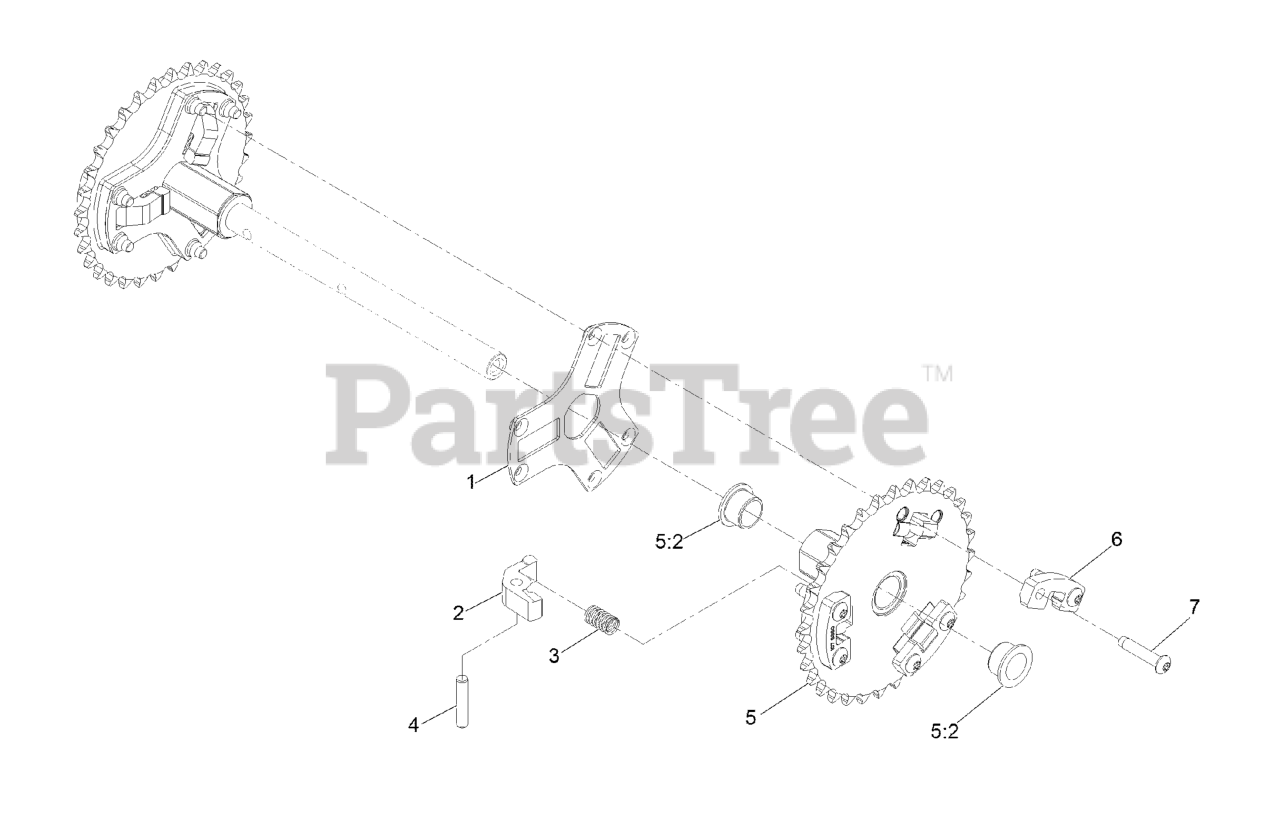

Wheel Clutch Sprocket Assembly Parts Diagram

  • Title

1

Exmark 136-7318

RETAINER-PAWL, PIN

$6.49

$

Usually ships in 3-6 days

0

2

Exmark 107-8879

PAWL-CLUTCH

$7.99

$

Usually ships in 3-6 days

0

3

Exmark 107-8885

SPRING-COMPRESSION

$2.99

$

In Stock, Qty 5

0

4

Exmark 107-8899

PIN-DOWEL

Note: Apply light coat of oil before assembly.

$2.99

$

Usually ships in 3-6 days

0

5

Exmark 107-8895

32T SPROCKET ASM

$93.99

$

Usually ships in 3-6 days

0

5:2

Exmark 108-2973

BUSHING-FLANGE

$6.49

$

Usually ships in 3-6 days

0

6

Exmark 107-8880

SUPPORT-PAWL

$6.49

$

Usually ships in 3-6 days

0

7

Exmark 108-0035

SCREW-TTH, THREAD ROLLING

$2.99

$

Usually ships in 3-6 days

0
