BRS270CKC36000 - Exmark 36" Power Broom, Kohler CH270 (SN: 402082300 - 404314158) (2018) Control Panel Assembly Parts Diagram

36" Power Broom, Kohler CH270

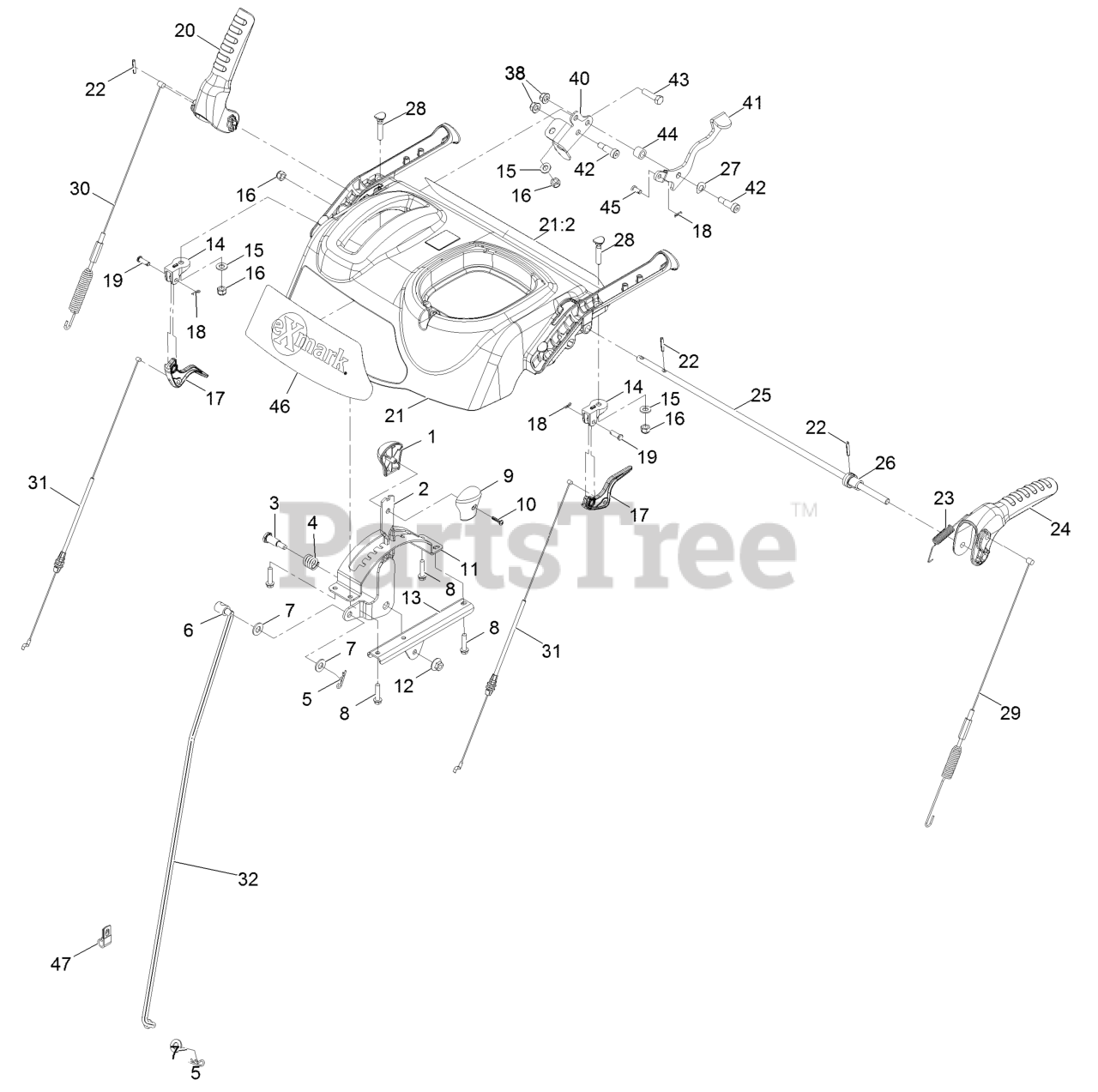

Control Panel Assembly Parts Diagram

  • Title

1

Exmark 106-4423

Knob-Shift, RH

$7.99

$

In Stock, only 4 left!

0

2

Exmark 106-7278-03

Selector-Speed

$12.99

$

Usually ships in 3-6 days

0

3

Exmark 63-2650

Screw-Shoulder

$7.99

$

In Stock, only 2 left!

0

4

Exmark 136-7121

Spring-Compression

$2.99

$

Usually ships in 3-6 days

0

5

Exmark 3290-307

Pin-Cotter
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

6

Exmark 136-7193

Trunnion-Rod

$7.99

$

In Stock, Qty 8

0

7

Exmark 3256-24

Washer-3/8 SAE

$0.99

$

In Stock, Qty 20+

0

8

Exmark 46-8092

Screw-Plastite
(Superseded to 137-3101)

$1.49

$

In Stock, Qty 20+

0

9

Exmark 105-9999

Knob-Shift, LH

$7.99

$

In Stock, only 4 left!

0

10

Exmark 94-4496

Screw-PPH

$1.49

$

In Stock, Qty 20+

0

11

Exmark 106-7277-03

Guide-Selector, Speed

$7.99

$

Usually ships in 3-6 days

0

12

Exmark 32128-13

Nut-HF

$2.99

$

Usually ships in 3-6 days

0

13

Exmark 130-9775-03

Bracket-Selector, Speed

$10.99

$

Usually ships in 3-6 days

0

14

Exmark 105-9980

Mount-Clutch, Lever

$8.49

$

Usually ships in 3-6 days

0

15

Exmark 3256-70

Washer-Flat

$1.49

$

In Stock, Qty 8

0

16

Exmark 3296-72

Nut-Nyloc 5/16-18

$2.99

$

In Stock, Qty 20+

0

17

Exmark 106-4505

Lever-Clutch

$8.99

$

In Stock, Qty 6

0

18

Exmark 108-2992

Pin-Hair

$1.49

$

In Stock, only 4 left!

0

19

Exmark 1-808265

Pin-Clevis 1/4 X 3/4

$3.49

$

In Stock, only 2 left!

0

20

Exmark 106-4413

Lever-Auger

$35.99

$

In Stock, only 1 left!

0

21

Exmark 116-7667

Panel, Control W/Decal CE Xb

$177.99

$

Usually ships in 3-6 days

0

21:2

Exmark 116-7668

Decal-Control Panel Back, Tss (CE Xb)

$16.99

$

Usually ships in 3-6 days

0

22

Exmark 32121-125

Pin-Spring

$0.99

$

In Stock, only 3 left!

0

23

Exmark 136-7315

Spring-Tension

$6.49

$

In Stock, only 2 left!

0

24

Exmark 106-4410

Lever-Traction

$26.99

$

Usually ships in 3-6 days

0

25

Exmark 136-7100

Rod-Lockout

$27.99

$

Usually ships in 3-6 days

0

26

Exmark 107-1043

Cam-Lockout

$25.99

$

Usually ships in 3-6 days

0

27

Exmark 3290-212

Washer-Spring

$3.99

$

Usually ships in 3-6 days

0

28

Exmark 107-3018

Screw-Handle

$3.49

$

In Stock, only 3 left!

0

29

Exmark 120-0132

Cable-Traction

$27.99

$

In Stock, Qty 20+

0

30

Exmark 115-5685

Cable-Auger

$46.99

$

In Stock, Qty 5

0

31

Exmark 107-8896

Cable-Clutch

$29.99

$

In Stock, only 2 left!

0

32

Exmark 136-7109

Rod-Shift

$26.99

$

Usually ships in 3-6 days

0

38

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

40

Exmark 116-7669

Bracket-Lever, Broom Angle

$20.99

$

Usually ships in 3-6 days

0

41

Exmark 116-7670

Lever-Thumb, Broom Angle

$25.99

$

Usually ships in 3-6 days

0

42

Exmark 119-6915

Screw-Shoulder, HSH

$10.99

$

Usually ships in 3-6 days

0

43

Exmark 322-6

Screw-HH 5/16-18 X 1 1/4

$4.49

$

In Stock, Qty 20+

0

44

Exmark 116-7793

Tube-Spacer

$5.99

$

Usually ships in 3-6 days

0

45

Exmark 146319

Pin-Clevis 1/4 X 1/2

$2.99

$

Usually ships in 3-6 days

0

46

Exmark 116-7786

Decal-Exmark Logo

$18.99

$

Usually ships in 3-6 days

0

47

Exmark 1-323229

Clip-Loom 3/8

$2.99

$

Usually ships in 3-6 days

0
