BRS270CKC36000 - Exmark 36" Power Broom, Kohler CH270 (SN: 402082300 - 404314158) (2018) Clutch Drive Assembly Parts Diagram

36" Power Broom, Kohler CH270

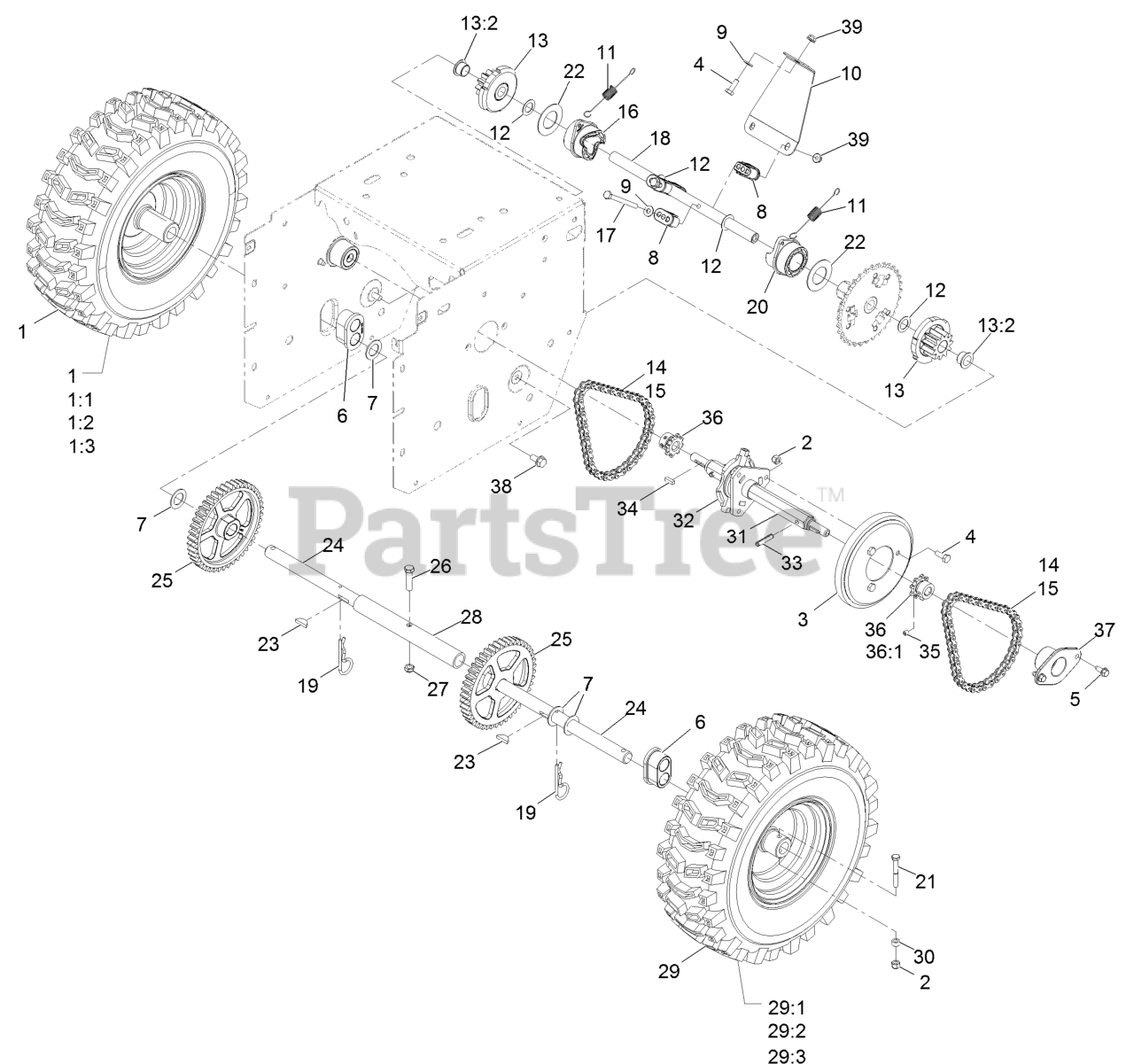

Clutch Drive Assembly Parts Diagram

  • Title

1

RH Wheel And Tire ASM

$

$

Not available

1:1

Exmark 107-3042

Tire

$84.99

$

Usually ships in 3-6 days

0

1:2

Exmark 107-3043

Rim-Tire

$142.99

$

Usually ships in 3-6 days

0

1:3

Exmark 232-27

Stem-Valve

$

$

Not available

2

Exmark 3296-42

Nut-Nyloc 1/4-20

$0.99

$

In Stock, Qty 12

0

3

Exmark 119-1567

Wheel-Friction

$47.99

$

In Stock, only 1 left!

0

4

Exmark 321-4

Screw-HH 1/4-20 X 3/4

$1.49

$

In Stock, Qty 20+

0

5

Exmark 32144-10

Screw-HWH 1/4-20 X .62

$4.99

$

In Stock, Qty 7

0

6

Exmark 106-4558

Bearing-Axle

$31.99

$

Usually ships in 3-6 days

0

7

Exmark 3-8664

Washer-Thrust

$6.49

$

Usually ships in 3-6 days

0

8

Exmark 107-8889

Guide-Collar

$5.49

$

Usually ships in 3-6 days

0

9

Exmark 3256-22

Washer-1/4 SAE

$0.99

$

In Stock, Qty 20+

0

10

Exmark 107-8892-03

Brace-Collar, Shift

$11.99

$

Usually ships in 3-6 days

0

11

Exmark 107-8893

Spring-Extension

$7.99

$

Usually ships in 3-6 days

0

12

Exmark 108-0015

Washer-Flat

$0.99

$

In Stock, Qty 8

0

13

Exmark 107-8894

11T Gear ASM

$61.99

$

Usually ships in 3-6 days

0

13:2

Exmark 108-2973

Bushing-Flange

$6.49

$

Usually ships in 3-6 days

0

14

Exmark 108-0016

Chain-Roller

$60.99

$

Usually ships in 3-6 days

0

15

Exmark 2710-6

Link-Connecting

$19.99

$

Usually ships in 3-6 days

0

16

Exmark 107-8888

Collar-Shift, RH

$11.99

$

Usually ships in 3-6 days

0

17

Exmark 321-23

Screw-HH

$4.49

$

Usually ships in 3-6 days

0

18

Exmark 107-8883

Shaft-Intermediate

$61.99

$

Usually ships in 3-6 days

0

19

Exmark 3290-343

Pin-Hair

$0.99

$

In Stock, only 3 left!

0

20

Exmark 107-8887

Collar-Shift, LH

$11.99

$

Usually ships in 3-6 days

0

21

Exmark 108-2975

Screw-HH

$5.49

$

In Stock, Qty 10

0

22

Exmark 107-8891

Washer-Thrust

$6.49

$

Usually ships in 3-6 days

0

23

Exmark 3257-7

Key-Woodruff

$9.99

$

In Stock, only 3 left!

0

24

Exmark 107-8898

Shaft-Axle

$58.99

$

Usually ships in 3-6 days

0

25

Exmark 106-4572

Gear-Axle, 44 Tooth

$83.99

$

Usually ships in 3-6 days

0

26

Exmark 322-17

Screw-HH 5/16-18 X 1 3/8

$3.99

$

In Stock, only 2 left!

0

27

Exmark 3296-47

Nut-Nyloc 5/16-18 Thin

$3.99

$

In Stock, Qty 8

0

28

Exmark 106-7259

Tube-Axle

$92.99

$

Usually ships in 3-6 days

0

29

LH Wheel And Tire ASM

$

$

Not available

29:1

Exmark 107-3042

Tire

$84.99

$

Usually ships in 3-6 days

0

29:2

Exmark 107-3043

Rim-Tire

$142.99

$

Usually ships in 3-6 days

0

29:3

Exmark 232-27

Stem-Valve

$

$

Not available

30

Exmark 55-9370

Spacer-Blade, Rotor

$2.99

$

In Stock, only 2 left!

0

31

Exmark 116-7908

Shaft-Hex .

$60.99

$

Usually ships in 3-6 days

0

32

Exmark 106-4434

Trunnion-Hex

$106.99

$

Usually ships in 3-6 days

0

33

Exmark 32121-9

Pin-Roll, Slotted

$3.49

$

In Stock, Qty 9

0

34

Exmark 94-8850

Key-Square

$2.99

$

Usually ships in 3-6 days

0

35

Exmark 3245-32

Screw-HSH

$5.49

$

In Stock, only 3 left!

0

36

Exmark 106-7317

Sprocket-8 Tooth

$37.99

$

Usually ships in 3-6 days

0

36:1

Exmark 3245-32

Screw-HSH

$5.49

$

In Stock, only 3 left!

0

37

Exmark 108-7319

Retainer-Bearing

$30.99

$

Usually ships in 3-6 days

0

38

Exmark 32144-14

Screw-HWHTF

$4.99

$

In Stock, only 3 left!

0

39

Exmark 104-7201

Nut-Nyloc 1/4-20 Flg

$1.49

$

In Stock, Qty 20+

0
