BRS270CKC36000 - Exmark 36" Power Broom, Kohler CH270 (SN: 400000000 - 402082299) (2017) Mounting Assembly Parts Diagram

36" Power Broom, Kohler CH270

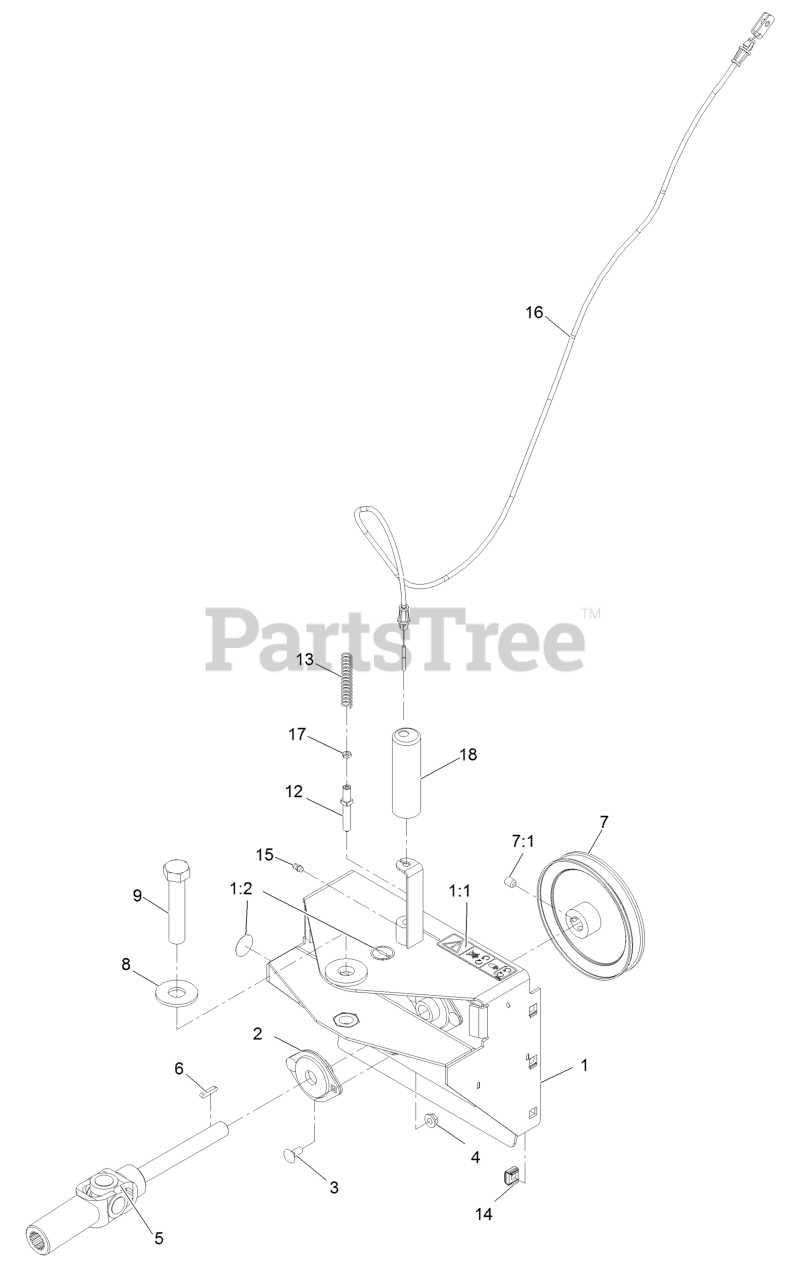

Mounting Assembly Parts Diagram

  • Title

1

Exmark 116-8122

Broom Mounting Frame ASM

$678.99

$

Usually ships in 3-6 days

0

1:1

Exmark 112-9028

Decal-Missing, Cover

$22.99

$

Usually ships in 3-6 days

0

1:2

Exmark 115-2903

Decal-Grease

$7.49

$

Usually ships in 3-6 days

0

2

Exmark 116-8103

Bearing-Shaft

$98.99

$

Usually ships in 3-6 days

0

3

Exmark 3230-1

Bolt-Carriage 5/16-18 X 3/4

$1.99

$

In Stock, Qty 20+

0

4

Exmark 32128-20

Nut-Whizlock 5/16-18

$1.49

$

In Stock, Qty 20+

0

5

Exmark 116-8104

Shaft-Drive

$609.99

$

Usually ships in 3-6 days

0

6

Exmark 116-8105

Key-Round End

$40.99

$

Usually ships in 3-6 days

0

7

Exmark 116-7930

Pulley-Impeller

$149.99

$

Usually ships in 3-6 days

0

7:1

Exmark 3246-18

Setscrew-5/16-18 X 3/8

$5.49

$

Usually ships in 3-6 days

0

8

Exmark 3256-8

Washer

$3.99

$

In Stock, Qty 15

0

9

Exmark 3216-7

Screw-HH 3/4-16 X 3 3/4

$21.99

$

Usually ships in 3-6 days

0

12

Exmark 116-8106

Pin-Swing

$74.99

$

Usually ships in 3-6 days

0

13

Exmark 116-8107

Spring-Compression

$55.99

$

Usually ships in 3-6 days

0

14

Exmark 3290-496

Nut-Retainer

$6.49

$

In Stock, only 3 left!

0

15

Exmark 302-19

Zerk-1/4-28 Str

$2.49

$

In Stock, Qty 8

0

16

Exmark 116-7671

Cable-Angle, Broom

$50.99

$

Usually ships in 3-6 days

0

17

Exmark 3217-26

Nut-Hex

$1.99

$

In Stock, only 2 left!

0

18

Exmark 116-8108

Cap

$26.99

$

Usually ships in 3-6 days

0
