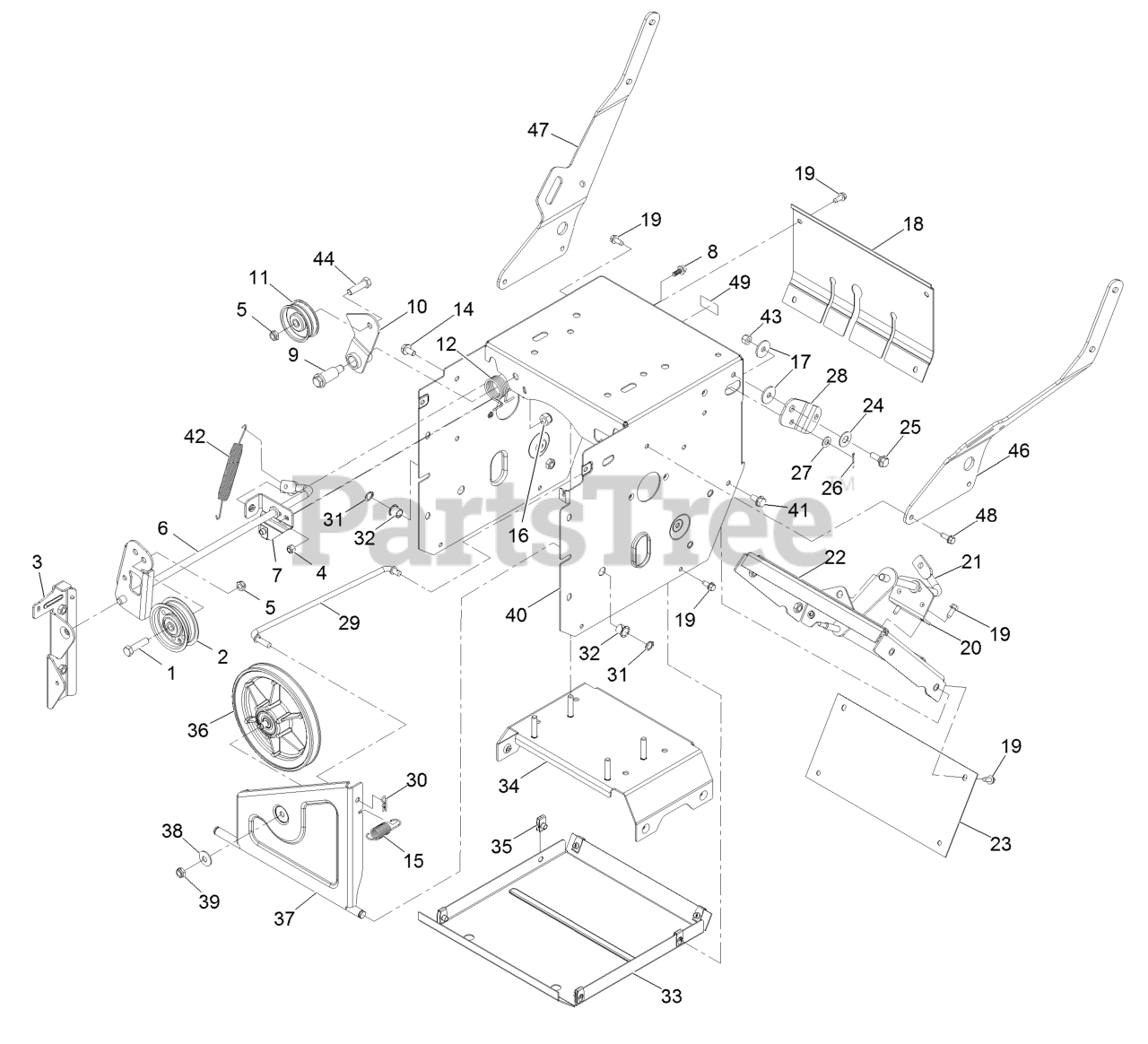

BRS270CKC36000 - Exmark 36" Power Broom, Kohler CH270 (SN: 400000000 - 402082299) (2017) Main Frame Assembly Parts Diagram

36" Power Broom, Kohler CH270

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 323-8

Screw-HH 3/8-16 X 1 1/2

$1.49

$

In Stock, Qty 20+

0

2

Exmark 92-7104

Pulley-Idler

$29.99

$

In Stock, only 1 left!

0

3

Exmark 107-1039

Bracket-Idler, Impeller
(Superseded to 136-7112)

$22.99

$

Usually ships in 3-6 days

0

4

Exmark 3296-42

Nut-Nyloc 1/4-20

$0.99

$

In Stock, Qty 20+

0

5

Exmark 3296-59

Nut-Nyloc 3/8-16 Thin
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

6

Exmark 107-3838-03

Impeller Clutch ASM

$39.99

$

Usually ships in 3-6 days

0

7

Exmark 120-9824

Bracket-Clutch, Impeller

$6.49

$

Usually ships in 3-6 days

0

8

Exmark 99-6810

Screw-HH 1/4-20 X 5/8

$3.49

$

In Stock, only 2 left!

0

9

Exmark 108-5056

Bolt-Shoulder

$7.99

$

Usually ships in 3-6 days

0

10

Exmark 108-5058

Arm-Idler, Traction

$35.99

$

Usually ships in 3-6 days

0

11

Exmark 3-4244

Pulley-Idler

$27.99

$

In Stock, only 2 left!

0

12

Exmark 108-7332

Spring-Torsion

$6.49

$

In Stock, only 2 left!

0

14

Exmark 3234-7

Screw-HH Flg 5/16-18 X 5/8

$2.49

$

In Stock, only 2 left!

0

15

Exmark 107-1003

Spring-Extension

$5.49

$

In Stock, only 2 left!

0

16

Exmark 3296-76

Nut-Lock, NI

$4.99

$

Usually ships in 3-6 days

0

17

Exmark 5-4460

Washer-Pivot

$7.99

$

In Stock, Qty 20+

0

18

Exmark 108-0022-03

Cover-Upper

$17.99

$

Usually ships in 3-6 days

0

19

Exmark 32144-10

Screw-HWH 1/4-20 X .62

$4.99

$

In Stock, Qty 15

0

20

Exmark 108-0036

Bracket-Rod, Shift
(Superseded to 136-7114)

$6.49

$

Usually ships in 3-6 days

0

21

Exmark 106-7268

Lever-Control, Traction
(Superseded to 136-7106)

$49.99

$

Usually ships in 3-6 days

0

22

Exmark 108-0026-03

Shift Plate ASM

$54.99

$

Usually ships in 3-6 days

0

23

Exmark 106-7345-03

Cover-Lower

$11.99

$

Usually ships in 3-6 days

0

24

Exmark 25-5640

Washer

$1.99

$

Usually ships in 3-6 days

0

25

Exmark 27-0410

Screw-Shoulder 5/16-18 X 1 Sp

$2.99

$

In Stock, Qty 5

0

26

Exmark 3272-4

Pin-Cotter

$0.99

$

Usually ships in 3-6 days

0

27

Exmark 3256-23

Washer-5/16 Sae

$2.49

$

In Stock, Qty 20+

0

28

Exmark 107-1011

Bellcrank-Drive

$9.49

$

Usually ships in 3-6 days

0

29

Exmark 106-4467

Link-Control, Speed

$21.99

$

Usually ships in 3-6 days

0

30

Exmark 3290-307

Pin-Cotter
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

31

Exmark 32151-61

Ring-Retaining

$2.99

$

In Stock, Qty 20+

0

32

Exmark 256-257

Bushing-Nyliner

$3.99

$

In Stock, Qty 20+

0

33

Exmark 106-7330-03

Pan-Bottom

$27.99

$

Usually ships in 3-6 days

0

34

Exmark 116-7678

Brace-Frame

$60.99

$

Usually ships in 3-6 days

0

35

Exmark 107069

Nut-Retainer-Panel 1/4-20

$2.99

$

In Stock, Qty 20+

0

36

Exmark 108-0031

Pulley-Traction
(Superseded to 136-7319)

$106.99

$

Usually ships in 3-6 days

0

37

Exmark 108-7307

Bracket-Wheel, Friction
(Superseded to 136-7118)

$78.99

$

Usually ships in 3-6 days

0

38

Exmark 3290-340

Washer-Belleville

$7.99

$

In Stock, Qty 10

0

39

Exmark 3296-5

Nut-Nyloc 3/8-24 Thin

$3.49

$

In Stock, Qty 20+

0

40

Exmark 120-9832-03

Traction Frame ASM

$192.99

$

Usually ships in 3-6 days

0

41

Exmark 32144-14

Screw-HWHTF

$4.99

$

In Stock, only 3 left!

0

42

Exmark 108-2976

Spring-Extension
(Superseded to 136-7115)

$12.99

$

In Stock, Qty 8

0

43

Exmark 3296-29

Nut-Nyloc 5/16-18

$2.49

$

In Stock, Qty 20+

0

44

Exmark 323-29

Screw-HH 3/8-16 X 1 3/8

$0.99

$

In Stock, Qty 15

0

46

Exmark 116-7672-03

Brace-Handle, LH

$43.99

$

Usually ships in 3-6 days

0

47

Exmark 116-7673-03

Brace-Handle, RH

$43.99

$

Usually ships in 3-6 days

0

48

Exmark 32144-44

Screw-HWH, Thread Roll

$1.49

$

In Stock, only 2 left!

0

49

Exmark 126-4345

Decal-Patent Ttco.Com

$1.99

$

In Stock, Qty 9
