BRS270CKC36000 - Exmark 36" Power Broom, Kohler CH270 (SN: 400000000 - 402082299) (2017) Broom Head and Shield Assembly Parts Diagram

36" Power Broom, Kohler CH270

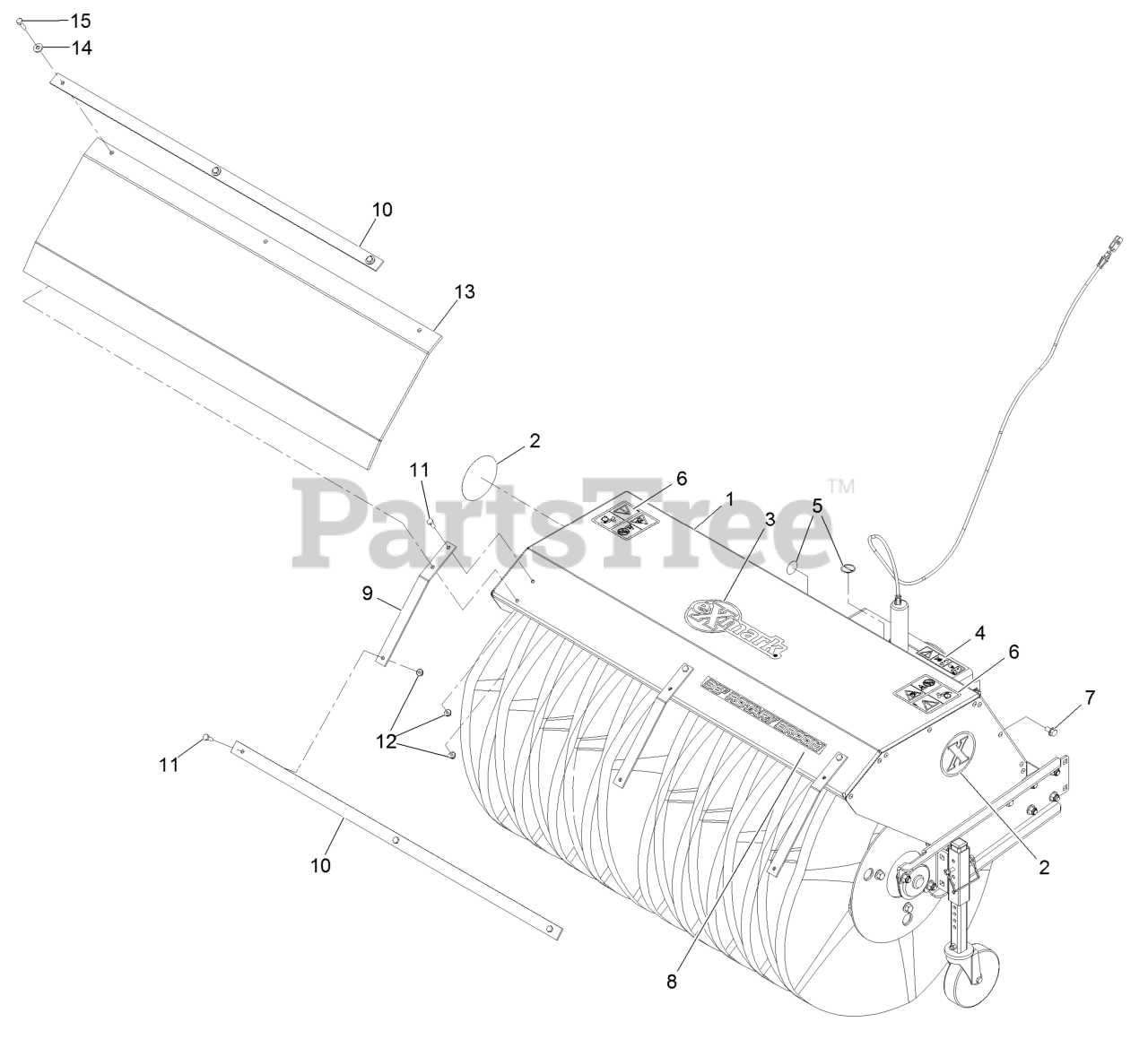

Broom Head and Shield Assembly Parts Diagram

  • Title

1

Broom ASM

Broom ASM

$

$

Not available

2

Exmark 116-7034

Decal-Exmark X-Logo 3.85

$16.99

$

Usually ships in 3-6 days

0

3

Exmark 1-653546

Decal, Exmark

$21.99

$

In Stock, only 3 left!

0

4

Exmark 112-9028

Decal-Missing, Cover

$22.99

$

Usually ships in 3-6 days

0

5

Exmark 115-2903

Decal-Grease

$7.49

$

Usually ships in 3-6 days

0

6

Exmark 116-8140

Decal-Warning

$5.49

$

Usually ships in 3-6 days

0

7

Exmark 32144-14

Screw-HWHTF

$4.99

$

In Stock, only 3 left!

0

8

Exmark 116-9227

Decal-36 Rotary Broom

$11.99

$

Usually ships in 3-6 days

0

9

Exmark 116-8869-03

Strap-Support, Deflector

$19.99

$

Usually ships in 3-6 days

0

10

Exmark 116-8880-03

Strap-Support, Broom Deflector

$30.99

$

Usually ships in 3-6 days

0

11

Exmark 321-4

Screw-HH 1/4-20 X 3/4

$1.49

$

In Stock, Qty 20+

0

12

Exmark 104-7201

Nut-Nyloc 1/4-20 Flg

$1.49

$

In Stock, Qty 20+

0

13

Exmark 116-8864

Deflector-Broom

$72.99

$

Usually ships in 3-6 days

0

14

Exmark 3256-2

Washer-1/4 Std
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

15

Exmark 321-6

Screw-HH 1/4-20 X 1

$0.99

$

In Stock, Qty 20+

0
