BRS270CKC36000 - Exmark 36" Power Broom, Kohler CH270 (SN: 315000000 - 315999999) (2015) Mounting Assembly Parts Diagram

36" Power Broom, Kohler CH270

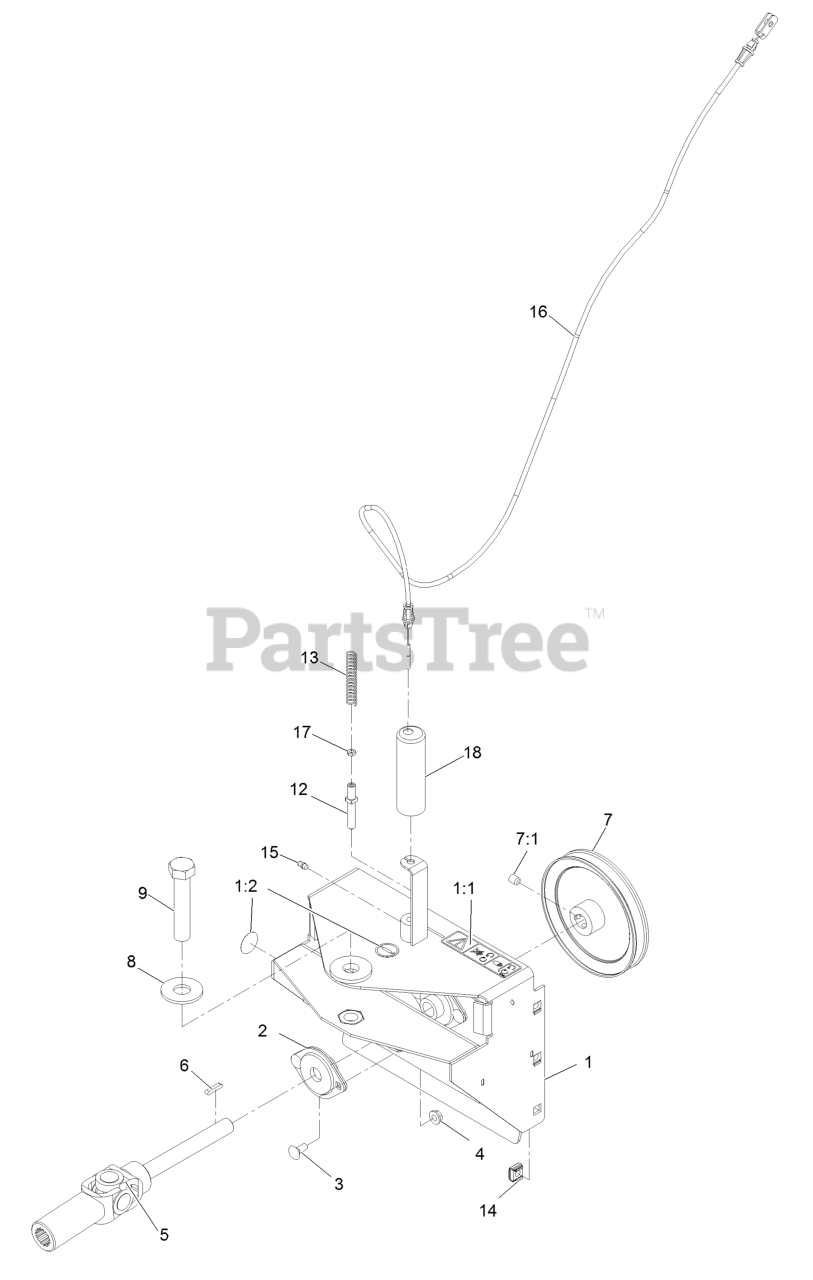

Mounting Assembly Parts Diagram

  • Title

1

Exmark 116-8122

BROOM MOUNTING FRAME ASM

$719.99

$

Usually ships in 3-6 days

0

1:1

Exmark 112-9028

DECAL-COVER, MISSING

$23.99

$

Usually ships in 3-6 days

0

1:2

Exmark 115-2903

DECAL-GREASE

$7.99

$

Usually ships in 3-6 days

0

2

Exmark 116-8103

BEARING-SHAFT

$103.99

$

Usually ships in 3-6 days

0

3

Exmark 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

4

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

5

Exmark 116-8104

SHAFT-DRIVE

$678.99

$

Usually ships in 3-6 days

0

6

Exmark 116-8105

KEY-ROUND END

$45.99

$

Usually ships in 3-6 days

0

7

Exmark 116-7930

PULLEY-IMPELLER

$158.99

$

Usually ships in 3-6 days

0

7:1

Exmark 3246-18

SETSCREW

$5.49

$

Usually ships in 3-6 days

0

8

Exmark 3256-8

WASHER-FLAT

$3.99

$

In Stock, Qty 13

0

9

Exmark 3216-7

SCREW-HH

$22.99

$

Usually ships in 3-6 days

0

12

Exmark 116-8106

PIN-SWING

$82.99

$

Usually ships in 3-6 days

0

13

Exmark 116-8107

SPRING-COMPRESSION

$61.99

$

Usually ships in 3-6 days

0

14

Exmark 3290-496

NUT-RETAINER

$6.99

$

In Stock, Qty 12

0

15

Exmark 302-19

FITTING-GREASE

$2.99

$

In Stock, Qty 20+

0

16

Exmark 116-7671

CABLE-ANGLE, BROOM

$57.99

$

Usually ships in 3-6 days

0

17

Exmark 3217-26

NUT-HEX

$1.99

$

In Stock, only 2 left!

0

18

Exmark 116-8108

CAP

$28.99

$

Usually ships in 3-6 days

0
