BRS270CKC36000 - Exmark 36" Power Broom, Kohler CH270 (SN: 315000000 - 315999999) (2015) Handle Assembly Parts Diagram

36" Power Broom, Kohler CH270

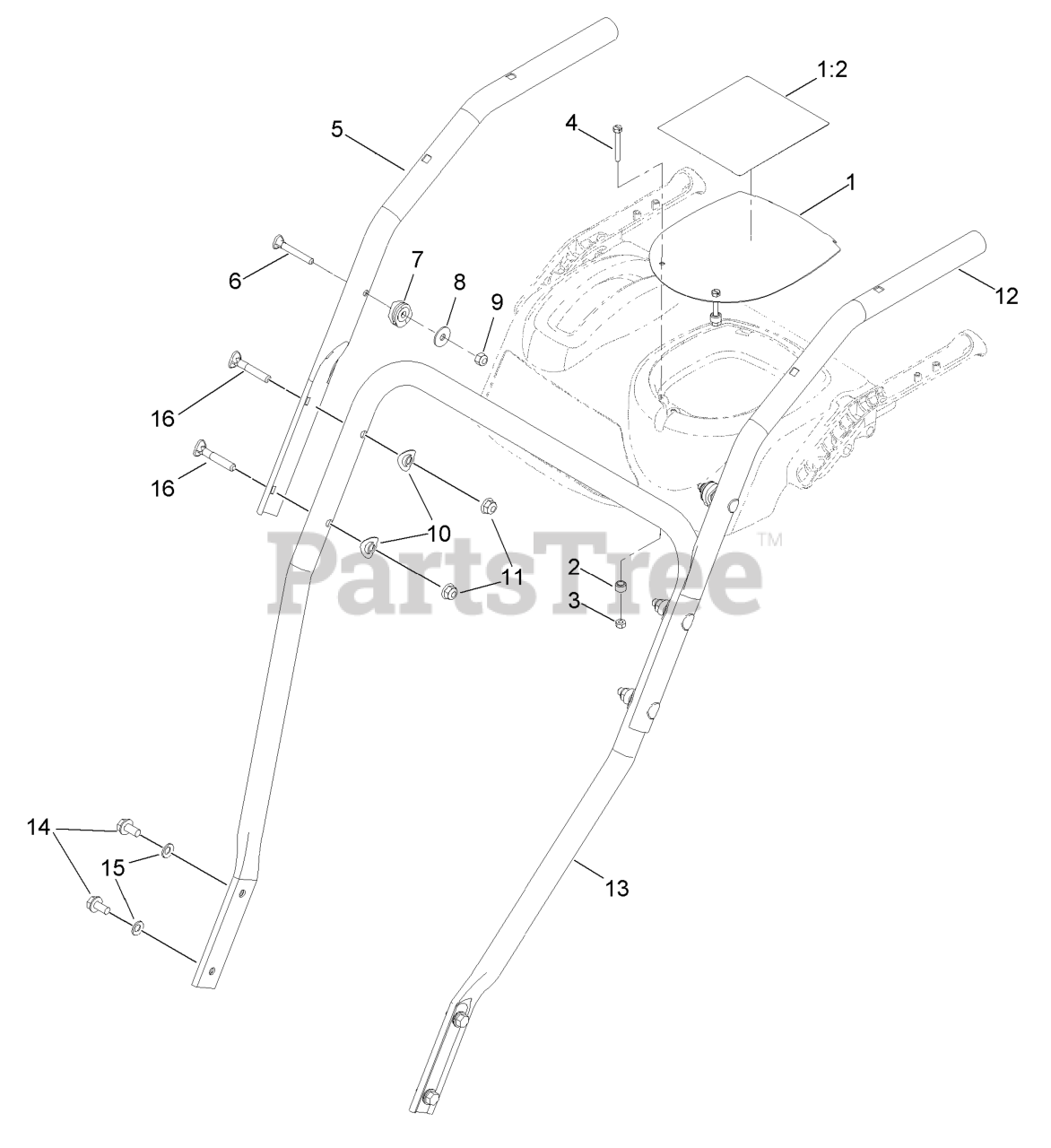

Handle Assembly Parts Diagram

  • Title

1

Exmark 116-7788

PANEL-CONTROL

$45.99

$

Usually ships in 3-6 days

0

1:2

Exmark 116-7370

DECAL-WARNING

$13.99

$

Usually ships in 3-6 days

0

2

Exmark 55-9370

SPACER-BLADE, ROTOR

$2.99

$

In Stock, only 2 left!

0

3

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Exmark 32105-5

SCREW

$4.49

$

Usually ships in 3-6 days

0

5

Exmark 108-0038-03

HANDLE-UPPER, RH
(Superseded to 127-5953-03)

$39.99

$

Usually ships in 3-6 days

0

6

Exmark 95-4453

SCREW

$3.49

$

In Stock, only 1 left!

0

7

Exmark 106-4509

CLAMP-CABLE

$6.49

$

In Stock, Qty 6

0

8

Exmark 87-6630

WASHER-PLAIN

$0.99

$

Usually ships in 3-6 days

0

9

Exmark 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, only 3 left!

0

10

Exmark 107-3844

WASHER

$1.49

$

In Stock, Qty 19

0

11

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

12

Exmark 108-0037-03

127-5952-03
(Superseded to 127-5952-03)

$290.99

$

Usually ships in 3-6 days

0

13

Exmark 105-9981-03

HANDLE-LOWER

$135.99

$

Usually ships in 3-6 days

0

14

Exmark 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

15

Exmark 3290-475

WASHER-BELLEVILLE

$2.99

$

Usually ships in 3-6 days

0

16

Exmark 92-2260

SCREW-HANDLE

$3.99

$

In Stock, Qty 5

0
