BRS270CKC36000 - Exmark 36" Power Broom, Kohler CH270 (SN: 315000000 - 315999999) (2015) Broom Head and Shield Assembly Parts Diagram

36" Power Broom, Kohler CH270

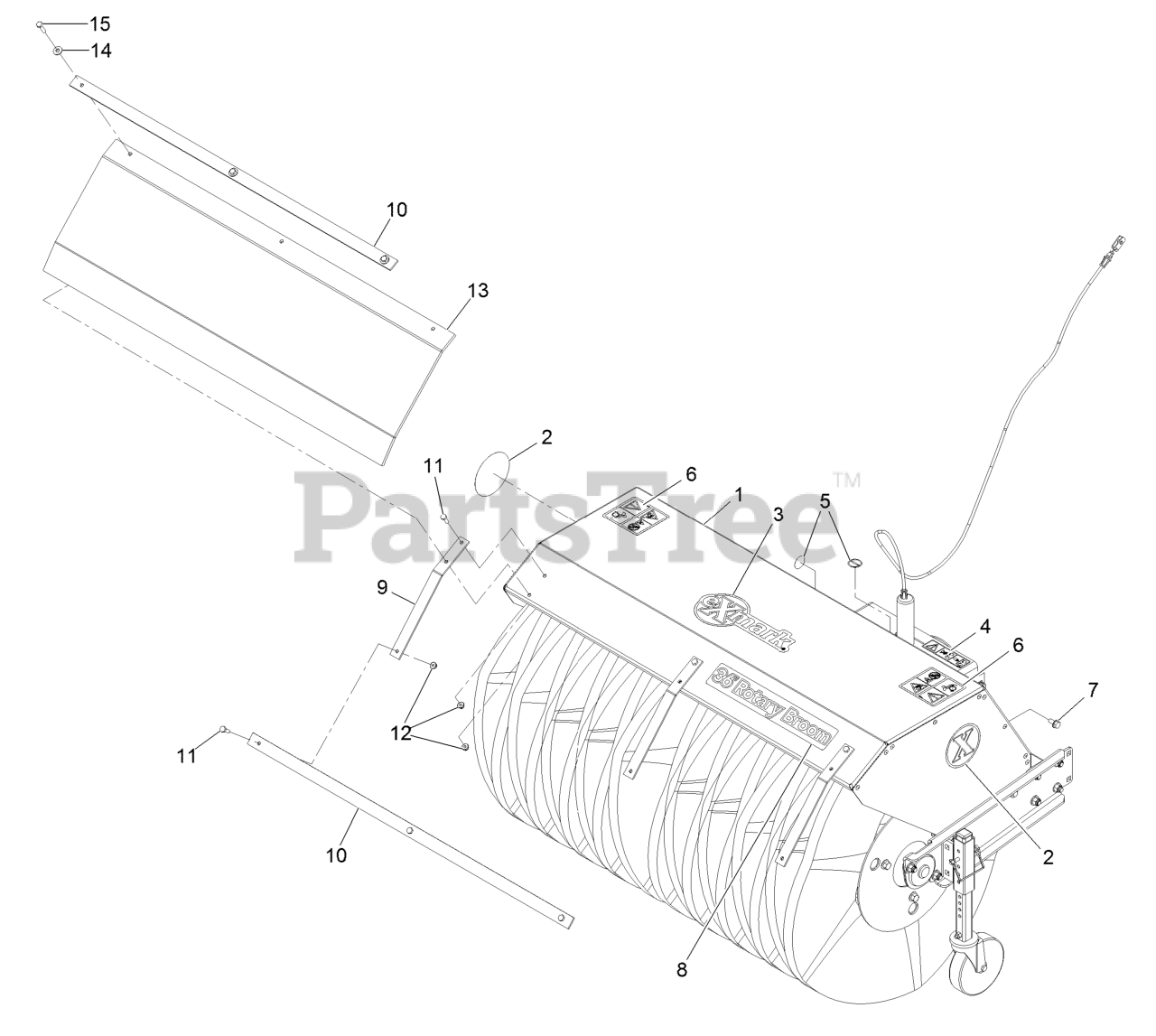

Broom Head and Shield Assembly Parts Diagram

  • Title

1

Broom - Mb

Note: Not serviced separately

$

$

Not available

2

Exmark 116-7034

DECAL-EXMARK X-LOGO 3.85

$15.99

$

Usually ships in 3-6 days

0

3

Exmark 1-653546

DECAL, EXMARK LOGO

$20.99

$

In Stock, only 3 left!

0

4

Exmark 112-9028

DECAL-COVER, MISSING

$22.99

$

Usually ships in 3-6 days

0

5

Exmark 115-2903

DECAL-GREASE

$7.49

$

Usually ships in 3-6 days

0

6

Exmark 116-8140

DECAL-WARNING

$5.49

$

Usually ships in 3-6 days

0

7

Exmark 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

8

Exmark 116-9227

DECAL-36 ROTARY BROOM

$11.99

$

Usually ships in 3-6 days

0

9

Exmark 116-8869-03

STRAP-SUPPORT, DEFLECTOR

$18.99

$

Usually ships in 3-6 days

0

10

Exmark 116-8880-03

STRAP-SUPPORT, BROOM DEFL

$28.99

$

Usually ships in 3-6 days

0

11

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

13

Exmark 116-8864

DEFLECTOR-BROOM

$66.99

$

Usually ships in 3-6 days

0

14

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

15

Exmark 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0
