BRD-280 - Echo Bed Redefiner Edger (SN: S70711001001 - S70711999999) Gear Case S/N: S70711001001-S70711004066 Parts Diagram

Bed Redefiner Edger

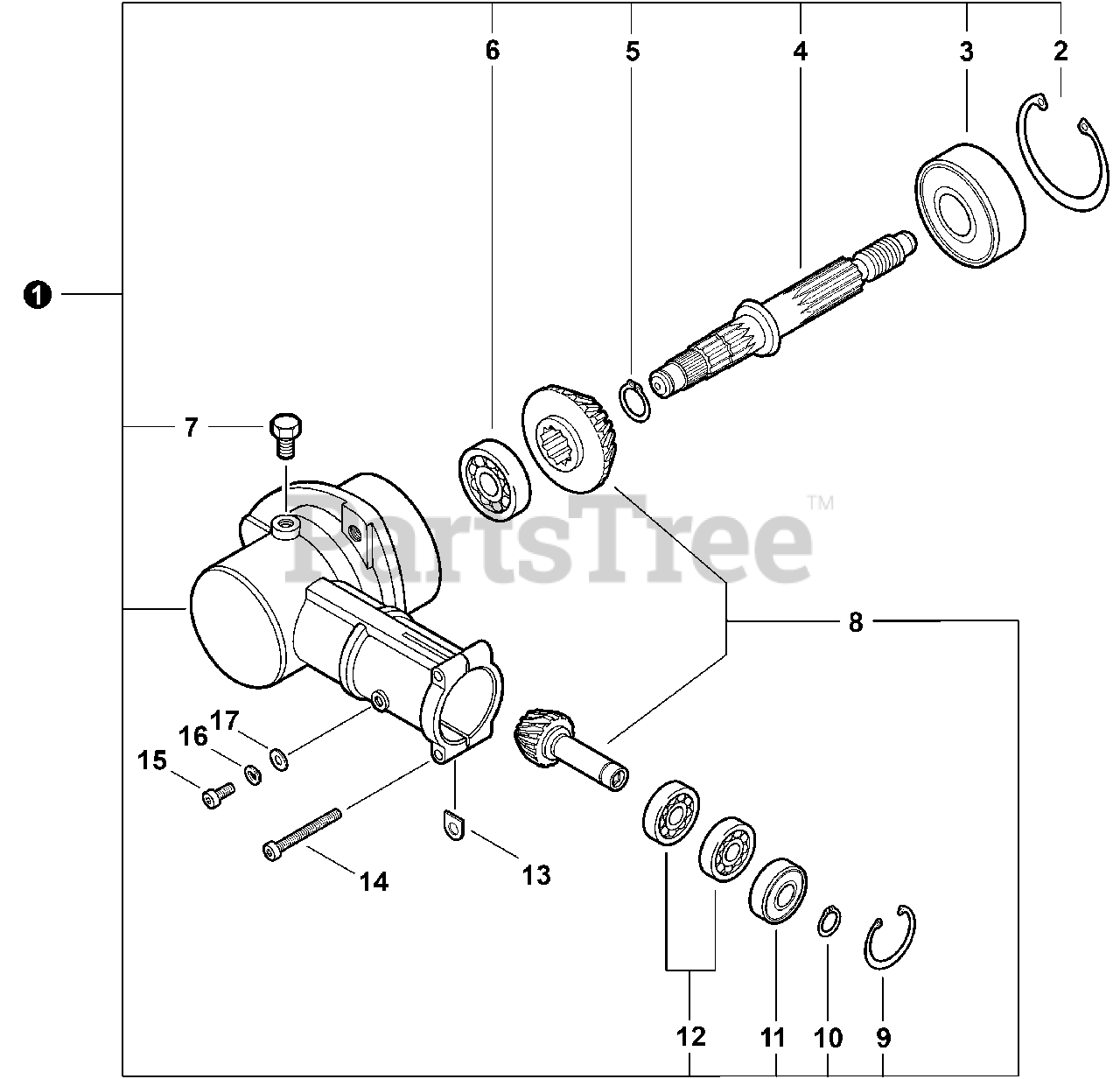

Gear Case S/N: S70711001001-S70711004066 Parts Diagram

  • Title

1

Echo C051000331

GEAR CASE ASY
(Superseded to C051001230)

Note: Inlcudes Items 2-12

$131.99

$

In Stock, only 1 left!

0

2

Echo 90070200042

RING, RETAINING - 42

$1.99

$

In Stock, Qty 16

0

3

Echo 90081206302

BEARING, BALL 609

$16.99

$

In Stock, Qty 7

0

4

Echo C534000500

GEAR, SHAFT
(Superseded to C051001230)

$131.99

$

In Stock, only 1 left!

0

5

Echo 90070600012

RING, RETAINING - 12

$1.49

$

In Stock, Qty 6

0

6

Echo 90081000629

BEARING, BALL - 629

$15.99

$

In Stock, only 2 left!

0

7

Echo 61043450031

BOLT 8×8

$1.99

$

In Stock, Qty 6

0

8

Echo P021015970

GEAR SET
(Superseded to C051001230)

$131.99

$

In Stock, only 1 left!

0

9

Echo 90070200022

RING, RETAINING - 22

$1.99

$

In Stock, Qty 5

0

10

Echo 90070600010

RING, RETAINING - 10

$1.49

$

In Stock, Qty 20+

0

11

Echo 90085806900

BEARING, BALL - 6900Z

$22.99

$

In Stock, Qty 6

0

12

Echo 90085506900

BEARING, BALL - 6900

$18.99

$

In Stock, Qty 5

0

13

Echo 61023904130

WASHER, SHIM

$0.99

$

In Stock, Qty 10

0

14

Echo V805000170

SCREW - 5×25

$0.99

$

In Stock, Qty 20+

0

15

Echo V805000140

SCREW - 5×12

$0.99

$

In Stock, Qty 20+

0

16

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 9

0

17

Echo 90060000005

WASHER

$0.99

$

In Stock, Qty 20+

0
