BR270KC36 - Exmark 36" Power Broom, Kohler CH270 (SN: 314000000 - 314999999) (2014) Clutch Drive Assembly Parts Diagram

36" Power Broom, Kohler CH270

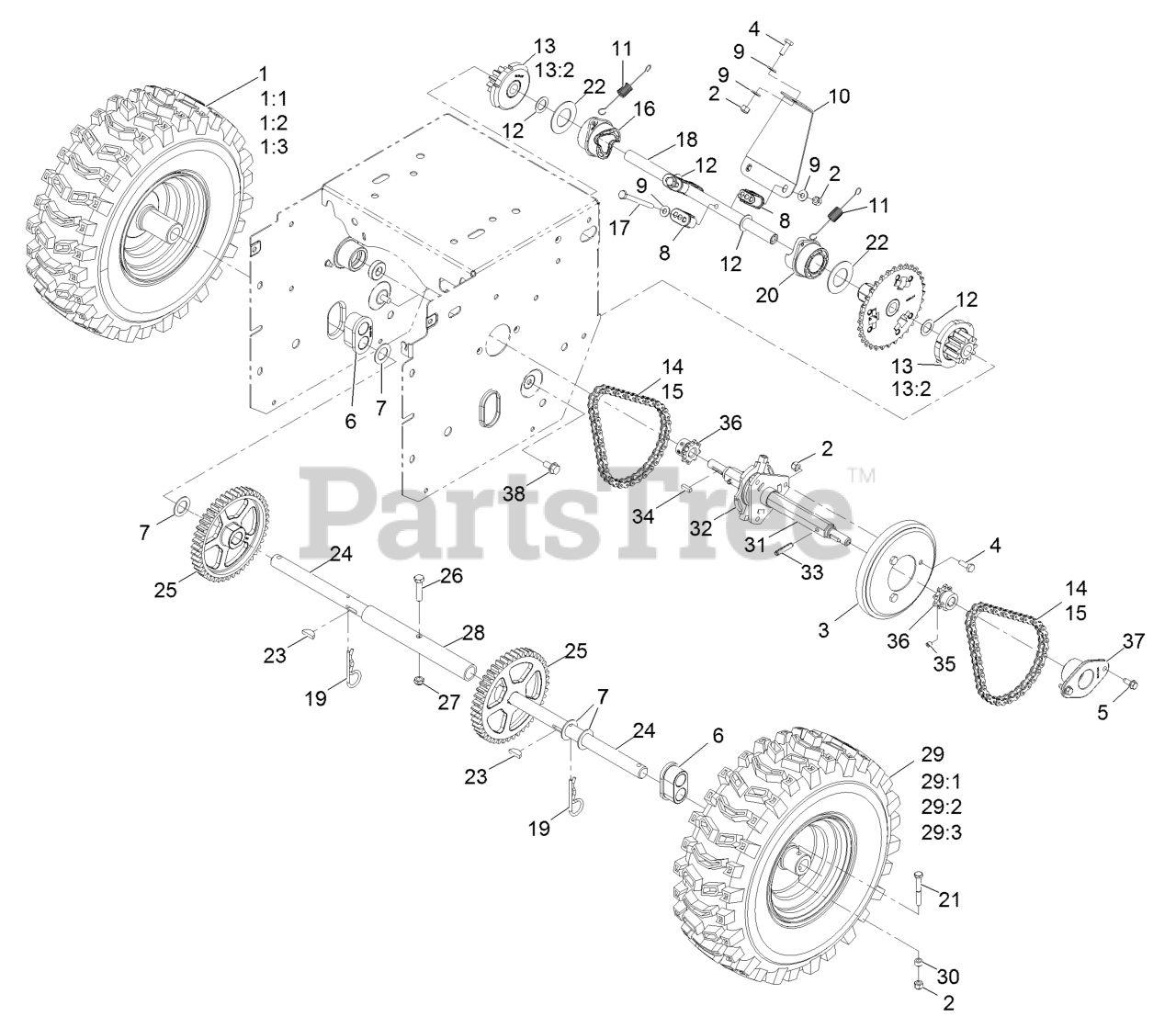

Clutch Drive Assembly Parts Diagram

  • Title

1

Rh Wheel And Tire Asm

Note: Not serviced separately

$

$

Not available

1:1

Exmark 107-3042

TIRE

$84.99

$

Usually ships in 3-6 days

0

1:2

Exmark 107-3043

RIM-TIRE

$142.99

$

Usually ships in 3-6 days

0

1:3

Exmark 232-27

Stem-Valve

$

$

Not available

2

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

3

Exmark 119-1567

WHEEL-FRICTION

$47.99

$

In Stock, only 1 left!

0

4

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

5

Exmark 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 7

0

6

Exmark 106-4558

BEARING-AXLE

$31.99

$

Usually ships in 3-6 days

0

7

Exmark 3-8664

WASHER-THRUST

$6.49

$

Usually ships in 3-6 days

0

8

Exmark 107-8889

GUIDE-COLLAR

$5.49

$

Usually ships in 3-6 days

0

9

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Exmark 107-8892-03

BRACE-COLLAR, SHIFT

$11.99

$

Usually ships in 3-6 days

0

11

Exmark 107-8893

SPRING-EXTENSION

$7.99

$

Usually ships in 3-6 days

0

12

Exmark 108-0015

WASHER-FLAT

$0.99

$

In Stock, Qty 8

0

13

Exmark 107-8894

11T GEAR ASM

$61.99

$

Usually ships in 3-6 days

0

13:2

Exmark 108-2973

BUSHING-FLANGE

$6.49

$

Usually ships in 3-6 days

0

14

Exmark 108-0016

CHAIN-ROLLER

$60.99

$

Usually ships in 3-6 days

0

15

Exmark 2710-6

LINK-CONNECTING

$19.99

$

Usually ships in 3-6 days

0

16

Exmark 107-8888

COLLAR-SHIFT, RH

$11.99

$

Usually ships in 3-6 days

0

17

Exmark 321-23

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

18

Exmark 107-8883

SHAFT-INTERMEDIATE

Note: Apply light coat of oil before assembly.

$61.99

$

Usually ships in 3-6 days

0

19

Exmark 3290-343

PIN-HAIR

$0.99

$

In Stock, only 3 left!

0

20

Exmark 107-8887

COLLAR-SHIFT, LH

$11.99

$

Usually ships in 3-6 days

0

21

Exmark 108-2975

SCREW-HH

$5.49

$

In Stock, Qty 10

0

22

Exmark 107-8891

WASHER-THRUST

$6.49

$

Usually ships in 3-6 days

0

23

Exmark 3257-7

KEY-WOODRUFF

$9.99

$

In Stock, only 3 left!

0

24

Exmark 107-8898

SHAFT-AXLE

$58.99

$

Usually ships in 3-6 days

0

25

Exmark 106-4572

GEAR-AXLE, 44 TOOTH

$83.99

$

Usually ships in 3-6 days

0

26

Exmark 322-17

SCREW-HH

$3.99

$

In Stock, only 2 left!

0

27

Exmark 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 10

0

28

Exmark 106-7259

TUBE-AXLE

$92.99

$

Usually ships in 3-6 days

0

29

Lh Wheel And Tire Asm

Note: Not serviced separately

$

$

Not available

29:1

Exmark 107-3042

TIRE

$84.99

$

Usually ships in 3-6 days

0

29:2

Exmark 107-3043

RIM-TIRE

$142.99

$

Usually ships in 3-6 days

0

29:3

Exmark 232-27

Stem-Valve

$

$

Not available

30

Exmark 55-9370

SPACER-BLADE, ROTOR

$2.99

$

In Stock, only 2 left!

0

31

Exmark 116-7908

SHAFT-HEX

Note: Apply light coat of oil to hex portion of shaft.

$60.99

$

Usually ships in 3-6 days

0

32

Exmark 106-4434

TRUNNION-HEX

$106.99

$

Usually ships in 3-6 days

0

33

Exmark 3212-19

SCREW-HH

$8.49

$

Usually ships in 3-6 days

0

34

Exmark 94-8850

KEY-SQUARE

$2.99

$

Usually ships in 3-6 days

0

35

Exmark 3245-32

SCREW-HSH

$5.49

$

In Stock, only 3 left!

0

36

Exmark 106-7317

SPROCKET-8 TOOTH

$37.99

$

Usually ships in 3-6 days

0

37

Exmark 108-7319

RETAINER-BEARING

$30.99

$

Usually ships in 3-6 days

0

38

Exmark 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0
