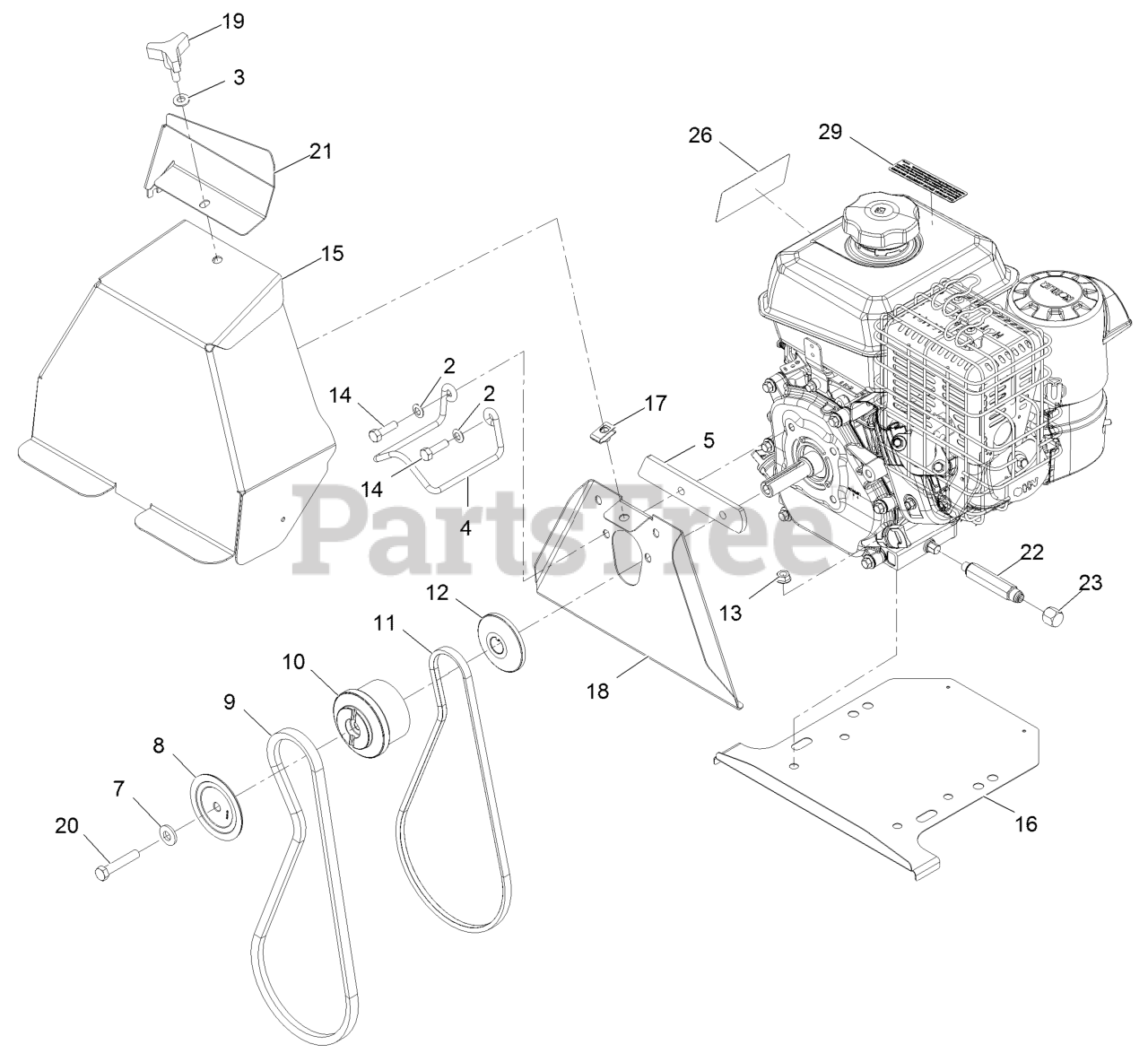

BR270KC36 - Exmark 36" Power Broom, Kohler CH270 (SN: 313000000 - 313999999) (2013) Engine Assembly Parts Diagram

36" Power Broom, Kohler CH270

Engine Assembly Parts Diagram

  • Title

2

Exmark 3290-475

WASHER-BELLEVILLE

$2.99

$

Usually ships in 3-6 days

0

3

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 3 left!

0

4

Exmark 107-3835

136-7317
(Superseded to 136-7317)

$18.99

$

In Stock, only 1 left!

0

5

Exmark 116-7659-03

SPACER-COVER, BELT

$11.99

$

Usually ships in 3-6 days

0

7

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

8

Exmark 112-8139

SHEAVE-HALF, IMPELLER

Note: Apply anti-seize compound in bore.

$15.99

$

Usually ships in 3-6 days

0

9

Exmark 1-653332

BELT-BLOWER
(Superseded to 1-653332-SL)

$29.99

$

In Stock, only 4 left!

0

10

Exmark 112-8117

PULLEY-ENGINE, CENTER

Note: Apply anti-seize compound in bore.

$62.99

$

Usually ships in 3-6 days

0

11

Exmark 94-8812

V BELT-TRACTION
(Superseded to 94-8812-SL)

$33.99

$

Usually ships in 3-6 days

0

12

Exmark 112-8138

SHEAVE-HALF, TRACTION

Note: Apply anti-seize compound in bore.

$15.99

$

Usually ships in 3-6 days

0

13

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

14

Exmark 3210-6

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

15

Exmark 116-7258-03

COVER - BELT

$109.99

$

Usually ships in 3-6 days

0

16

Exmark 116-8761-03

SHIELD-DRIVE

$45.99

$

Usually ships in 3-6 days

0

17

Exmark 94-2413

NUT-U

$2.99

$

In Stock, Qty 20+

0

18

Exmark 116-7431-03

COVER-BELT, BACK

$39.99

$

Usually ships in 3-6 days

0

19

Exmark 106-2240

KNOB

$13.99

$

Usually ships in 3-6 days

0

20

Exmark 3211-9

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$2.99

$

Usually ships in 3-6 days

0

21

Exmark 116-7922-03

SHIELD-ICE, KC CH270

$22.99

$

Usually ships in 3-6 days

0

22

Exmark 116-8721

ADAPTER

$44.99

$

Usually ships in 3-6 days

0

23

Exmark 01-201-4520

CAP

$3.99

$

Usually ships in 3-6 days

0

26

Exmark 116-8505

Decal-Engine Fuel

$

$

Not available

29

Exmark 117-2718

DECAL-ARRESTER, SPARK

$7.99

$

In Stock, only 1 left!
