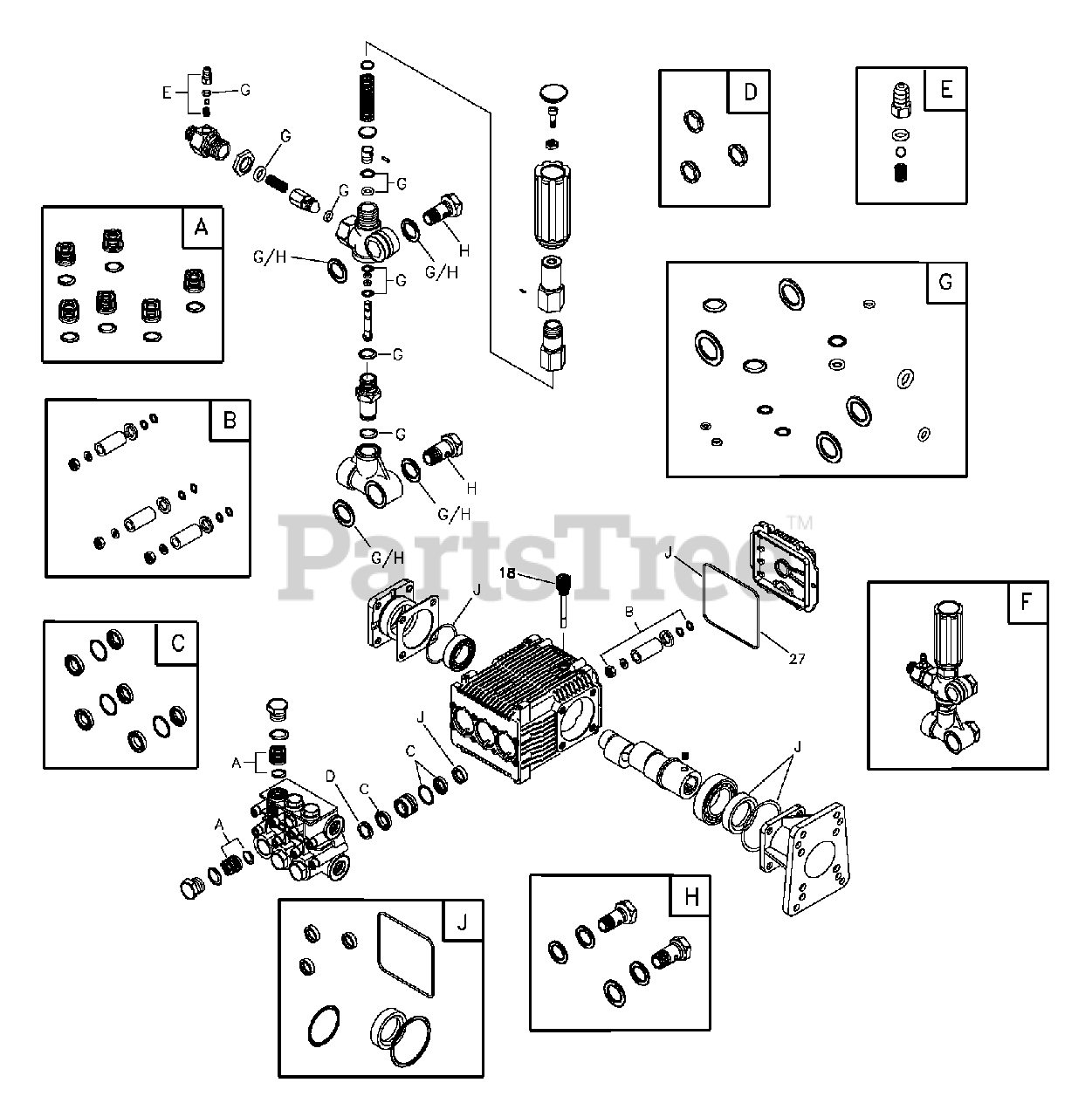

BPW 3500 (1780-0) - Briggs & Stratton 3,500 PSI Pressure Washer Pump Parts Diagram

3,500 PSI Pressure Washer

Pump Parts Diagram

  • Title

18

Briggs & Stratton 198849GS

CAP, Oil Dipstick

$33.99

$

In Stock, only 2 left!

0

27

Briggs & Stratton 116B2126GS

O-RING, Square

$6.49

$

Usually ships in 2-12 days

0

A

Briggs & Stratton 200B1410GS

KIT, VALVE

Note: Service kits include all parts shown within the box.

$155.99

$

Usually ships in 2-12 days

0

B

Briggs & Stratton 193990GS

KIT, PISTON

Note: Service kits include all parts shown within the box.

$366.99

$

Usually ships in 2-12 days

0

C

Briggs & Stratton 203B2327GS

KIT, WATER SEALS

Note: Service kits include all parts shown within the box.

$214.99

$

Usually ships in 2-12 days

0

D

Briggs & Stratton 204B1410GS

KIT, SUPPORT RINGS

Note: Service kits include all parts shown within the box.

$44.99

$

Usually ships in 2-12 days

0

E

Briggs & Stratton 192914GS

KIT, HOSE TAIL

Note: Service kits include all parts shown within the box.

$24.99

$

In Stock, only 1 left!

0

F

Briggs & Stratton 153B2126GS

UNLOADER, Complete

Note: Service kits include all parts shown within the box.

$250.99

$

In Stock, only 1 left!

0

G

Briggs & Stratton 193991GS

KIT, O-RINGS

Note: Service kits include all parts shown within the box.

$409.99

$

Usually ships in 2-12 days

0

H

Briggs & Stratton 199894GS

KIT, BOLTS

Note: Service kits include all parts shown within the box.

$172.99

$

Usually ships in 2-12 days

0

J

Briggs & Stratton 202B1410GS

KIT, OIL SEALS

Note: Service kits include all parts shown within the box.

$163.99

$

Usually ships in 2-12 days

0

Briggs & Stratton B2384GS

FILTER, Inlet

Note: Not Illustrated

$4.49

$

In Stock, Qty 15

0

Briggs & Stratton 100515GS

PUMP SAVER
(Superseded to 6039)

Note: Optional Accessory

$12.99

$

In Stock, Qty 20+

0

Briggs & Stratton 186452GS

FILTER, Inlet Bag of 10

Note: Optional Accessory

$97.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 6033

OIL BOTTLE, Pump

Note: Optional Accessory

$24.99

$

Usually ships in 2-12 days

0
