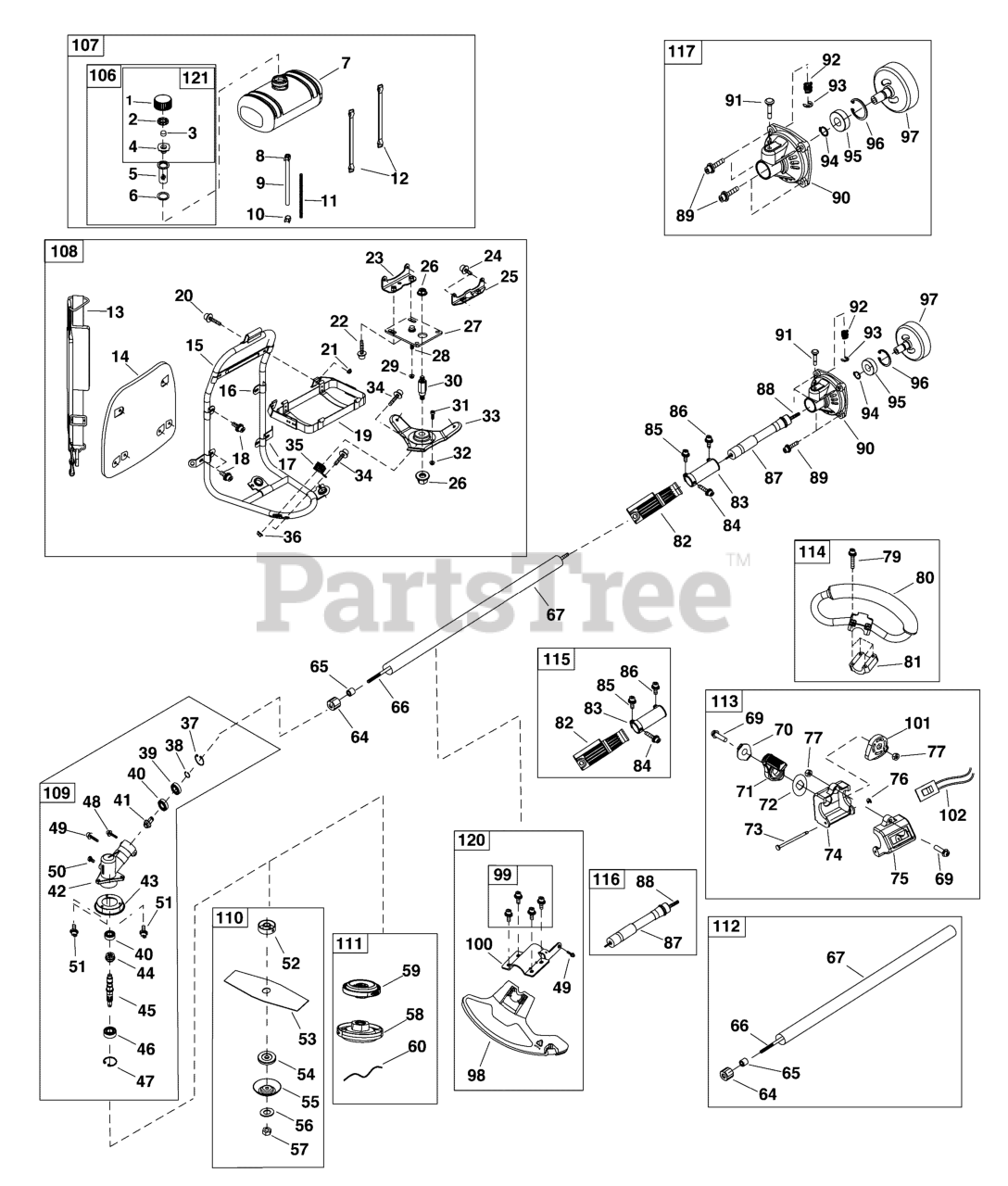

BP 43 (1697285-A) - Briggs & Stratton Brush Cutter Shaft Group Parts Diagram

Brush Cutter

Shaft Group Parts Diagram

  • Title

1

Murray 702028

CAP, Fuel Tank

$4.49

$

Usually ships in 2-12 days

0

2

Murray 701112

INNER CAP, Fuel Tank

$

$

Currently unavailable

3

Murray 701111

NET, Fuel Filter

$

$

Currently unavailable

4

Murray 701110

INNER CAP, Rubber

$

$

Currently unavailable

5

Murray 701108

FUEL FILTER ASSEMBLY

$3.99

$

Usually ships in 2-12 days

0

6

Murray 701107

GASKET, Filter

$

$

Currently unavailable

7

Murray 701101

FUEL TANK

$14.99

$

Usually ships in 2-12 days

0

8

Murray 701103

CLAMP, Fuel Hose, Upper

$3.99

$

Usually ships in 2-12 days

0

9

Murray 701104

FUEL PIPE

$7.99

$

Usually ships in 2-12 days

0

10

Murray 701105

CLAMP, Fuel Hose, Lower

$3.49

$

Usually ships in 2-12 days

0

11

Murray 701106

SPRING, Fuel Pipe Protection

$

$

Not available

12

Murray 701102

BELT, Fuel Tank

$4.99

$

Usually ships in 2-12 days

0

13

Murray 701115

BELT

$26.99

$

Usually ships in 2-12 days

0

14

Murray 701116

CUSHION, Back

$33.99

$

Usually ships in 2-12 days

0

15

Murray 701117

BRACKET, Engine

$54.99

$

Usually ships in 2-12 days

0

16

Murray 701127

BRACKET, Back Cushion, Upper

$

$

Currently unavailable

17

Murray 701126

BRACKET, Back Cushion, Lower

$

$

Currently unavailable

18

Murray 701987

BOLT, M5 x 16

$

$

Not available

19

Murray 701118

BRACKET ASSEMBLY, Fuel Tank

$20.99

$

Usually ships in 2-12 days

0

20

* BOLT, M5 x 12

$

$

Not available

21

Murray 701128

NUT, M5

$

$

Currently unavailable

22

Murray 701988

BOLT, M6 x 16

$

$

Currently unavailable

23

Murray 701123

BRACKET, Front

$

$

Currently unavailable

24

Murray 701987

BOLT, M5 x 16

$

$

Not available

25

Murray 701122

BRACKET, Rear

$

$

Currently unavailable

26

Murray 701124

NUT, M10

$

$

Currently unavailable

27

Murray 701121

PLATE, Bracket

$

$

Currently unavailable

28

Murray 701989

BOLT, M6 x 40

$2.49

$

Usually ships in 3-10 days

0

29

Murray 701125

NUT, M6

$

$

Currently unavailable

30

Murray 701120

SHAFT

$11.99

$

Usually ships in 2-12 days

0

31

Murray 700399

BOLT, M5 x 12

$3.49

$

Usually ships in 2-12 days

0

32

Murray 701128

NUT, M5

$

$

Currently unavailable

33

Murray 701119

SEAT ASSEMBLY

$18.99

$

Usually ships in 2-12 days

0

34

Murray 701988

BOLT, M6 x 16

$

$

Currently unavailable

35

Murray 701130

SPRING

$4.99

$

Usually ships in 2-12 days

0

36

Murray 701125

NUT, M6

$

$

Currently unavailable

37

STOP RING, 26

Note: (Not a serviceable part. Order Kit Ref. No 109)

$

$

Not available

38

STOP RING, 10

Note: (Not a serviceable part. Order Kit Ref. No 109)

$

$

Not available

39

Murray 701991

BEARING

$5.49

$

Usually ships in 2-12 days

0

40

BEARING, 6000/P6

Note: (Not a serviceable part. Order Kit Ref. No 109)

$

$

Not available

41

Murray 702423

PINION

$15.99

$

Usually ships in 2-12 days

0

42

Murray 701134

CASE, Gear Box

$18.99

$

Usually ships in 2-12 days

0

43

Murray 700393

COVER, Blade

$5.99

$

Usually ships in 2-12 days

0

44

Murray 702424

GEAR

$16.99

$

Usually ships in 2-12 days

0

45

SPLINE SHAFT

Note: (Not a serviceable part. Order Kit Ref. No 109)

$

$

Not available

46

Murray 701992

BEARING

$

$

Currently unavailable

47

STOP RING, 32

Note: (Not a serviceable part. Order Kit Ref. No 109)

$

$

Not available

48

* BOLT, M6 x 20

$

$

Not available

49

* BOLT, M5 x 12

$

$

Not available

50

Murray 701993

BOLT, M6 x 12

$

$

Currently unavailable

51

Murray 701994

BOLT, M5 x 10

$

$

Currently unavailable

52

Murray 700394

GASKET, Spline

$6.49

$

Usually ships in 2-12 days

0

53

Murray 84007144

BLADE, Two Teeth

$12.99

$

Usually ships in 2-12 days

0

54

Murray 700841

HOLDER

$9.99

$

Usually ships in 2-12 days

0

55

Murray 701901

PROTECTOR, Blade

$6.49

$

Usually ships in 2-12 days

0

56

Murray 700773

WASHER, Wave, Dia 10

$3.49

$

Usually ships in 2-12 days

0

57

Murray 700397

NUT

$3.99

$

Usually ships in 2-12 days

0

58

BUMP HEAD BOX

$

$

Not available

59

Murray 84007145

COVER, Alloy Head

$7.99

$

Usually ships in 2-12 days

0

60

Murray 84007146

TRIMMER LINE (10 Pack)

$5.49

$

Usually ships in 2-12 days

0

64

Murray 701140

COVER, Drive Shaft, Rubber

$3.99

$

Usually ships in 2-12 days

0

65

Murray 700407

OIL BEARING

$3.49

$

Usually ships in 2-12 days

0

66

Murray 701139

DRIVE SHAFT

$26.99

$

Usually ships in 2-12 days

0

67

Murray 80090674

SHAFT, Straight, BP Brusch

$

$

Currently unavailable

69

* SCREW, M5 x 20

$

$

Not available

70

* WASHER

$

$

Not available

71

Murray 80090678

LEVEL, Throttle, Red

$

$

Currently unavailable

72

Murray 80090667

GASKET

$

$

Currently unavailable

73

Murray 80090668

PIN

$

$

Currently unavailable

74

Murray 80090669

THROTTLE COVER, Rear

$

$

Currently unavailable

75

Murray 80090670

THROTTLE COVER, Front

$

$

Currently unavailable

76

Murray 80090671

STOP RING. 2.5

$

$

Currently unavailable

77

* NUT-M5

$

$

Not available

79

Murray 702008

BOLT, M5 x 35
(Superseded to 703446)

$4.49

$

In Stock, Qty 5

0

80

Murray 702009

HANDLE

$

$

Currently unavailable

81

Murray 702010

HOLDER, Lower

$

$

Not available

82

Murray 80090843

COVER, Shaft Connection

$

$

Currently unavailable

83

Murray 701152

CONNECTOR, Straight Shaft

$15.99

$

Usually ships in 2-12 days

0

84

* BOLT, M5 x 12

$

$

Not available

85

Murray 702013

BOLT, M5 x 20

$2.49

$

Usually ships in 3-10 days

0

86

Murray 702014

BOLT, M5 x 30

$

$

Not available

87

Murray 702015

SHAFT, Flexible, Outer

$51.99

$

Usually ships in 2-12 days

0

88

Murray 702016

SHAFT, Flexible, Inner

$27.99

$

Usually ships in 2-12 days

0

89

Murray 702018

BOLT, M6 x 20

$

$

Currently unavailable

90

Murray 701157

CASE, Clutch

$20.99

$

Usually ships in 2-12 days

0

91

Murray 701159

PIN

$3.49

$

Usually ships in 2-12 days

0

92

Murray 701160

SPRING

$3.49

$

Usually ships in 2-12 days

0

93

Murray 701161

STOP RING, 5

$

$

Currently unavailable

94

STOP RING, 15

Note: (Not a serviceable part. Order Kit Ref. No 117)

$

$

Not available

95

BEARING, 6202-2Rz/P6

Note: (Not a serviceable part. Order Kit Ref. No 117)

$

$

Not available

96

STOP RING, 35

Note: (Not a serviceable part. Order Kit Ref. No 117)

$

$

Not available

97

Murray 701158

CLUTCH DRUM, Comp.

$19.99

$

Usually ships in 2-12 days

0

98

Murray 84007165

SAFETY GUARD

$60.99

$

Usually ships in 2-12 days

0

99

Murray 80090636

BOLT, M5 x 10

$

$

Currently unavailable

100

Murray 84007166

HOLDER, Safety

$3.99

$

Usually ships in 2-12 days

0

101

Murray 80090808

SEAT, Throttle Control

$

$

Currently unavailable

102

Murray 80090679

SWITCH, Stop, Red

$

$

Currently unavailable

106

Murray 701984

KIT, Fuel Cap Assembly

$6.49

$

Usually ships in 2-12 days

0

107

Murray 701983

KIT, Fuel Tank Assembly

$47.99

$

Usually ships in 2-12 days

0

108

Murray 701986

KIT, Back Belt Group

$

$

Currently unavailable

109

Murray 80090842

KIT, Gear Box Assembly

$

$

Currently unavailable

110

Murray 84007171

KIT, Blade Assembly

$32.99

$

Usually ships in 2-12 days

0

111

Murray 84007172

KIT, Alloy Head

$32.99

$

Usually ships in 2-12 days

0

112

Murray 80090675

KIT, Drive Shaft Assembly

$

$

Currently unavailable

113

Murray 80089033

KIT, Throttle Assembly

$

$

Currently unavailable

114

Murray 702007

KIT, Front Handle

$28.99

$

Usually ships in 2-12 days

0

115

Murray 702011

KIT, Shaft Connection, Group

$34.99

$

Usually ships in 2-12 days

0

116

Murray 701153

SHAFT ASSEMBLY, Flexible

$47.99

$

Usually ships in 2-12 days

0

117

Murray 702017

KIT, Clutch Assembly

$50.99

$

Usually ships in 2-12 days

0

120

Murray 84007173

KIT, Safety Guard

$33.99

$

Usually ships in 2-12 days

0

121

Murray 701985

LID, Fuel Tank, Comp.

$2.49

$

Usually ships in 3-10 days

0
