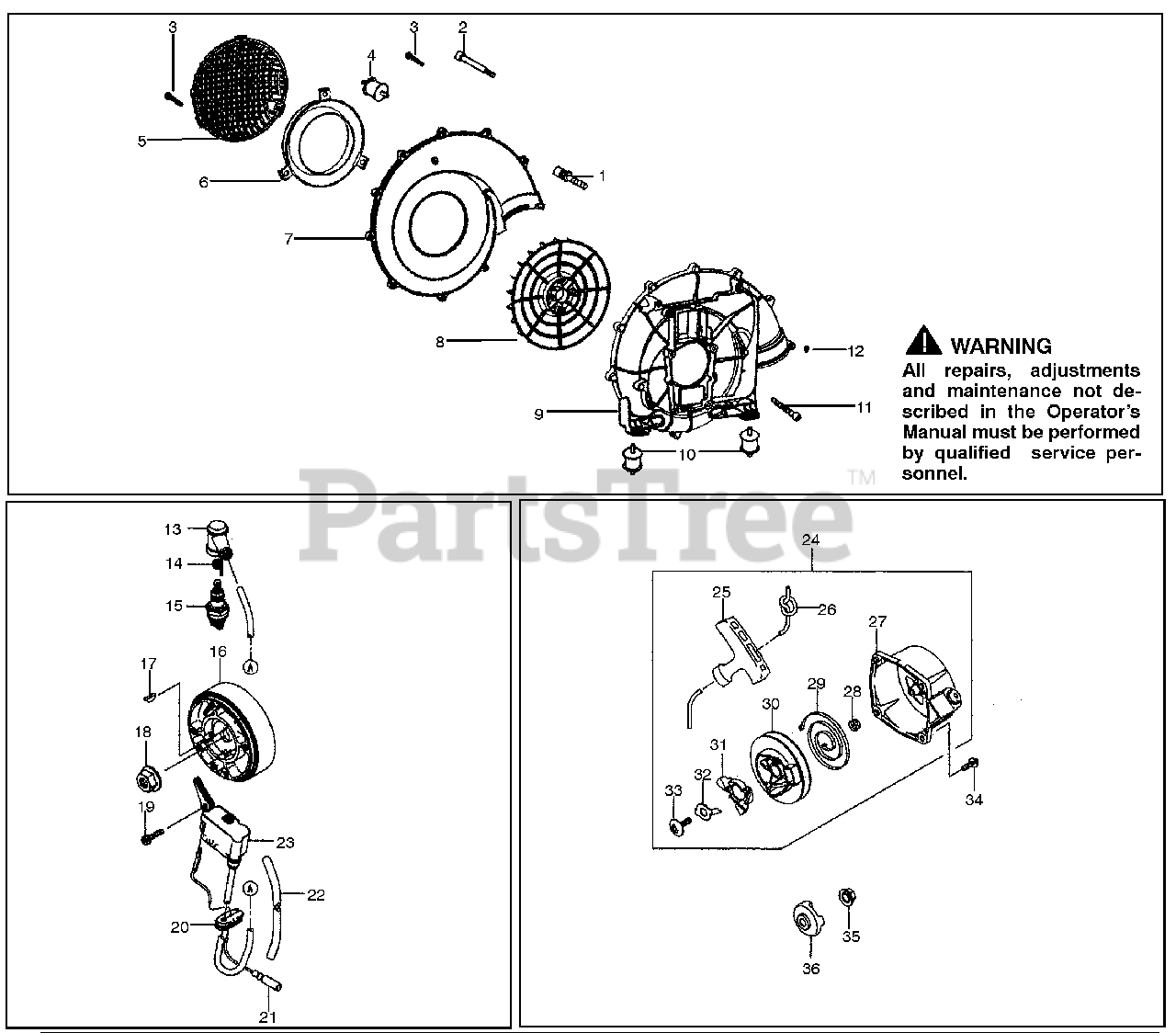

BP 406 - Poulan Pro Backpack Blower (Original) Housing Parts Diagram

Backpack Blower

Housing Parts Diagram

  • Title
1

Poulan 545145494

Screw m5x25

$2.49

$

Usually ships in 3-10 days

0

2

Poulan 545145498

Screw m5x65

$2.49

$

Usually ships in 3-10 days

0

3

Poulan 545145491

Screw-Tapping m5x20

$2.49

$

Usually ships in 3-10 days

0

4

Poulan 545145492

Vibro-Isolating rubber

$

$

Not available

5

Poulan 545145500

Cover-Fan

$14.99

$

Usually ships in 3-10 days

0

$7.49

$

Usually ships in 3-10 days

0

7

Poulan 545145493

Case-Fan

$91.99

$

Usually ships in 3-10 days

0

$72.99

$

Usually ships in 3-10 days

0

9

Poulan 545145496

Case-Fan

$121.99

$

Usually ships in 3-10 days

0

10

Poulan 545145492

Vibro-Isolating rubber

$

$

Not available

11

Poulan 545145497

Screw m6x30

$2.49

$

Usually ships in 3-10 days

0

12

Poulan 545145499

Nut-Nylon

$2.49

$

Usually ships in 3-10 days

0

13

Poulan 211302056

Cap-Spark plug

$

$

Not available

14

Poulan 211692051

Terminal

$

$

Not available

15

Poulan 920702113

Plug-Spark (BPMR7A(NGK) Solid)

$15.99

$

Usually ships in 3-10 days

0

16

Poulan 210502310

Flywheel

$91.99

$

Usually ships in 3-10 days

0

17

Poulan 545145464

Key-Woodruff

$3.99

$

Usually ships in 3-10 days

0

18

$4.99

$

Usually ships in 3-10 days

0

19

Poulan 921532079

Bolt m4x20

$2.49

$

Usually ships in 3-10 days

0

20

$3.99

$

Usually ships in 3-10 days

0

21

Poulan 260112379

Wire-Lead

$4.99

$

Usually ships in 3-10 days

0

22

Poulan 920592233

Tube 6x7.4x300

$2.49

$

Usually ships in 3-10 days

0

23

Poulan 211712246

Assy-Ignition coil

$

$

Not available

24

Poulan 490882540

Starter-Recoil

$

$

Not available

25

Poulan 460752153

Grip-Starter Recoil

$7.49

$

Usually ships in 3-10 days

0

26

Poulan 591062174

Rope-3.5x1000

$6.49

$

Usually ships in 3-10 days

0

27

Poulan 320992400

Case-Starter Recoil

$36.99

$

Usually ships in 3-10 days

0

28

$3.99

$

Usually ships in 3-10 days

0

29

Poulan 921452143

Spring-Recoil "A"

$19.99

$

Usually ships in 3-10 days

0

30

Poulan 591012117

Reel-Starter Recoil

$24.99

$

Usually ships in 3-10 days

0

31

Poulan 131652101

Pawl-Starter Recoil

$

$

Not available

32

Poulan 140202113

Retainer

$

$

Not available

33

$3.99

$

Usually ships in 3-10 days

0

34

Poulan 920092386

Screw m4x16

$2.49

$

Usually ships in 3-10 days

0

$2.49

$

Usually ships in 3-10 days

0

36

Poulan 490802198

Pulley-Starting

$

$

Not available
