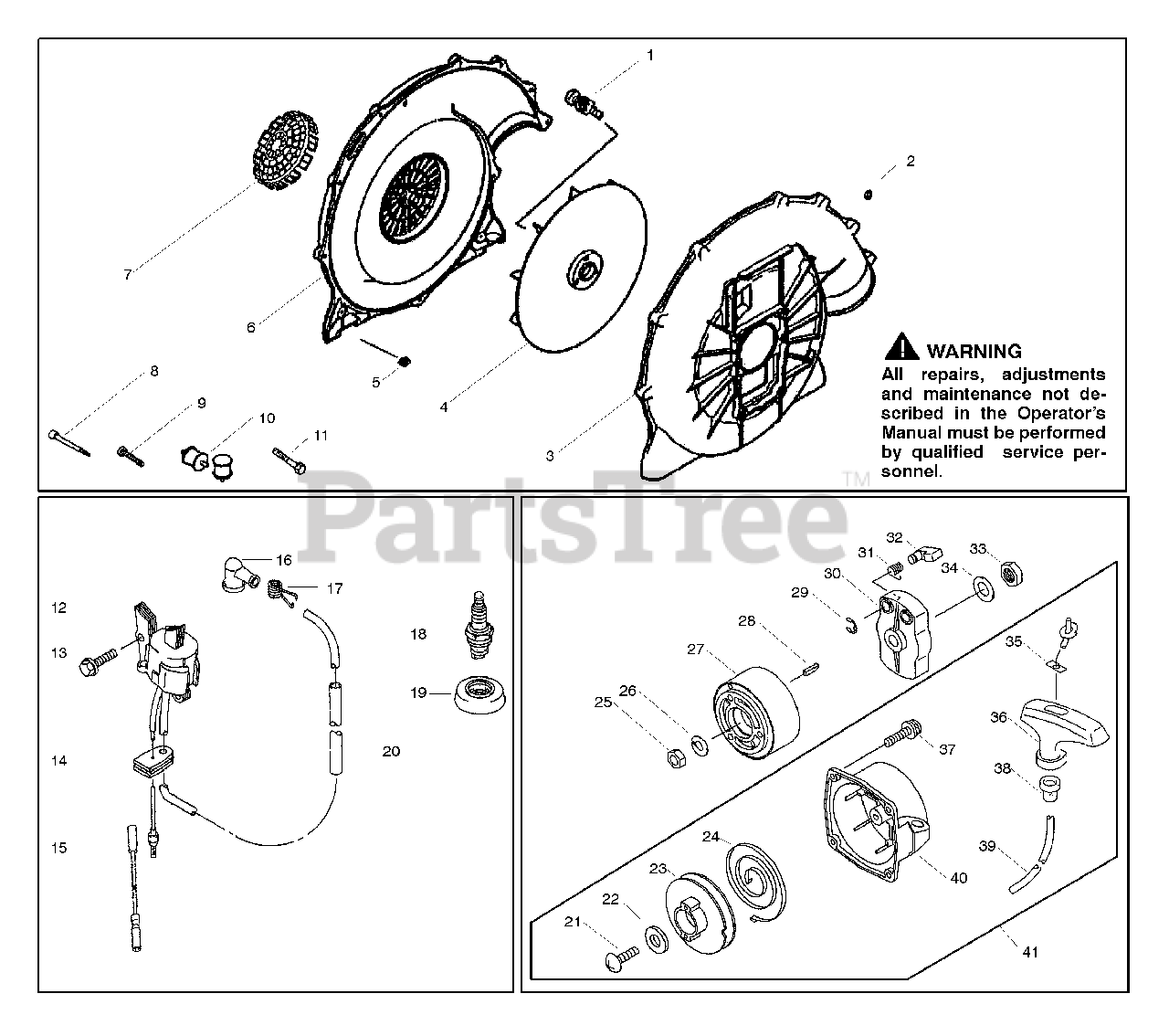

BP 402 - Poulan Pro Backpack Blower Housing & Ignition Assembly Parts Diagram

Backpack Blower

Housing & Ignition Assembly Parts Diagram

  • Title
1

Poulan 530058344

Bolt-Lock

$

$

Not available

2

Poulan 572L0600

Nut-Nylon

$

$

Not available

3

Poulan 51123-179

Case-Fan

$83.99

$

Usually ships in 3-10 days

0

$

$

Not available

5

$2.49

$

Usually ships in 3-10 days

0

6

Poulan 51123-178

Case-Fan

$

$

Not available

7

Poulan 36083-105

Cover-Fan

$

$

Not available

8

Poulan 412L0665

Screw-Socket

$2.99

$

Usually ships in 3-10 days

0

9

Poulan 470L0520

Screw-Tapping m5x20

$1.49

$

Usually ships in 3-10 days

0

10

Poulan 530089368

Isolator-Vibro Rubber

$

$

Not available

11

Poulan 530058346

Bolt-Lock

$1.49

$

Usually ships in 3-10 days

0

12

Poulan 530089445

Assy-Ignition Coil

$

$

Not available

$1.49

$

Usually ships in 3-10 days

0

14

$

$

Not available

15

Poulan 260112321

Wire-Lead

$4.99

$

Usually ships in 3-10 days

0

16

Poulan 530094085

Cap-Spark Plug

$

$

Not available

17

Poulan 530094086

Terminal

$1.49

$

Usually ships in 3-10 days

0

18

Poulan 920702107

Plug-Spark NGK (BPMR7A)solid

$

$

Not available

$3.99

$

Usually ships in 3-10 days

0

20

Poulan 920592233

Tube-6x7.4x300

$2.49

$

Usually ships in 3-10 days

0

21

$3.99

$

Usually ships in 3-10 days

0

22

$2.49

$

Usually ships in 3-10 days

0

23

Poulan 591012085

Reel-Starter Recoil

$24.99

$

Usually ships in 3-10 days

0

24

Poulan 921442038

Spring-Recoil

$24.99

$

Usually ships in 3-10 days

0

25

Poulan 314R1000

Nut-Hex (fine)
(Superseded to 545145454)

$2.49

$

Usually ships in 3-10 days

0

26

$

$

Not available

27

Poulan 210502260

Flywheel

$103.99

$

Usually ships in 3-10 days

0

$4.99

$

Usually ships in 3-10 days

0

29

Poulan 920332010

Ring-Snap

$2.49

$

Usually ships in 3-10 days

0

30

Poulan 490802155

Pulley-Starting

$

$

Not available

31

Poulan 921442046

Spring-Return
(Superseded to 531003367)

$

$

Not available

32

Poulan 131652070

Pawl-Recoil Starter

$3.99

$

Usually ships in 3-10 days

0

33

Poulan 315B0800

Nut-Hex (fine)
(Superseded to 545145455)

$1.49

$

Usually ships in 3-10 days

0

34

Poulan 410B0800

W-Plain-S

$0.99

$

Usually ships in 3-10 days

0

35

Poulan 131692386

Plate-Recoil Starter

$

$

Not available

36

Poulan 530058416

Grip-Recoil Starter

$

$

Not available

37

$

$

Not available

38

Poulan 130702064

Guide-Rope

$6.49

$

Usually ships in 3-10 days

0

39

Poulan 591062117

Rope 3.8x850

$12.99

$

Usually ships in 3-10 days

0

40

Poulan 320992210

Case-Recoil Starter

$

$

Not available

41

Poulan 490882380

Starter-Recoil

Note: (incl.# 21-40)

$

$

Not available
