BP 402 LE - Poulan Pro Backpack Blower Crankcase Parts Diagram

Backpack Blower

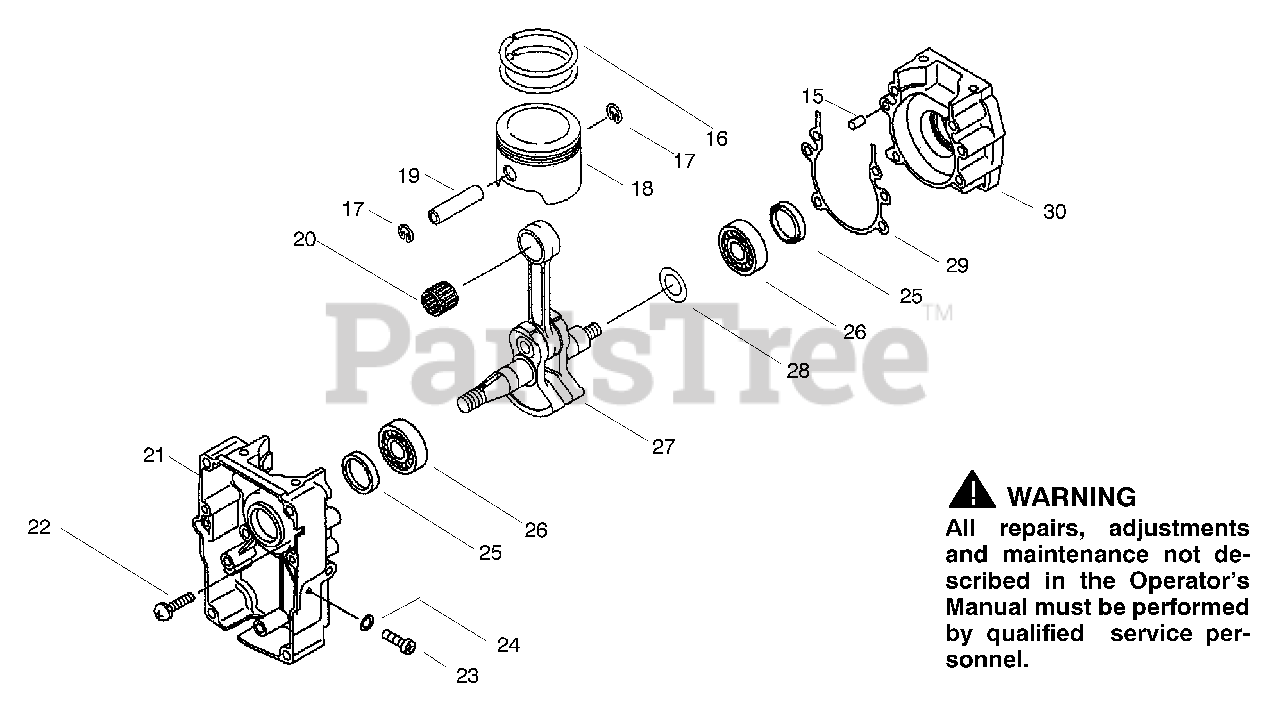

Crankcase Parts Diagram

  • Title

15

Poulan 551A0610

Pin-Dowel

$0.99

$

Usually ships in 3-10 days

0

16

Poulan 530094023

Ring-Piston Set

$26.99

$

Usually ships in 3-10 days

0

17

Poulan 920332058

Ring-Snap

$2.49

$

Usually ships in 3-10 days

0

18

Poulan 130012152

Piston-Engine

$

$

Not available

19

Poulan 130022065

Pin-Piston

$

$

Not available

20

Poulan 530094027

Bearing-Needle

$13.99

$

Usually ships in 3-10 days

0

21

Poulan 140022330

Crankcase

$78.99

$

Usually ships in 3-10 days

0

22

Poulan 223B0630

Screw-Pan-WS

$0.99

$

Usually ships in 3-10 days

0

23

Poulan 214B0608

Screw-Pan

$0.99

$

Usually ships in 3-10 days

0

24

Poulan 751Q0600

Gasket

$0.99

$

Usually ships in 3-10 days

0

25

Poulan 920492076

Seal-Oil

$21.99

$

Usually ships in 3-10 days

0

26

Poulan 920452005

Bearing-Ball 6202C3

$18.99

$

Usually ships in 3-10 days

0

27

Poulan 530058389

Assy-Crankshaft

Note: (incl. #20)

$

$

Not available

28

Poulan 920252134

Shim-T=0.10

$2.49

$

Usually ships in 3-10 days

0

28

Poulan 920252135

Shim-T=0.20

$2.49

$

Usually ships in 3-10 days

0

28

Poulan 530094030

Shim-T=0.40

$2.49

$

Usually ships in 3-10 days

0

28

Poulan 530058394

Shim-T=0.60

$2.49

$

Usually ships in 3-10 days

0

29

Poulan 110092521

Gasket-Crankcase

$2.49

$

In Stock, only 1 left!

0

30

Poulan 140026005

Crankcase

$78.99

$

Usually ships in 3-10 days

0
