BP 400 - Poulan Pro Backpack Blower Blower Assembly Parts Diagram

Backpack Blower

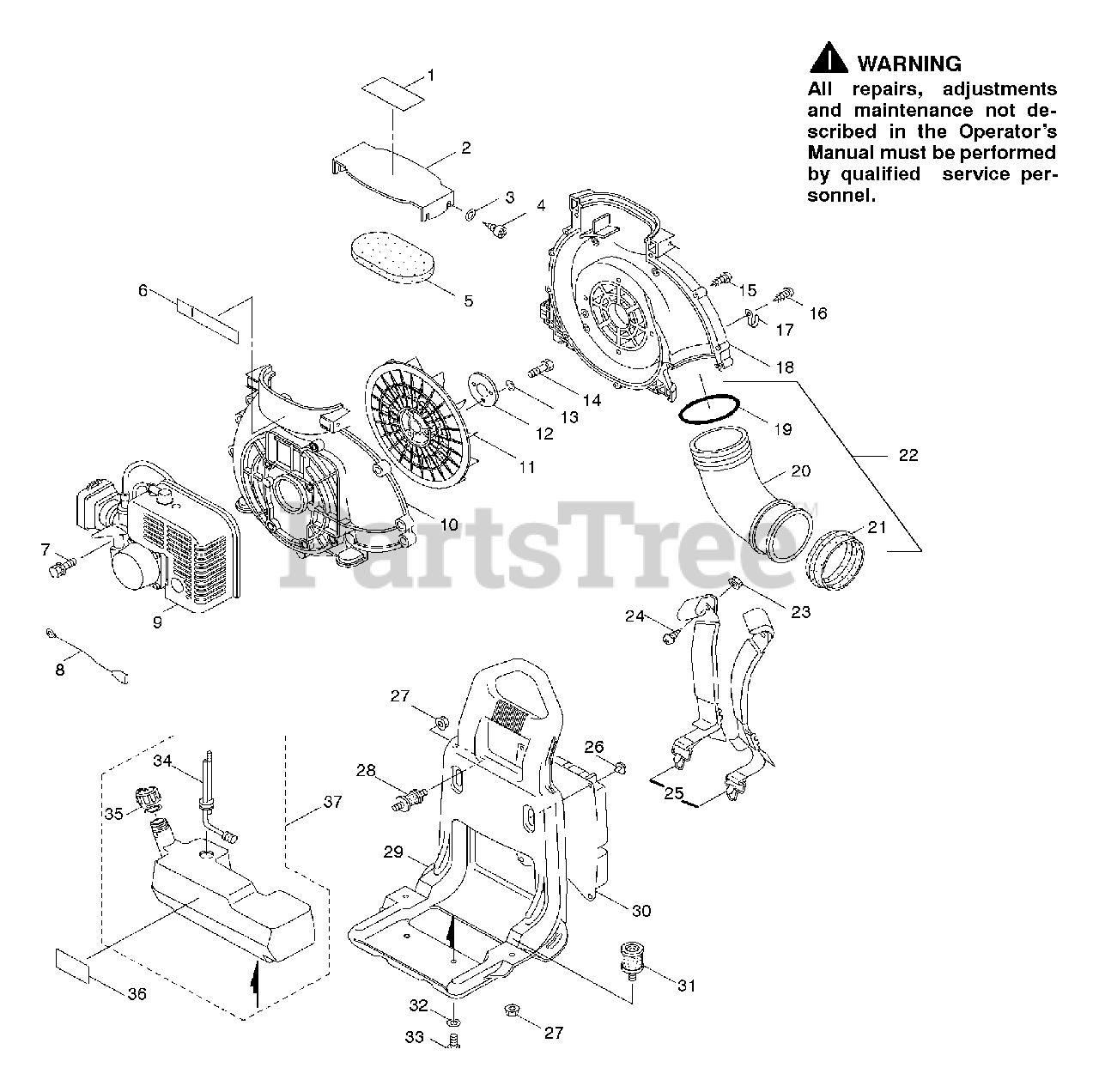

Blower Assembly Parts Diagram

  • Title

1

Poulan 530058370

Label - Model/Inst. (Not a serviceable part)

$

$

Not available

2

Poulan 530058351

Cover

$

$

Not available

3

Poulan 530058352

Washer - Cover screw

$

$

Not available

4

Poulan 530058353

Screw - Cover

$

$

Not available

5

Poulan 530058350

Packing

$

$

Not available

6

Poulan 530058371

Label - Warning (Not a serviceable part)

$2.49

$

Usually ships in 3-10 days

0

7

Poulan 530058337

Bolt

$2.49

$

Usually ships in 3-10 days

0

8

Poulan 530058338

Ground Wire

$3.99

$

Usually ships in 3-10 days

0

9

Poulan 530058336

Shroud
(Superseded to 490892370)

$

$

Not available

10

Poulan 530058339

Fan Housing - Rear

$

$

Not available

11

Poulan 530058341

Impeller

$

$

Not available

12

Poulan 530058342

Plate - Impeller

$

$

Not available

13

Poulan 530058343

Washer - Spring

$

$

Not available

14

Poulan 530058344

Bolt

$

$

Not available

15

Poulan 530058346

Screw - Fan Housing

$1.49

$

Usually ships in 3-10 days

0

16

Poulan 530058354

Screw - Clamp

$2.49

$

Usually ships in 3-10 days

0

17

Poulan 530058345

Clamp

$2.49

$

Usually ships in 3-10 days

0

18

Poulan 530058340

Fan Housing-Front

$

$

Not available

19

Poulan 530058347

O-Ring (large)

$

$

Not available

20

Poulan 530058348

Tube - Blower Outlet

$

$

Not available

21

Poulan 530058349

Joint - Rubber

$

$

Not available

22

Poulan 530071388

Kit-Tube & O-Ring

Note: (Incl. 19,20,21)

$

$

Not available

23

Poulan 530058358

Nut

$

$

Not available

24

Poulan 530058357

Bolt

$

$

Not available

25

Poulan 530058356

Assy. - Shoulder Strap

$79.99

$

In Stock, only 2 left!

0

26

Poulan 530058363

Fastener - Pad

$

$

Not available

27

Poulan 530058360

Nut

$2.49

$

Usually ships in 3-10 days

0

28

Poulan 530058359

Isolator - Top

$

$

Not available

29

Poulan 530058355

Frame

$

$

Not available

30

Poulan 530058362

Pad - Cushion

$

$

Not available

31

Poulan 530058361

Isolator - Bottom

$

$

Not available

32

Poulan 530058368

Washer

$

$

Not available

33

Poulan 530058369

Screw

$

$

Not available

34

Poulan 530058367

Fuel Filter Assy.

$125.99

$

Usually ships in 3-10 days

0

35

Poulan 530058366

Fuel Cap Assy.

$68.99

$

In Stock, only 1 left!

0

36

Poulan 530058372

Label-Fuel (Caution) (Not a serviceable part)

$2.49

$

Usually ships in 3-10 days

0

37

Poulan 530058364

Fuel Tank Assy.

Note: (Incl. 32,33,34 & 39)

$

$

Not available
