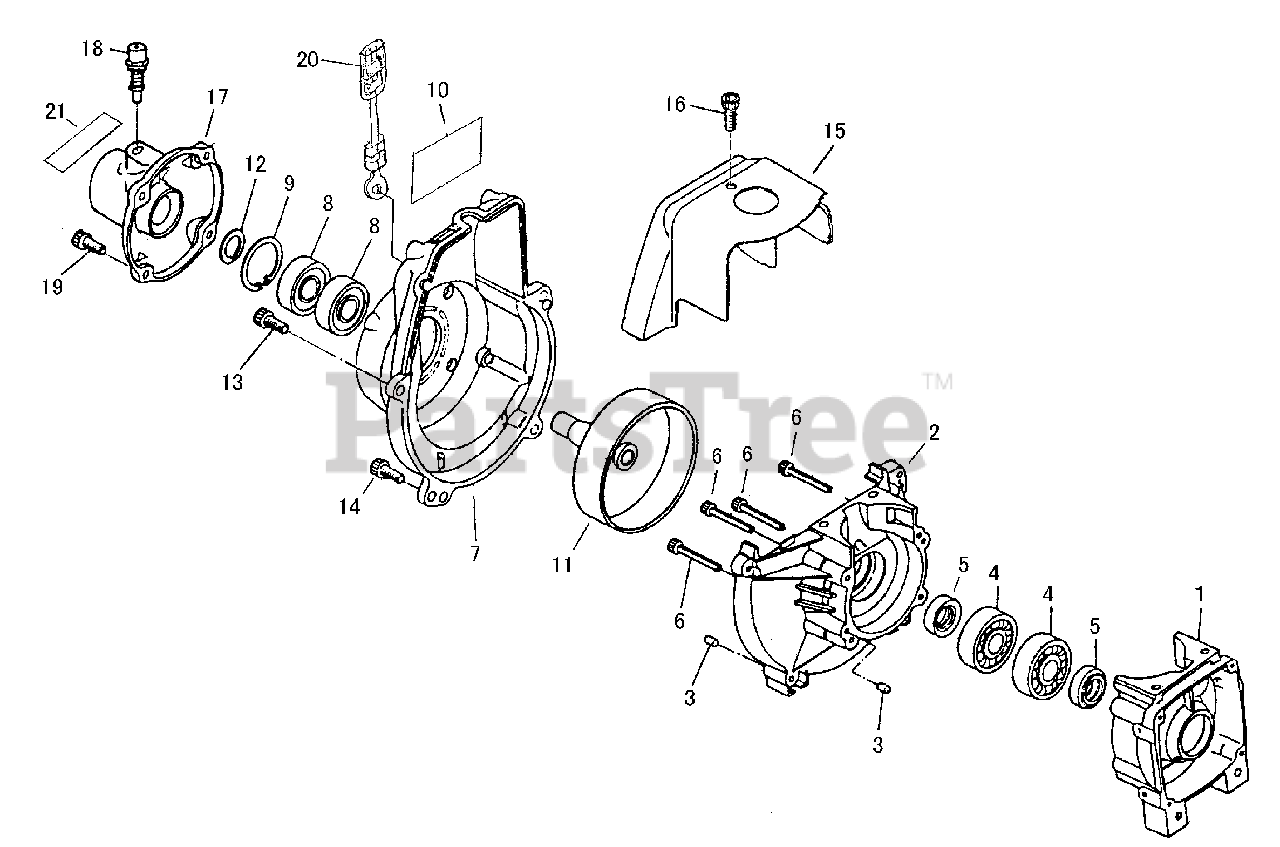

BP 40 LA - Shindaiwa Brush Cutter, Backpack Fan Cover / Engine Cover /Crankcase Parts Diagram

Brush Cutter, Backpack

Fan Cover / Engine Cover /Crankcase Parts Diagram

  • Title

1

Echo 70084-21110

CRANKCASE - REAR
(Superseded to A120000420)

$44.99

$

Usually ships in 2-4 days

0

2

Echo 70084-21121

CRANKCASE - FRONT
(Superseded to A120000440)

$42.99

$

Usually ships in 2-4 days

0

3

Echo 12492-50100

PIN - LOCATING

$2.49

$

Usually ships in 2-4 days

0

4

Echo 1290062020

BEARING, BALL - 6202C3
(Superseded to V592000290)

$7.49

$

Usually ships in 2-4 days

0

5

Echo 20010-21211

SEAL, OIL
(Superseded to V508000050)

$7.49

$

In Stock, Qty 12

0

6

Echo 01020-05300

SCREW - 5X30
(Superseded to 90010505030)

$1.49

$

In Stock, only 3 left!

0

7

Echo 70084-31111

CASE, FAN
(Superseded to A172001250)

$79.99

$

Usually ships in 2-4 days

0

8

Echo 02006-06002

BEARING, BALL - 6002
(Superseded to 90080206002)

$16.99

$

Usually ships in 2-4 days

0

9

Echo 02432-32120

RING, RETAINING - 32
(Superseded to 9242432000)

$0.99

$

In Stock, Qty 5

0

10

Echo 68503-91320

LABEL - TRADE
(Superseded to Discontinued)

$

$

Not available

11

Echo 70051-31210

DRUM, CLUTCH
(Superseded to A556000890)

$40.99

$

Usually ships in 2-4 days

0

12

Echo 20011-31230

RING, RETAINING
(Superseded to V583000180)

$0.99

$

Usually ships in 2-4 days

0

13

Echo 11022-05200

SCREW - 5X20
(Superseded to V203000350)

$0.99

$

In Stock, Qty 20+

0

14

Echo 11022-05350

SCREW - 5X35
(Superseded to V203000600)

$1.49

$

In Stock, Qty 6

0

15

Echo 70062-32110

COVER, ENGINE
(Superseded to A160001670)

$9.49

$

Usually ships in 2-4 days

0

16

Echo 11024-05140

SCREW - 5X14
(Superseded to V203001140)

$0.99

$

In Stock, only 1 left!

0

17

Echo 20051-35130

JOINT CASE
(Superseded to A570000210)

$32.99

$

Usually ships in 2-4 days

0

18

Echo 20112-35200

PIN ASSY
(Superseded to P021018640)

$10.99

$

Usually ships in 2-4 days

0

19

Echo 11022-05200

SCREW - 5X20
(Superseded to V203000350)

$0.99

$

In Stock, Qty 20+

0

20

Echo 20019-83131

CORD

$2.99

$

Usually ships in 2-4 days

0

21

Echo 70084-31160

LABEL - TRADE

$

$

Currently unavailable
