BP 33 (1697284-A) - Briggs & Stratton Brush Cutter Engine Group - BP33 Parts Diagram

Brush Cutter

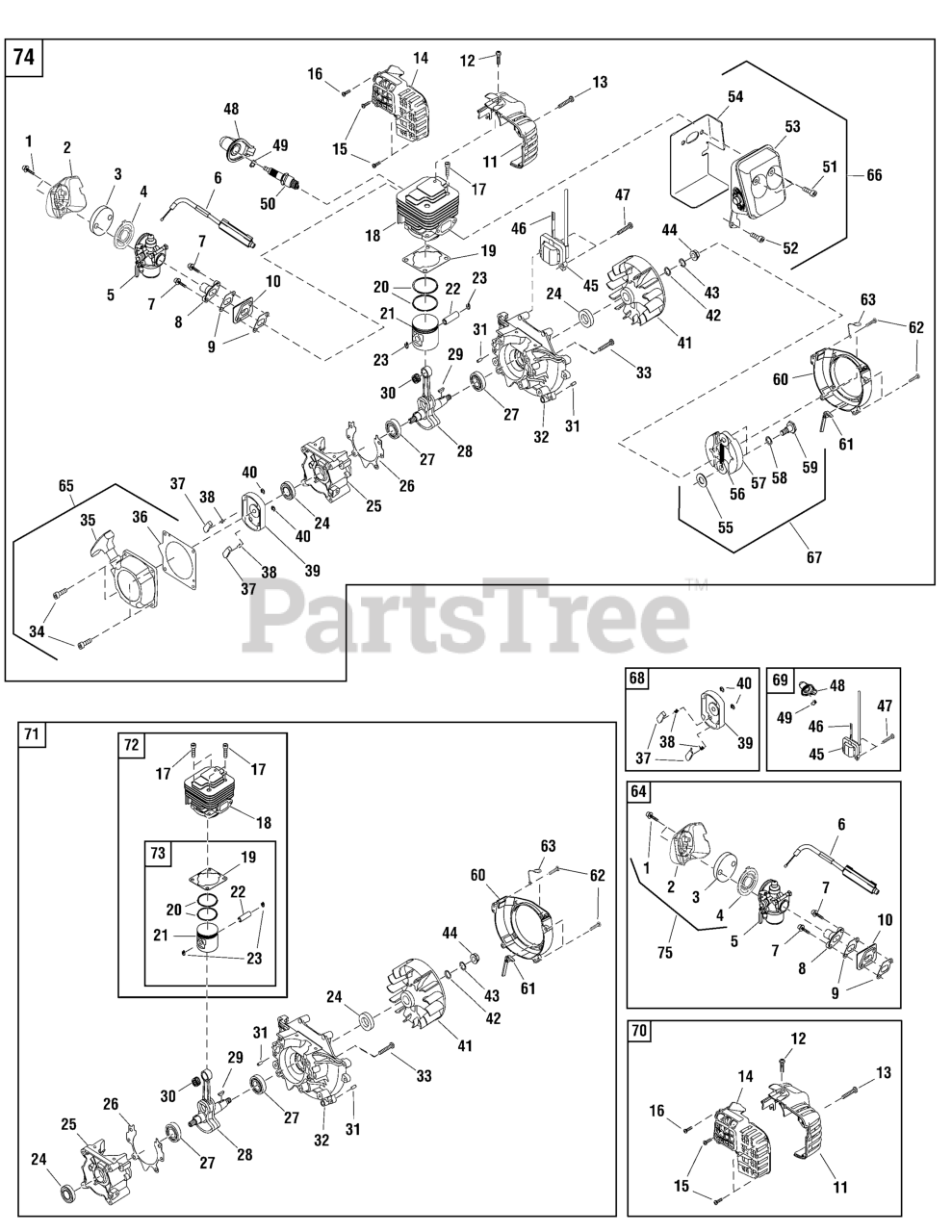

Engine Group - BP33 Parts Diagram

  • Title

1

Murray 701976

BOLT, M4 x 25

$2.49

$

Usually ships in 3-10 days

0

2

Murray 701977

COVER, Cleaner, Outer

$8.49

$

Usually ships in 2-12 days

0

3

Murray 701089

FILTER

$2.99

$

Usually ships in 2-12 days

0

4

Murray 701088

BRACKET, Filter Net

$2.99

$

Usually ships in 2-12 days

0

5

Murray 80090663

CARBURETOR, Ruixing

$

$

Currently unavailable

6

Murray 701978

FUEL CABLE ASSEMBLY

$13.99

$

Usually ships in 2-12 days

0

7

Murray 701979

BOLT, M5 x 25

$

$

Currently unavailable

8

Murray 701095

ADMITTING PIPE

$4.99

$

Usually ships in 2-12 days

0

9

Murray 700325

GASKET, Admitting Pipe

$3.49

$

Usually ships in 2-12 days

0

10

Murray 701094

GASKET

$5.49

$

Usually ships in 2-12 days

0

11

Murray 700762

SHROUD, Front

$20.99

$

Usually ships in 2-12 days

0

12

* BOLT, M5 x 16

$

$

Not available

13

* BOLT, M5 x 12

$

$

Not available

14

Murray 700812

SHROUD, Back

$25.99

$

Usually ships in 2-12 days

0

15

Murray 700764

SCREW, Self Tapping, 5 x 20

$2.99

$

Usually ships in 2-12 days

0

16

Murray 700765

SCREW, Self Tapping, 4.2 x 30

$2.99

$

Usually ships in 2-12 days

0

17

Murray 700391

BOLT, M5 x 18

$2.99

$

Usually ships in 2-12 days

0

18

Murray 701886

CYLINDER

$44.99

$

Usually ships in 2-12 days

0

19

Murray 700334

GASKET, Cylinder

$4.49

$

Usually ships in 2-12 days

0

20

Murray 700338

RING, Piston

$5.49

$

Usually ships in 2-12 days

0

21

Murray 700339

PISTON

$8.99

$

Usually ships in 2-12 days

0

22

Murray 700337

PIN, Piston

$4.49

$

Usually ships in 2-12 days

0

23

Murray 700314

RING, Pin Retain

$2.99

$

Usually ships in 2-12 days

0

24

Murray 700345

SEAL, Oil, 11.7 x 22 x 7

$3.99

$

Usually ships in 2-12 days

0

25

Murray 701888

CRANK CASE, Rear

$22.99

$

Usually ships in 2-12 days

0

26

Murray 700347

GASKET, Crank Case

$4.49

$

Usually ships in 2-12 days

0

27

Murray 700346

BEARING, 6201/P6

$4.99

$

Usually ships in 2-12 days

0

28

Murray 700817

CRANKSHAFT

$56.99

$

Usually ships in 2-12 days

0

29

Murray 700341

KEY, 3 x 5 x 13

$3.49

$

Usually ships in 2-12 days

0

30

Murray 700816

BEARING, Needle

$6.99

$

Usually ships in 2-12 days

0

31

Murray 700386

PIN, Cylindrical, B4 x 10

$2.99

$

Usually ships in 2-12 days

0

32

Murray 701887

CRANK CASE, Front

$22.99

$

Usually ships in 2-12 days

0

33

* BOLT, M5 x 30

$

$

Not available

34

* BOLT, M5 x 20

$

$

Not available

35

Murray 700809

KIT, Shroud Assembly

$29.99

$

Usually ships in 2-12 days

0

36

Murray 700329

STARTER PAD

$4.99

$

Usually ships in 2-12 days

0

37

STARTER CINCH

Note: (Not a serviceable part. Order Kit Ref. No 68)

$

$

Not available

38

SPRING, Starter

Note: (Not a serviceable part. Order Kit Ref. No 68)

$

$

Not available

39

STARTER BOX

Note: (Not a serviceable part. Order Kit Ref. No 68)

$

$

Not available

40

RING, Retainer

Note: (Not a serviceable part. Order Kit Ref. No 68)

$

$

Not available

41

Murray 701893

FLY WHEEL

$30.99

$

Usually ships in 2-12 days

0

42

Murray 700380

WASHER, Flat, Dia. 8

$2.99

$

Usually ships in 2-12 days

0

43

Murray 700379

WASHER, Spring, Dia. 8

$2.99

$

Usually ships in 2-12 days

0

44

Murray 700378

NUT, M8

$2.99

$

Usually ships in 2-12 days

0

45

Murray 701902

MAGNETO COIL

$52.99

$

Usually ships in 2-12 days

0

46

Murray 701981

CORD, Magneto

$5.49

$

Usually ships in 2-12 days

0

47

* BOLT, M5 x 20

$

$

Not available

48

Murray 700352

BOOT, Spark Plug

$6.49

$

Usually ships in 2-12 days

0

49

Murray 700351

CLIP, Spark Plug

$3.49

$

Usually ships in 2-12 days

0

50

Murray 700360

SPARK PLUG

$33.99

$

Usually ships in 2-12 days

0

51

* BOLT, M5 x 55-10.9

$

$

Not available

52

* BOLT, M5 x 12

$

$

Not available

53

Murray 702123

MUFFLER

$14.99

$

Usually ships in 2-12 days

0

54

Murray 700825

GASKET, Muffler

$13.99

$

Usually ships in 2-12 days

0

55

Murray 700383

WASHER, B

$3.49

$

Usually ships in 2-12 days

0

56

Murray 701897

SPRING, Clutch

$3.99

$

Usually ships in 2-12 days

0

57

Murray 701968

EXPANDER, Complete

$7.99

$

Usually ships in 2-12 days

0

58

Murray 700382

WASHER, Wave

$2.99

$

Usually ships in 2-12 days

0

59

Murray 700767

SCREW, Shaft

$4.49

$

Usually ships in 2-12 days

0

60

Murray 701889

COVER, Fan

$22.99

$

Usually ships in 2-12 days

0

61

Murray 700362

FLASH PAN

$3.49

$

Usually ships in 2-12 days

0

62

* BOLT, M5 x 20

$

$

Not available

63

Murray 701099

BRACKET

$

$

Currently unavailable

64

Murray 80090664

KIT, Air Cleaner & Carburetor

Note: (Includes Ref. Nos. 1, 2, 3, 4, 5, 6, 7, 8, 9 & 10)

$

$

Currently unavailable

65

Murray 701912

KIT, Starter Assembly

Note: (Includes Ref. Nos. 34, 35 & 36)

$30.99

$

Usually ships in 2-12 days

0

66

Murray 702124

KIT, Muffler Assembly

Note: (Includes Ref. Nos. 51, 52, 53 & 54)

$28.99

$

Usually ships in 2-12 days

0

67

Murray 701916

KIT, Expander Assembly

Note: (Includes Ref. Nos. 55, 56, 57, 58 & 59)

$20.99

$

Usually ships in 2-12 days

0

68

Murray 701892

KIT, Start Reel Assembly

Note: (Includes Ref. Nos. 37, 38, 39 & 40)

$5.99

$

Usually ships in 2-12 days

0

69

Murray 701980

KIT, Magneto Assembly

Note: (Includes Ref. Nos. 45, 46, 47, 48 & 49)

$67.99

$

Usually ships in 2-12 days

0

70

Murray 701920

KIT, Shroud Assembly

Note: (Includes Ref. Nos. 11, 12, 13, 14, 15 & 16)

$39.99

$

Usually ships in 2-12 days

0

71

Murray 701982

KIT, Cylinder Assembly

Note: (Includes Ref. Nos. 24, 25, 26, 27, 28, 29, 30, 31, 33, 42, 43, 44, 60, 61, 62, 63, 72 & 73)

$167.99

$

Usually ships in 2-12 days

0

72

Murray 702024

KIT, Cylinder Head

Note: (Includes Ref. Nos. 17, 18 & 73)

$47.99

$

Usually ships in 2-12 days

0

73

Murray 702025

KIT, Piston

Note: (Includes Ref. Nos. 19, 20, 21, 22 & 23)

$18.99

$

Usually ships in 2-12 days

0

74

Murray 80087695

ENGINE ASSEMBLY, Complete

$

$

Currently unavailable

75

Murray 702352

KIT, Air Cleaner

Note: (Includes Ref. Nos. 1, 2, 3 & 4)

$

$

Currently unavailable
