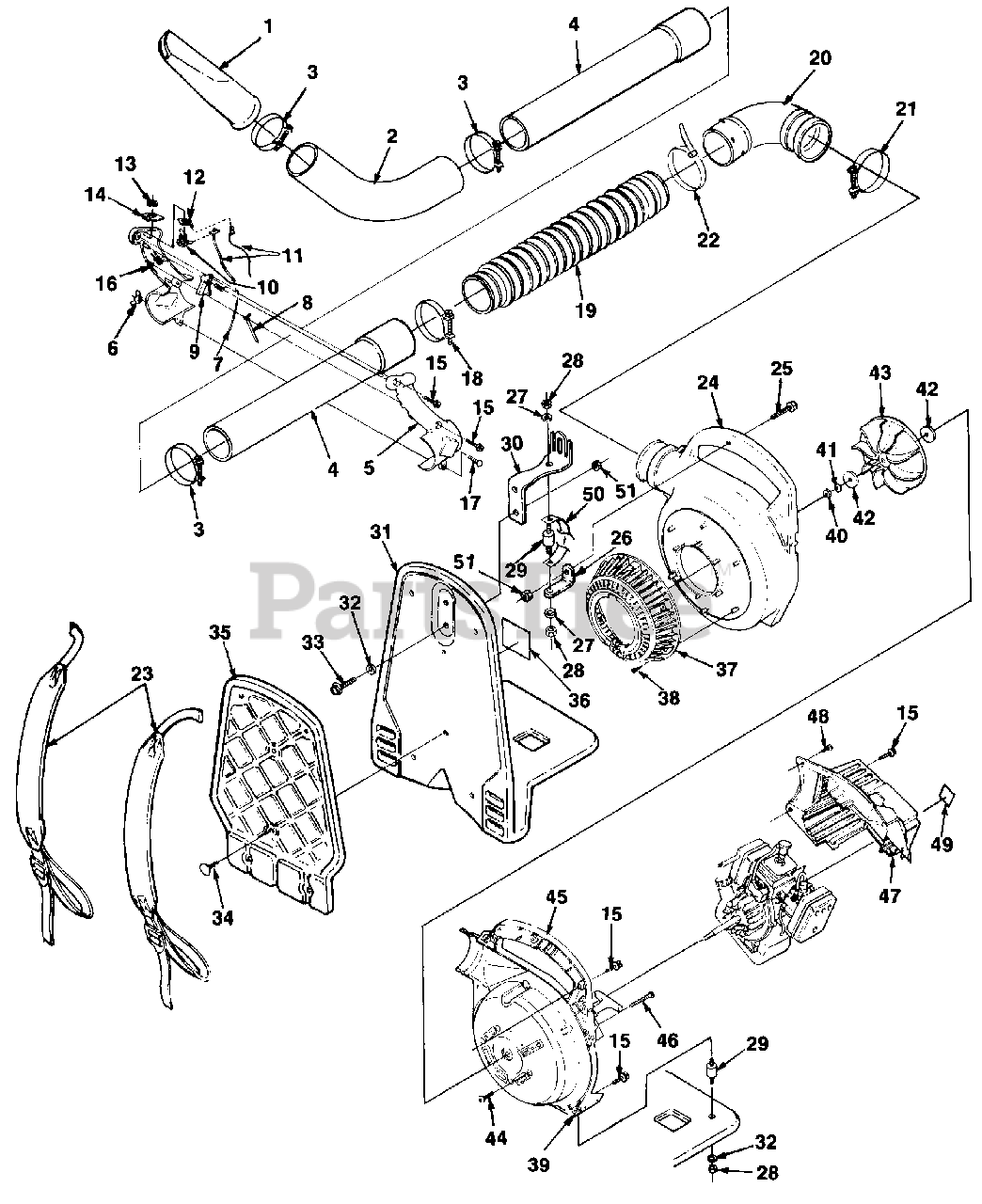

BP 250 (UT-08017-B) - Homelite Backpack Blower Blower Parts Diagram

Backpack Blower

Blower Parts Diagram

  • Title

1

Homelite 96329B

NOZZLE- Sweeper
(Superseded to UP05582)

$

$

Not available

2

Homelite 01774

TUBE- Curved
(Superseded to UP05582A)

$

$

Not available

3

Homelite 004333

CLAMP

$5.99

$

Usually ships in 3-7 days

0

4

Homelite A01780

TUBING- Straight

$

$

Currently unavailable

5

Homelite 95723A

HANDLE- Control (right)

$

$

Currently unavailable

6

Homelite 81281

NUT- Wing (10-24)

$

$

Not available

7

Homelite 01775

CABLE- Throttle
(Superseded to PA00666)

$13.99

$

Usually ships in 3-7 days

0

8

Homelite 95906A

LATCH- Trigger

$

$

Not available

9

Homelite 94452A

TRIGGER
(Superseded to UP04346)

$2.49

$

In Stock, only 4 left!

0

10

Homelite 93653

SWITCH- Toggle
(Superseded to UP04261)

$

$

Not available

11

Homelite A01777

LEAD & TERMINAL

$

$

Not available

12

Homelite 95782

WASHER- Grounding

$

$

Currently unavailable

13

Homelite 72084A1

NUT- Toggle Switch
(Superseded to UP04146)

$4.99

$

Usually ships in 3-7 days

0

14

Homelite 95231

PLATE- Indicating
(Superseded to UP04266)

$

$

Not available

15

Homelite 70771

SCREW- Thd. forming plastite (#10 x 3/4")
(Superseded to UP03900)

$1.99

$

In Stock, Qty 6

0

16

Homelite 95724A

HANDLE- Control (left)
(Superseded to UP03794A)

$

$

Not available

17

Homelite 82375

BOLT- Rib neck (10-24 x 7/8")

$

$

Not available

18

Homelite 004331

CLAMP

$5.99

$

Usually ships in 3-7 days

0

19

Homelite 01772

BELLOWS- Plastic

$

$

Not available

20

Homelite 01771

ELBOW- Curved
(Superseded to 580565001)

$3.99

$

In Stock, only 1 left!

0

21

Homelite 004335

CLAMP

$

$

Not available

22

Homelite JA375487

TIE- Cable
(Superseded to 900972001)

$

$

Not available

23

Homelite 01776

HARNESS- Shoulder

$

$

Not available

24

Homelite 003162

HOUSING- Volute (outer)

$

$

Not available

25

Homelite 82554

SCREW- (1/4-20 x 1 1/4")

$

$

Not available

26

Homelite 01765

BRACKET- Isolator
(Superseded to UP06885A)

$

$

Not available

27

Homelite 83061

WASHER- Lock

$

$

Not available

28

Homelite 81267

NUT- Hex (1/4-20)

$

$

Not available

29

Homelite 01770

ISOLATOR
(Superseded to 01770A)

$

$

Not available

30

Homelite 01764

BRACKET- Frame
(Superseded to 638085001)

$

$

Not available

31

Homelite 01763

FRAME
(Superseded to UP04405A)

$

$

Not available

32

Homelite 84006

WASHER- Flat (1/4")

$

$

Not available

33

Homelite 63407

SCREW- (1/4-20 x 3/4")

$

$

Not available

34

Homelite 01783

CLIP- Push

$4.99

$

Usually ships in 3-7 days

0

35

Homelite 02023

PAD- Foam
(Superseded to PS02023)

$23.99

$

Usually ships in 3-7 days

0

36

Homelite 01781

DECAL- Warning
(Superseded to UP04574)

$

$

Not available

37

Homelite 00320

GRILL

$

$

Not available

38

Homelite 82528

SCREW- Plastite (#6 x 3/8")

$2.49

$

Usually ships in 3-7 days

0

39

Homelite 81280

NUT- Square (1/4-20)
(Superseded to UP04341)

$

$

Not available

40

Homelite 81117

NUT- Hex (5/16-24)

$2.49

$

In Stock, only 1 left!

0

41

Homelite 70788

WASHER- Belleville (5/16")
(Superseded to UP06837)

$

$

Not available

42

Homelite 00380

WASHER- Fan

$

$

Not available

43

Homelite 00318

FAN- Blower
(Superseded to 000998274)

$

$

Not available

44

Homelite 82538

SCREW- Taptite (10-24 x 3/4")

$1.99

$

Usually ships in 3-7 days

0

45

Homelite A00814D

HOUSING- Volute (inner) w/decal

$

$

Currently unavailable

46

Homelite JA416903

SCREW-Hex hd. plastite (10 x 1 5/8")

$2.49

$

Usually ships in 3-7 days

0

47

Homelite 00321

SHROUD
(Superseded to UP06522A)

$

$

Not available

48

Homelite 82376

SCREW- Thd. forming (#8 x 1/2")
(Superseded to 660669001)

$1.49

$

In Stock, only 3 left!

0

49

Homelite 00772

DECAL- Choke/Run

$

$

Not available

50

Homelite 02541

SAFETY STRAP

$

$

Not available

51

Homelite 81204

NUT- Locking hex

$5.99

$

Usually ships in 3-7 days

0
