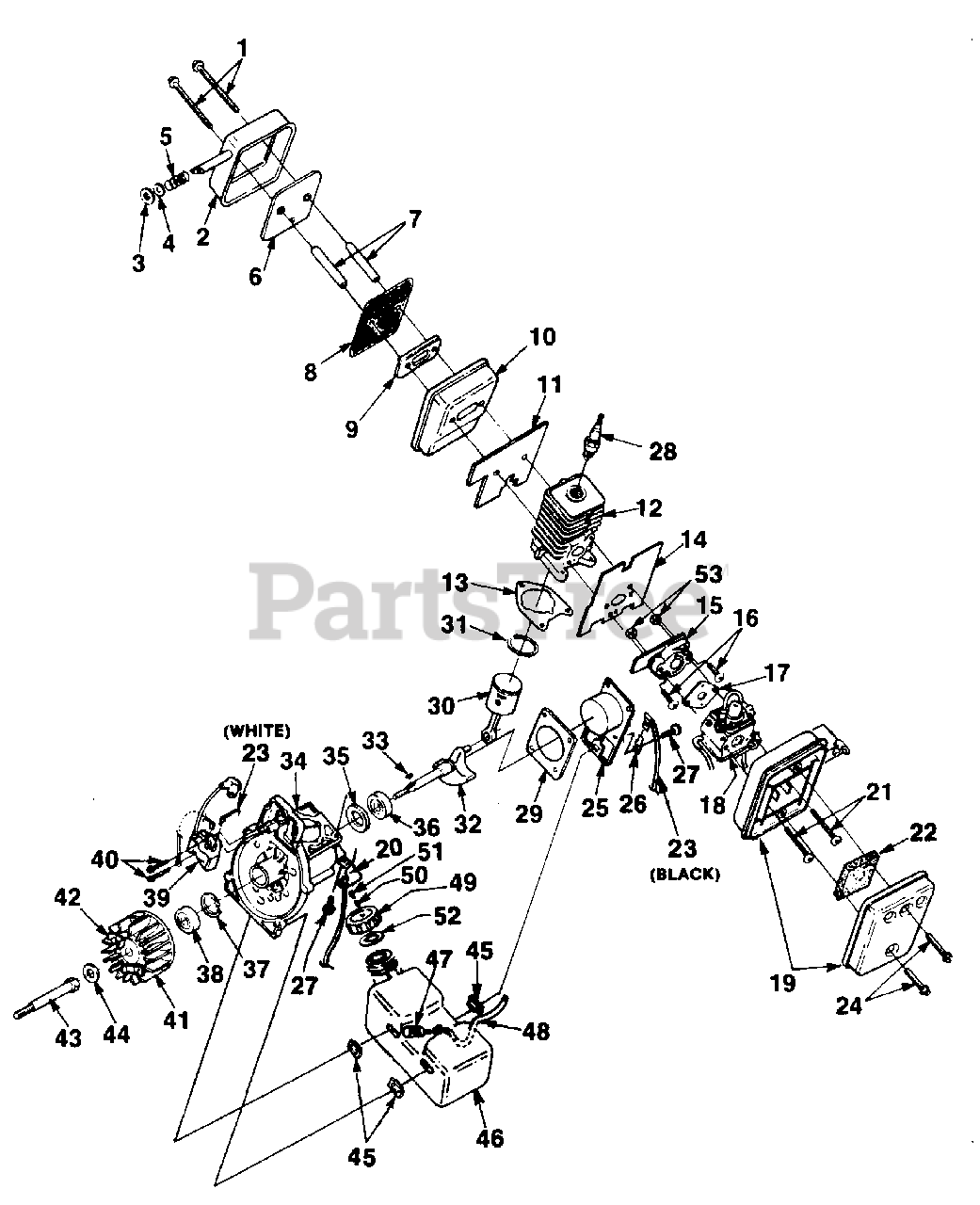

BP 250 (UT-08017-A) - Homelite Backpack Blower Engine & Peripherals Parts Diagram

Backpack Blower

Engine & Peripherals Parts Diagram

  • Title
1

Homelite 88060

SCREW- Sems hex hd. (10-24 x 2 1/2")
(Superseded to 660673001)

$2.49

$

Usually ships in 3-7 days

0

2

Homelite A00366

COVER- Muffler

$

$

Not available

3

Homelite 00381

WASHER- Insulating

$

$

Not available

4

Homelite 84117

WASHER- Flat

$

$

Not available

5

Homelite 00387

SPRING- Compression

$

$

Not available

6

Homelite 00777

DEFLECTOR- Muffler

$5.49

$

Usually ships in 3-7 days

0

7

Homelite 98860A

SPACER- Muffler
(Superseded to 04785)

$

$

Not available

8

Homelite 00388B

SCREEN- Spark Arrestor

$

$

Not available

9

Homelite 98783

PLATE- Reinforcing

$

$

Not available

10

Homelite A01323

BODY- Muffler
(Superseded to A04837)

$

$

Not available

11

Homelite 00394A

GASKET- Muffler
(Superseded to UP03817)

$

$

Not available

12

Homelite A00108

CYLINDER
(Superseded to UP07145A)

$74.99

$

In Stock, only 1 left!

0

13

Homelite 98764

GASKET
(Superseded to 900953001)

$

$

Not available

14

Homelite 00775A

GASKET- Heat dam
(Superseded to 900950001)

$1.49

$

In Stock, only 2 left!

0

15

Homelite 98768

HEAT DAM
(Superseded to 98768A)

$

$

Not available

16

Homelite 82549

SCREW
(Superseded to 82507)

$

$

Not available

17

Homelite 98766

GASKET- Carburetor
(Superseded to 900994004)

$

$

Not available

18

Homelite A01769

CARBURETOR (WT-150) Walbro

$

$

Currently unavailable

Homelite A01768

CARBURETOR (C1U-H13) Zama

$

$

Currently unavailable

19

Homelite A01440

BOX- Air filter

$

$

Currently unavailable

20

Homelite A01767

CABLE- Bracket

$

$

Not available

21

Homelite 82542

SCREW- Thd. forming (10-24 x 2 1/4")

$4.99

$

Usually ships in 3-7 days

0

22

Homelite D98760

FILTER- Air

$

$

Currently unavailable

23

Homelite A01777

LEAD & TERMINAL

$

$

Not available

24

Homelite 82368

SCREW- Thd. forming (8-16 x 3/4")
(Superseded to PS00055)

$

$

Not available

25

Homelite 98754

COVER- Crankcase
(Superseded to UP03914)

$19.99

$

Usually ships in 3-7 days

0

26

Homelite 00719

TERMINAL- Male tab
(Superseded to 02851)

$

$

Not available

27

Homelite 82538

SCREW- Taptite (#10-24 x 3/4")

$1.99

$

Usually ships in 3-7 days

0

28

Homelite 96169S

SPARK PLUG
(Superseded to UP03883)

$3.49

$

In Stock, only 3 left!

0

29

Homelite 98767

GASKET- Crankcase

$

$

Currently unavailable

30

Homelite A01036

PISTON & ROD ASSY.

$

$

Currently unavailable

31

Homelite 96935

RING- Piston
(Superseded to UP03838)

$

$

Not available

32

Homelite 987583

CRANKSHAFT

$

$

Currently unavailable

33

Homelite 69250

KEY- Woodruff

$

$

Not available

34

Homelite A00107

CRANKCASE ASSY.

$

$

Currently unavailable

35

Homelite 98800

SEAL- Shaft

$1.49

$

Usually ships in 3-7 days

0

36

Homelite 98797

BEARING- Ball

$

$

Not available

37

Homelite 98799

RING- Retaining

$4.99

$

In Stock, only 1 left!

0

38

Homelite 98798

BEARING- Ball
(Superseded to UP05589)

$14.99

$

Usually ships in 3-7 days

0

39

Homelite 02008

MODULE- Ignition (Sawafugi)

$

$

Not available

Homelite 94711CS

MODULE- Ignition (Phelon)

$

$

Not available

Homelite 94711CS

MODULE- Ignition (Sems-Walbro)

$

$

Not available

40

Homelite 82509

SCREW-Thd. forming (8-32 x 1")
(Superseded to UP03896)

$2.49

$

Usually ships in 3-7 days

0

41

Homelite A02010

ROTOR & STARTER PAWL Sawafugi (Black)

$

$

Not available

Homelite A95007

ROTOR & STARTER PAWL Phelon/Sems-Walbro (Silver)
(Superseded to UP04242)

$

$

Not available

42

Homelite A70285E

STARTER PAWL KIT

$101.99

$

Usually ships in 3-7 days

0

43

Homelite 00377

ADAPTER- Fan

$

$

Not available

44

Homelite 84065

WASHER- Flat (5/16")
(Superseded to UP04241)

$

$

Not available

45

Homelite 98792

BUMPER- Rubber

$1.49

$

Usually ships in 3-7 days

0

46

Homelite A01441

TANK- Fuel

$

$

Currently unavailable

47

Homelite 49422

FILTER- Fuel
(Superseded to PS03380)

$

$

Not available

48

Homelite 9477232

TUBING- Rubber
(Superseded to UP03905)

$

$

Not available

49

Homelite A00982

FUEL CAP ASSY.

$

$

Currently unavailable

50

Homelite 98819

VALVE- Duck Bill

$

$

Not available

51

Homelite 98913

FILTER
(Superseded to PS98913)

$4.99

$

Usually ships in 3-7 days

0

52

Homelite 98805

GASKET- Fuel cap
(Superseded to UP07294)

$

$

Not available

$

$

Not available
