BP 25 - Shindaiwa Brush Cutter, Backpack Throttle / Outer Tube Parts Diagram

Brush Cutter, Backpack

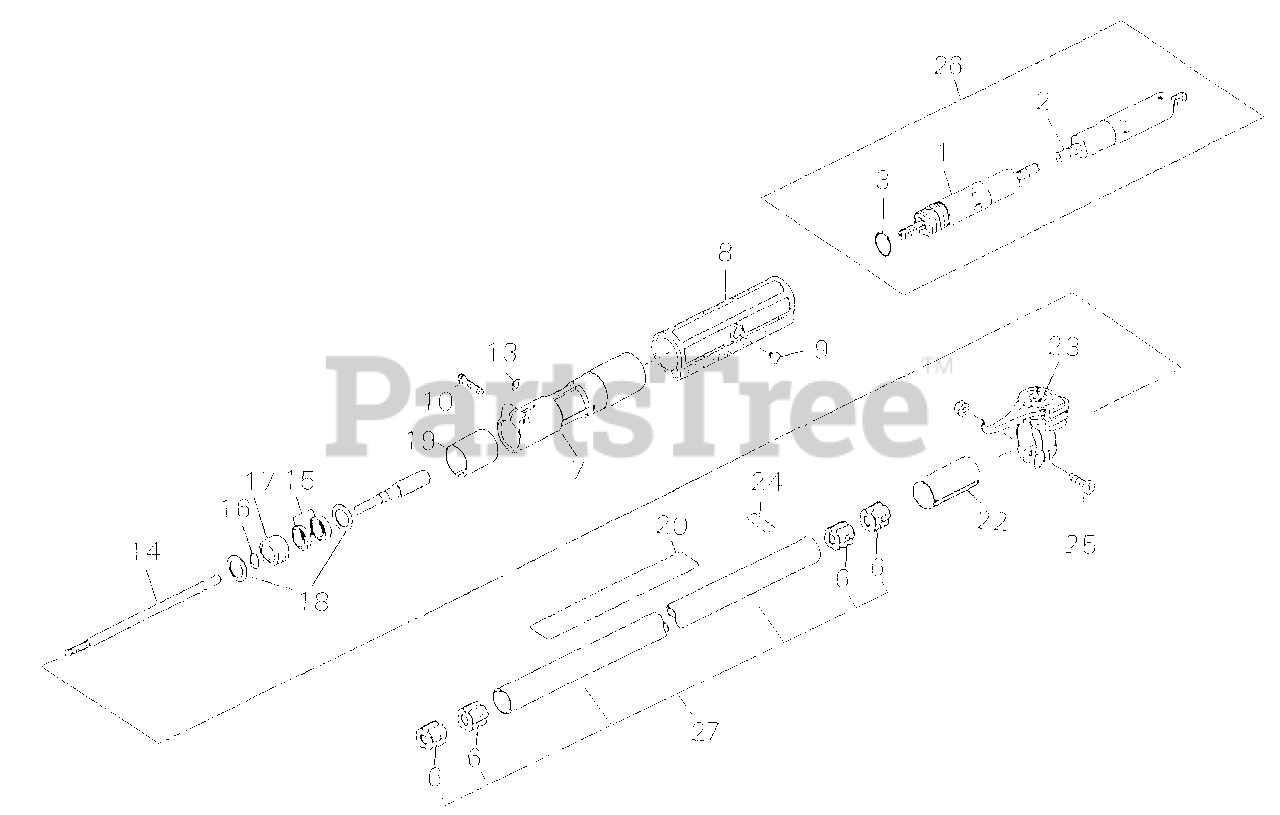

Throttle / Outer Tube Parts Diagram

  • Title
26

Echo 72062-11105

MAIN PIPE ASSY
(Superseded to C057000110)

$167.99

$

Usually ships in 2-4 days

0

1

Echo 72062-11113

PIPE, MAIN - FLEXIBLE
(Superseded to C508000070)

$148.99

$

Usually ships in 2-4 days

0

2

Echo 72062-11122

DRIVESHAFT - FLEXIBLE
(Superseded to C506000220)

$59.99

$

Usually ships in 2-4 days

0

3

Echo 22051-11140

O-RING
(Superseded to V581000240)

$2.49

$

Usually ships in 2-4 days

0

27

Echo 22055-12100

MAIN PIPE ASSY

$

$

Not available

6

Echo 22035-12121

BUSHING
(Superseded to C501000010)

$4.49

$

In Stock, Qty 6

0

7

Echo 22051-12311

CONNECTOR
(Superseded to C510000220)

$53.99

$

Usually ships in 2-4 days

0

8

Echo 22051-12320

GRIP
(Superseded to C412000470)

$11.99

$

Usually ships in 2-4 days

0

9

Echo 22051-12340

SCREW
(Superseded to V254000050)

$0.99

$

Usually ships in 2-4 days

0

10

Echo 11022-06280

SCREW - 6X28
(Superseded to V204000410)

$

$

Not available

13

$

$

Currently unavailable

14

Echo 22055-12410

DRIVESHAFT
(Superseded to Discontinued)

$

$

Not available

15

Echo 02002-06900

BEARING, BALL - 6900Z
(Superseded to 90085906900)

$20.99

$

In Stock, Qty 20+

0

16

Echo 02430-10100

RING, RETAINING - 10
(Superseded to 9242310000)

$0.99

$

Usually ships in 2-4 days

0

17

Echo 22050-12421

CUSHION
(Superseded to C503000090)

$2.49

$

Usually ships in 2-4 days

0

18

Echo 22050-12430

PLATE, THRUST
(Superseded to V312000020)

$0.99

$

Usually ships in 2-4 days

0

19

Echo 22055-12440

COLLAR
(Superseded to Discontinued)

$

$

Not available

20

Echo 19422-00031

LABEL - CAUTION
(Superseded to Discontinued)

$

$

Not available

22

Echo 22036-14130

SPACER
(Superseded to V363000130)

$3.99

$

Usually ships in 2-4 days

0

23

Echo 72062-14570

LEVER, THROTTLE
(Superseded to C044000390)

$11.99

$

Usually ships in 2-4 days

0

24

Echo 72017-12150

LABEL - ALIGNMENT
(Superseded to X524002380)

$0.99

$

Usually ships in 2-4 days

0

25

Echo 11203-05120

SCREW - 5X12
(Superseded to Discontinued)

$

$

Not available

29

Echo 19402-00024

LABEL - CAUTION
(Superseded to X505003200)

$0.99

$

In Stock, only 1 left!

0
