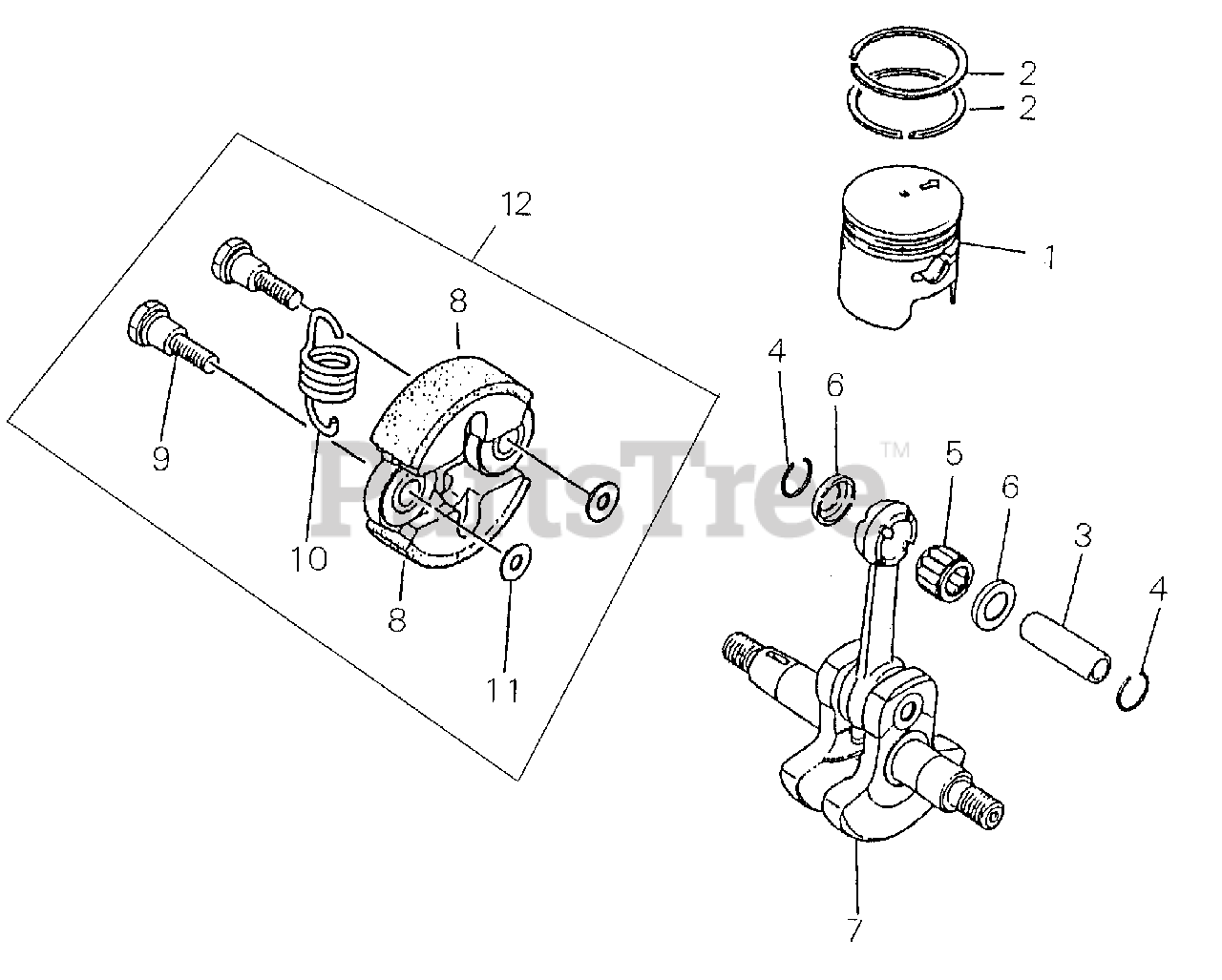

BP 25 - Shindaiwa Brush Cutter, Backpack Clutch, Piston Parts Diagram

Brush Cutter, Backpack

Clutch, Piston Parts Diagram

  • Title
1

Echo 20000-41111

PISTON
(Superseded to A100000620)

$29.99

$

In Stock, only 1 left!

0

2

Echo 20000-41210

RING, PISTON
(Superseded to A101000400)

$6.49

$

In Stock, only 2 left!

0

3

Echo 20000-41310

PIN, PISTON
(Superseded to V607000030)

$4.49

$

Usually ships in 2-4 days

0

4

Echo 20000-41320

RING, RETAINING
(Superseded to V580000090)

$5.49

$

In Stock, only 2 left!

0

5

Echo 37019-41230

BEARING, NEEDLE
(Superseded to 62901-41230)

$6.49

$

In Stock, only 2 left!

0

6

Echo 37019-41240

SPACER, PISTON
(Superseded to V392000020)

$2.49

$

In Stock, Qty 10

0

7

Echo 20000-42002

CRANKSHAFT ASSY
(Superseded to A011000780)

$92.99

$

Usually ships in 2-4 days

0

12

Echo 70140-51101

CLUTCH ASSY
(Superseded to 70140-51102)

$32.99

$

In Stock, Qty 20+

0

8

Echo 20035-51111

SHOE, CLUTCH
(Superseded to A553000070)

$11.99

$

Usually ships in 2-4 days

0

9

Echo 20087-51210

BOLT, CLUTCH
(Superseded to A557000040)

$2.99

$

Usually ships in 2-4 days

0

10

Echo 20035-51221

SPRING, CLUTCH
(Superseded to A566000060)

$1.99

$

In Stock, only 3 left!

0

11

Echo 22100-71430

WASHER - 6
(Superseded to V304000150)

$0.99

$

Usually ships in 2-4 days

0
