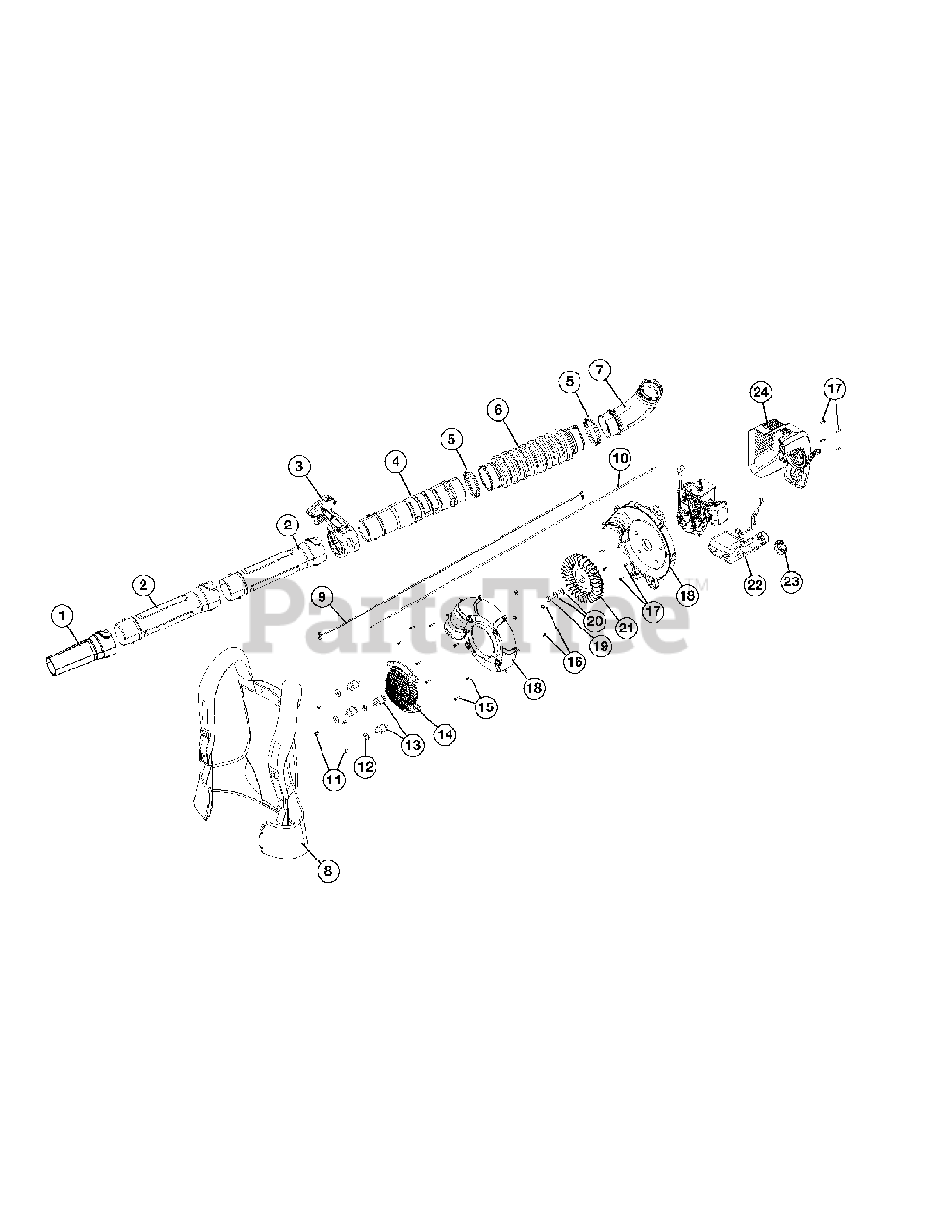

BP 226 (41AR2BPG950) - Cub Cadet Backpack Blower General Assembly Parts Diagram

Backpack Blower

General Assembly Parts Diagram

  • Title

1

Cub Cadet 753-06000

Nozzle

$13.99

$

In Stock, only 1 left!

0

2

Cub Cadet 753-05993

Lower Blower Tube

$

$

Not available

3

Cub Cadet 753-05652

Throttle Grip Assembly

$

$

Not available

4

Cub Cadet 753-05639

Upper Blower Tube
(Superseded to 753-05993)

$

$

Not available

5

Cub Cadet 726-04080

Clamp

$11.99

$

In Stock, Qty 10

0

6

Cub Cadet 753-05641

Flex Tube

$31.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 753-05642

Elbow

$

$

Not available

8

Cub Cadet 753-06141

Harness
(Superseded to 753-05645)

$108.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 753-05643

Lead Wire

$21.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 753-06018

Throttle Cable

$15.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 912-0442

Nut
(Superseded to 712-0442)

$

$

Not available

12

Cub Cadet 750-04929

Spacer

$4.49

$

In Stock, only 4 left!

0

13

Cub Cadet 753-05648

Insulator Mount

$14.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 753-05713

Intake Cover

$13.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 791-181345

Screw

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 791-180050

Nut
(Superseded to 712-0324)

$3.99

$

In Stock, Qty 16

0

17

Cub Cadet 791-181862

Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 753-05650

Impeller Housing Assembly

$74.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 791-182414

Bolt

$4.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 753-04482

Impeller Hardware

$9.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 753-05651

Impeller

$31.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 753-05654

Fuel Tank Assembly
(Superseded to 753-08721)

$25.99

$

In Stock, only 1 left!

0

23

Cub Cadet 791-182529

Fuel Cap

$21.99

$

In Stock, only 3 left!

0

24

Cub Cadet 753-06142

Starter Housing Assembly

$

$

Not available
