BP 2138 S (1696160-01) - Briggs & Stratton 38" Snow Thrower, 21.0 Gross TP (2013) Engine & Frame Group Parts Diagram

38" Snow Thrower, 21.0 Gross TP

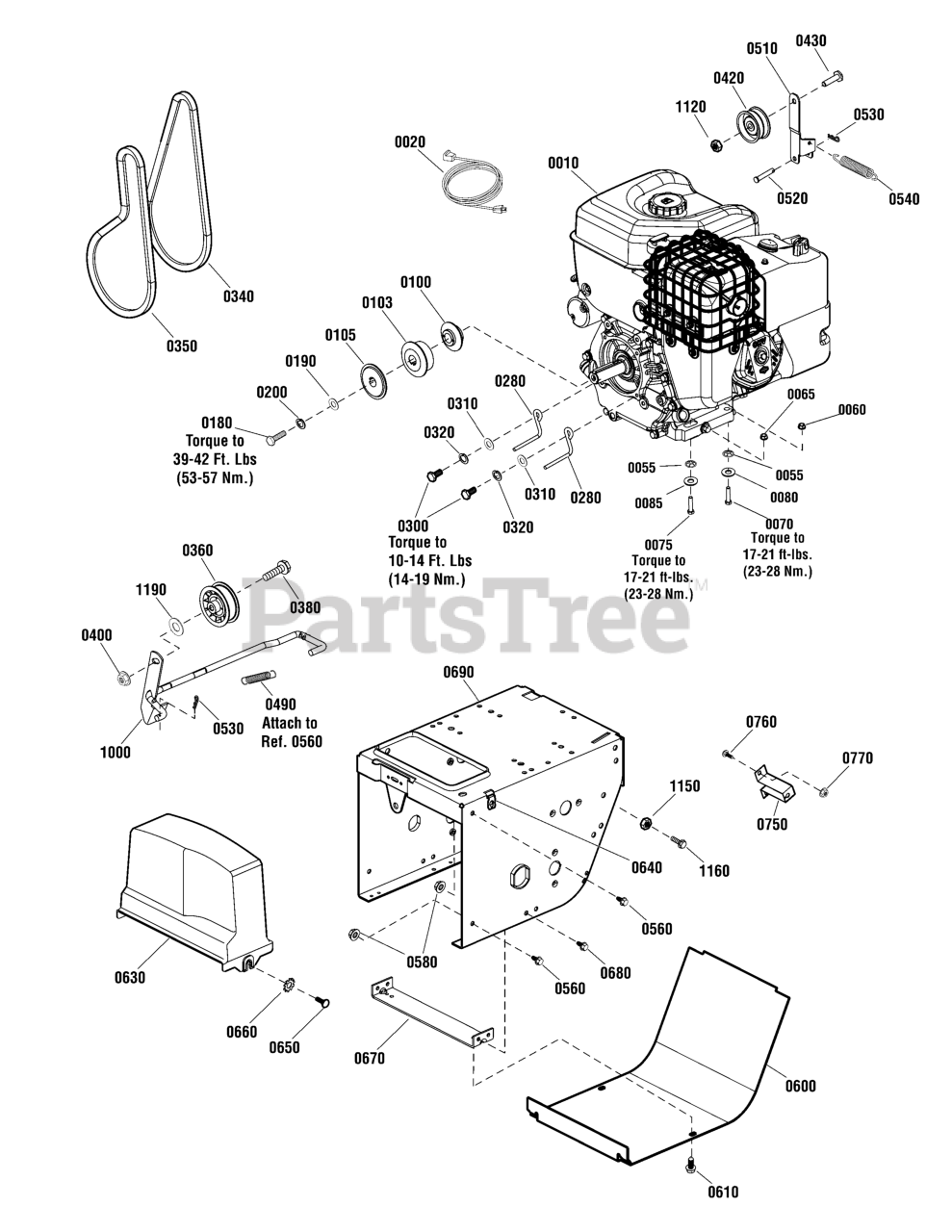

Engine & Frame Group Parts Diagram

  • Title

0010

Murray 25M317-0112-F1

* ENGINE, 21TP Briggs & Stratton

Note: (Engine Model: 25M317-0112-F1)

$

$

Currently unavailable

0020

Murray 6219MA

CORD, Electric, 10FT. 110V

$40.99

$

In Stock, only 2 left!

0

0055

Murray 720376

NUT, Push, 1/4
(Superseded to 028X76MA)

$4.49

$

Usually ships in 2-12 days

0

0060

Murray 1931211SM

NUT, Hex Flange, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

0065

Murray 1935041SM

NUT, Hex Flange, Whiz Lock 7/16-14

$1.99

$

Usually ships in 2-12 days

0

0070

Murray 1921971SM

CAPSCREW, Hex Head, 3/8-16 x 1-3/4, G5
(Superseded to 704289)

$4.99

$

In Stock, Qty 13

0

0075

Murray 1923027SM

CAPSCREW, Hex Head, 7/16-14 x 1-3/4, G5
(Superseded to 703171)

$3.99

$

In Stock, Qty 6

0

0080

Murray 71072MA

WASHER, Flat, 13/32

$4.49

$

In Stock, only 4 left!

0

0085

Murray 691113

WASHER, 3/4

$3.99

$

Usually ships in 2-12 days

0

0100

Murray 1726865SM

PULLEY, Engine, Inside

$42.99

$

Usually ships in 2-12 days

0

0103

Murray 1726866SM

PULLEY, Engine, Middle

$52.99

$

Usually ships in 2-12 days

0

0105

Murray 1726867SM

PULLEY, Engine, Outer

$39.99

$

Usually ships in 2-12 days

0

0180

Murray 1922128SM

CAPSCREW, Hex Head, 3/8-24 x 1-1/2, G8

$4.49

$

In Stock, only 1 left!

0

0190

Murray 1922755SM

WASHER, Flat, 1
(Superseded to 704128)

$4.99

$

In Stock, Qty 11

0

0200

Murray 1916965SM

LOCKWASHER, Spring, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

0280

Murray 1733014SM

STOP, Belt
(Superseded to 1739070YP)

$7.99

$

In Stock, Qty 5

0

0300

Murray 1921515SM

CAPSCREW, Hex Head, 5/16-24 x 3/4, G5

$3.99

$

Usually ships in 2-12 days

0

0310

Murray 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 8

0

0320

Murray 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0340

Murray 1754356YP

BELT, V, 4L

$29.99

$

Usually ships in 2-12 days

0

0350

Murray 1753942YP

BELT, CVT, 3L

$24.99

$

Usually ships in 2-12 days

0

0360

Murray 1726348SM

PULLEY, Idler, 2-3/4

$24.99

$

In Stock, Qty 7

0

0380

Murray 2860709SM

SCREW, Hex Flange, Whiz Lock, 3/8-16 1-3/4
(Superseded to 703812)

$4.49

$

Usually ships in 2-12 days

0

0400

Murray 1928352SM

NUT, Hex Flange, Whiz Lock, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, Qty 5

0

0420

Murray 1668477SM

PULLEY, Idler, With Bearing, 2-1/4 OD 0.378 ID

$23.99

$

In Stock, Qty 20+

0

0430

Murray 1960647SM

SCREW, Hex Head, 3/8-16 x 1-1/2

$7.49

$

Usually ships in 2-12 days

0

0490

Murray 2159106SM

SPRING, Extension, 4-1/4"
(Superseded to 703144)

$5.99

$

In Stock, Qty 6

0

0510

Murray 1703046BMYP

ARM, Idler

$18.99

$

Usually ships in 2-12 days

0

0520

Murray 1665994SM

PIN, 5/16 x 1-3/4
(Superseded to 703145)

$3.99

$

In Stock, only 3 left!

0

0530

Murray 1722460SM

HAIRPIN
(Superseded to 703430)

$3.49

$

In Stock, only 2 left!

0

0540

Murray 1727149SM

SPRING, Extension, 5.83"
(Superseded to 703146)

$

$

Not available

0560

Murray 9357MA

SCREW, Whiz Lock, 5/16-18 x 3/4, G5
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

0580

Murray 1927557SM

NUT, Hex Flange, Whiz Lock, 5/16-18, G5

$4.99

$

Usually ships in 2-12 days

0

0600

Murray 1726870BSYP

COVER, Bottom

$95.99

$

Usually ships in 2-12 days

0

0610

Murray 1925003SM

SCREW, Hex Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 7

0

0630

Murray 1725287SM

COVER, Belt
(Superseded to 706414)

$

$

Not available

0640

Murray 1935255SM

NUT, Speed, Lug Type, 5/16-18

$3.49

$

In Stock, only 3 left!

0

0650

Murray 1918249SM

SCREW, 5/16-18 X 3/4, Slotted Truss Head, Blk

$4.99

$

Usually ships in 2-12 days

0

0660

Murray 7090395YP

WASHER, External Tooth, 5/16
(Superseded to 703138)

$3.99

$

In Stock, Qty 7

0

0670

Murray 1727004BMYP

SUPPORT, Tie Bar

$14.99

$

Usually ships in 2-12 days

0

0680

Murray 25X021MA

SCREW, Washer Head, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0690

Murray 1754350BSYP

FRAME

$296.99

$

Usually ships in 2-12 days

0

0750

Murray 1720404BMYP

SUPPORT, Clutch Cable

$12.99

$

Usually ships in 2-12 days

0

0760

Murray 1931317SM

BOLT, Carriage, Short Neck, 1/4-20 x 3/4, G5
(Superseded to 703101)

$3.99

$

In Stock, only 3 left!

0

0770

Murray 1960685SM

NUT, KEPS, 1/4-20
(Superseded to 703061)

$3.49

$

In Stock, Qty 13

0

1000

Murray 1729646BMYP

CLUTCH ROD

$117.99

$

Usually ships in 2-12 days

0

1120

Murray 1928731SM

NUT, Hex, Top Lock JAM, 3/8-16

$4.99

$

In Stock, only 1 left!

0

1150

Murray 1920161SM

NUT, Hex, JAM 5/16-18

$4.49

$

In Stock, only 2 left!

0

1160

Murray 001X84MA

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

1190

Murray 1924874SM

WASHER, Flat, 5/16
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0
