BP 2138 S (1696160-01) - Briggs & Stratton 38" Snow Thrower, 21.0 Gross TP (2013) Auger Housing Group Parts Diagram

38" Snow Thrower, 21.0 Gross TP

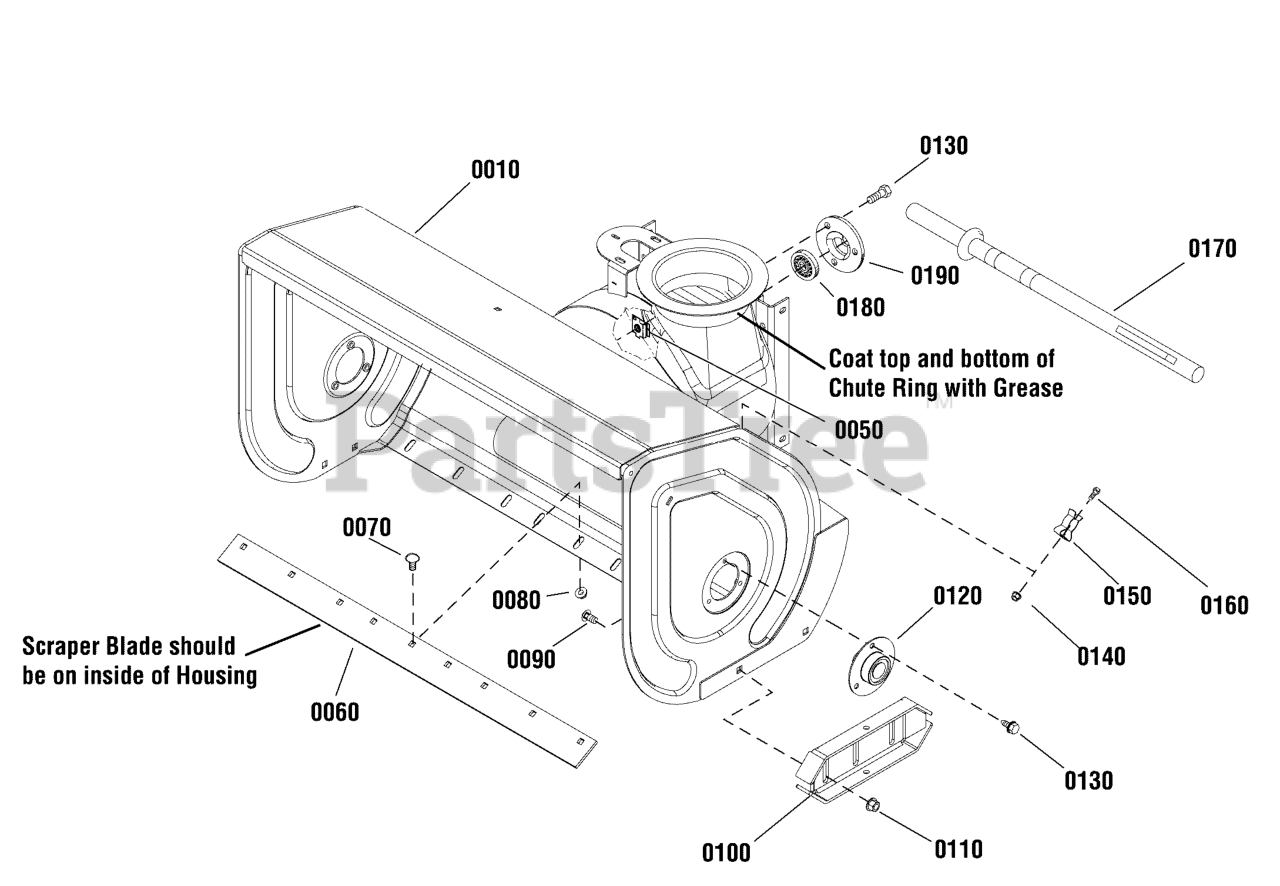

Auger Housing Group Parts Diagram

  • Title

0010

Murray 1687715YP

AUGER HOUSING KIT, 38"

$740.99

$

Usually ships in 2-12 days

0

0050

Murray 1930659SM

RETAINER, Nut, 5/16-18

$5.99

$

Usually ships in 2-12 days

0

0060

Murray 1709948BMYP

BLADE, Scraper, 32"

$58.99

$

In Stock, only 3 left!

0

0070

Murray 703225

BOLT, Carriage, 5/16-18 x 3/4

$3.99

$

In Stock, Qty 20+

0

0080

Murray 1935048SM

NUT, Hex Flange Two Way Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

0090

Murray 1960702SM

BOLT, Carriage, 3/8-16 x 1
(Superseded to 703814)

$4.49

$

In Stock, only 4 left!

0

0100

Murray 1725747BMYP

SHOE, Skid

$92.99

$

In Stock, Qty 5

0

0110

Murray 703158

NUT, Hex Flange, 3/8-16

$3.49

$

Usually ships in 2-12 days

0

0120

Murray 703411

BEARING ASSEMBLY, Ball, With Flange & Roll Pin
(Superseded to 772167)

$51.99

$

Usually ships in 2-12 days

0

0130

Murray 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0140

Murray 703412

NUT, Nylock, 10 x 24

$4.49

$

In Stock, only 2 left!

0

0150

Murray 1736620YP

CLAMP, Spring

$6.49

$

In Stock, only 3 left!

0

0160

Murray 1960569SM

SCREW, Truss Head Torx, 10-24 x 3/8
(Superseded to 706144)

$4.49

$

Usually ships in 2-12 days

0

0170

Murray 1736094YP

STICK, Cleanout, With Brush

$34.99

$

In Stock, Qty 7

0

0180

Murray 2108202SM

BEARING, Ball, 3/4ID x 1-3/4OD x 5/8 Long

$11.99

$

In Stock, Qty 20+

0

0190

Murray 1665982SM

RETAINER, Bearing

$6.99

$

In Stock, Qty 20+

0
