BP 2132 SE (1696482-00) - Briggs & Stratton 32" Snow Thrower, 21.0 Gross TP (2015) Handle & Controls Group Parts Diagram

32" Snow Thrower, 21.0 Gross TP

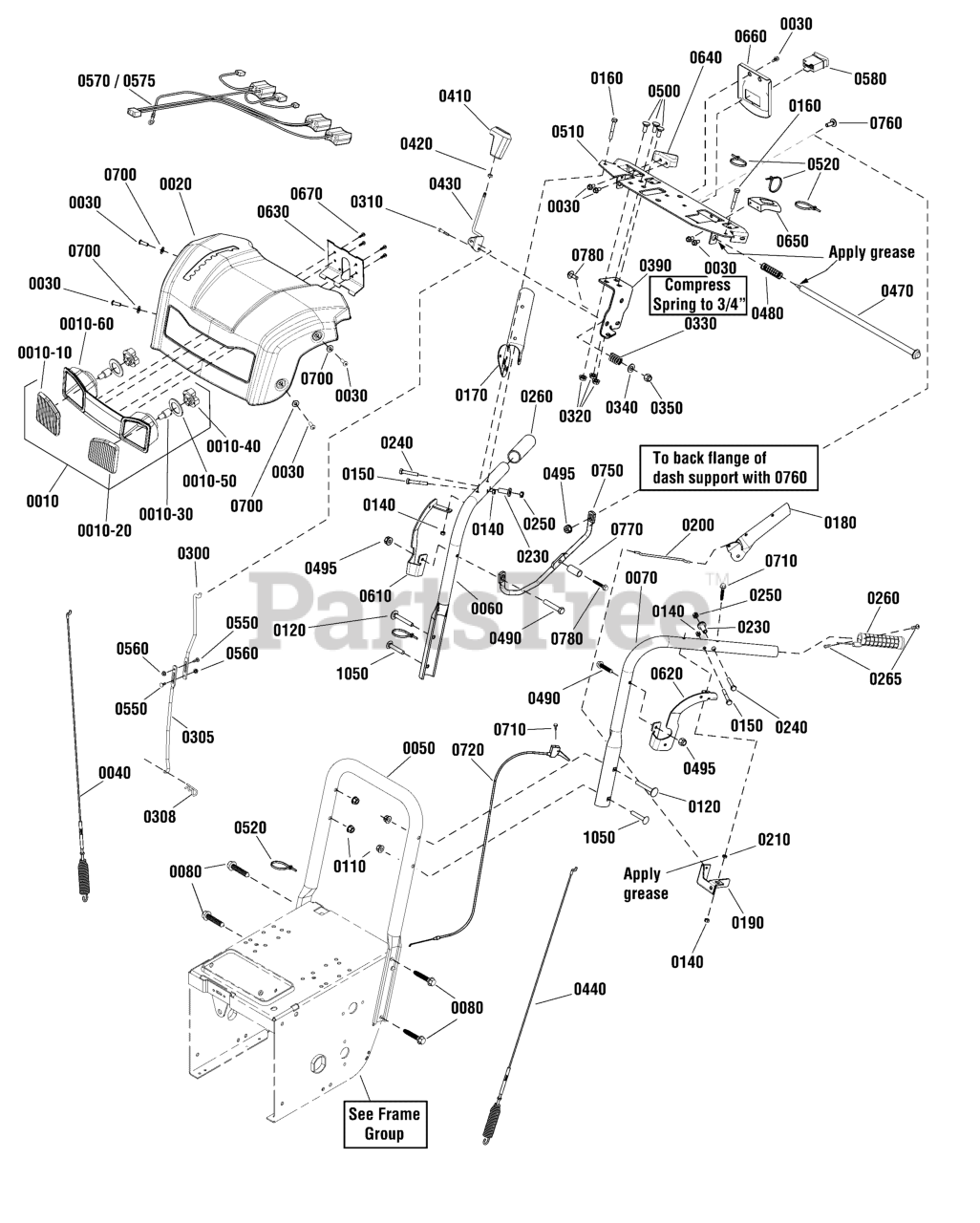

Handle & Controls Group Parts Diagram

  • Title

0010

Murray 1739686YP

LIGHT BAR ASSEMBLY

$90.99

$

Usually ships in 2-12 days

0

0010-10

LENS, RH

Note: (Not a serviceable part, included with Ref. No. 0010)

$

$

Not available

0010-20

LENS, LH

Note: (Not a serviceable part, included with Ref. No. 0010)

$

$

Not available

0010-30

Murray 1739689YP

LAMP, Halogen, 12V 20W

$

$

Not available

0010-40

Murray 1736180YP

SOCKET & GASKET ASSEMBLY, Headlight

$10.99

$

Usually ships in 2-12 days

0

0010-50

GASKET, Single, Twin Light

Note: (Not a serviceable part, included with Ref. No. 0010-40)

$

$

Not available

0010-60

BEZEL, Light, Panel

Note: (Not a serviceable part, included with Ref. No. 0010)

$

$

Not available

0020

Murray 1739345BSYP

COVER, Panel, Remote Deflector

$119.99

$

Usually ships in 2-12 days

0

0030

Murray 1960556SM

SCREW, Pan Head, Torx, 1/4-20 x 3/4, Taptite

$4.49

$

Usually ships in 2-12 days

0

0040

Murray 1735643YP

CABLE & SPRING ASSEMBLY, Auger Drive, RH

$26.99

$

Usually ships in 2-12 days

0

0050

Murray 1735641AYP

HANDLE, Lower

$79.99

$

Usually ships in 2-12 days

0

0060

Murray 1737531AYP

HANDLE, Upper, R.H.

$59.99

$

Usually ships in 2-12 days

0

0070

Murray 1734586ASM

HANDLE, Upper, L.H.

$55.99

$

In Stock, only 1 left!

0

0080

Murray 703354

SCREW, Flange, Whiz-Lock, 5/16-18 X 3/4

$5.49

$

In Stock, Qty 6

0

0110

Murray 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0120

Murray 704421

BOLT, Carriage, 5/16-18 x 2-1/4

$5.49

$

In Stock, only 1 left!

0

0140

Murray 703232

NUT, Hex Lock, 1/4-20

$4.49

$

In Stock, Qty 20+

0

0150

Murray 703045

BOLT, Shoulder, 1/4-20 x 1-3/4

$3.49

$

Usually ships in 2-12 days

0

0160

Murray 703588

CAPSCREW, Hex Head, 1/4-20 x 1-3/4, G5

$3.99

$

In Stock, only 1 left!

0

0170

Murray 1739783BMYP

LEVER, Clutch, RH
(Superseded to 1739783AYP)

$28.99

$

In Stock, only 1 left!

0

0180

Murray 1739782BMYP

LEVER, Clutch, LH
(Superseded to 1739782AYP)

$

$

Not available

0190

Murray 1733505BMYP

BRKT, Pivot, Free Hand

$14.99

$

Usually ships in 2-12 days

0

0200

Murray 1736360YP

ROD, Hold Down, 5/32 Dia., 5-5/8 Lg

$11.99

$

Usually ships in 2-12 days

0

0210

Murray 703124

SPACER, 1/4 ID

$3.99

$

Usually ships in 2-12 days

0

0230

Murray 703223

SPACER, Stepped

$4.49

$

Usually ships in 2-12 days

0

0240

Murray 1753529YP

BOLT, Shoulder, Hex Washer Head, 1/4 x 1-1/2

$3.99

$

Usually ships in 2-12 days

0

0250

Murray 703412

NUT, Nylock, 10-24

$4.49

$

In Stock, only 2 left!

0

0260

Murray 1738124YP

HAND GRIP
(Superseded to 770002)

$86.99

$

Usually ships in 2-12 days

0

0265

Murray 703044

SCREW, Square, 1/8-20 x 1/32

$4.49

$

Usually ships in 2-12 days

0

0300

Murray 1750635YP

ROD, Speed Select

$18.99

$

In Stock, only 1 left!

0

0305

Murray 1666255SM

ROD, Shift

$51.99

$

In Stock, only 4 left!

0

0308

Murray 703430

HAIR PIN

$3.49

$

In Stock, only 1 left!

0

0310

Murray 703589

CAPSCREW, Hex Head, 3/8-16 x 2, GR5

$4.49

$

In Stock, only 1 left!

0

0320

Murray 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0330

Murray 50786MA

SPRING, 1/2 Dia. x 3/4

$5.49

$

Usually ships in 2-12 days

0

0340

Murray 703590

WASHER, .406

$3.99

$

In Stock, Qty 18

0

0350

Murray 703117

NUT, Hex Lock, 3/8-16

$3.49

$

In Stock, Qty 20+

0

0390

Murray 1751352YP

BRACKET, Controls

$15.99

$

Usually ships in 2-12 days

0

0410

Murray 304437MA

KNOB, Slot Speed

$11.99

$

Usually ships in 2-12 days

0

0420

Murray 703996

NUT, Hex Jam, 3/8-16

$4.99

$

In Stock, Qty 9

0

0430

Murray 703048

SPEED LEVER ASSEMBLY

$71.99

$

Usually ships in 2-12 days

0

0440

Murray 1735646YP

CABLE, Handle

$21.99

$

Usually ships in 2-12 days

0

0470

Murray 1736363YP

ROD & SPRING ASSEMBLY

$33.99

$

Usually ships in 2-12 days

0

0480

Murray 2108360SM

SPRING, Compression, 017/32 ID x 2-1/4 Lg

$5.49

$

In Stock, only 1 left!

0

0490

Murray 703588

CAPSCREW, Hex Head, 1/4-20 x 1-3/4, G5

$3.99

$

In Stock, only 1 left!

0

0495

Murray 703463

NUT, Nylock Flanged, 1/4-20

$4.49

$

In Stock, Qty 20+

0

0500

Murray 703225

BOLT, Carriage, 5/16-18 x 3/4

$3.99

$

In Stock, Qty 18

0

0510

Murray 1739500BMYP

SUPPORT, Dash

$54.99

$

Usually ships in 2-12 days

0

0520

Murray 703586

TIE, SELF LOCKING, 7-5/16 Lg

$4.99

$

Usually ships in 2-12 days

0

0550

Murray 703576

BOLT, Carriage, 1/4-20 x 3/4
(Superseded to 703101)

$3.99

$

In Stock, only 1 left!

0

0560

Murray 703061

NUT, 1/4-20

$3.49

$

In Stock, Qty 11

0

0570

Murray 1750773YP

HARNESS

$100.99

$

Usually ships in 2-12 days

0

0575

Murray 1752164YP

HARNESS, On/Off, HHG

$43.99

$

Usually ships in 2-12 days

0

0580

Murray 1752242YP

SWITCH, Heated Hand Grip

$36.99

$

In Stock, only 1 left!

0

0610

Murray 1739663BMYP

BRACKET, Mounting, Dash, R.H.

$17.99

$

Usually ships in 2-12 days

0

0620

Murray 1739664BMYP

BRACKET, Mounting, Dash, L.H.

$22.99

$

Usually ships in 2-12 days

0

0630

Murray 1739666BMYP

BRACKET, Light Mounting

$15.99

$

Usually ships in 2-12 days

0

0640

Murray 1739483AYP

POD, Chute Rotation, RH

$35.99

$

Usually ships in 2-12 days

0

0650

Murray 1739484AYP

POD, Deflector Control

$

$

Not available

0660

Murray 1739861AYP

BRACKET, Switch

$19.99

$

Usually ships in 2-12 days

0

0670

Murray 7091105YP

SCREW, Hex Washer Machine, #10-16 x 1/2

$5.49

$

In Stock, only 4 left!

0

0700

Murray 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 20+

0

0710

Murray 1725702SM

SCREW, Pan Head Torx, #10 x 1/2

$5.49

$

Usually ships in 2-12 days

0

0720

Murray 1718791SM

CABLE & HANDLE ASSEMBLY

$70.99

$

In Stock, only 3 left!

0

0750

Murray 1737552YP

BRACE

$22.99

$

In Stock, only 1 left!

0

0760

Murray 703576

BOLT, Carriage, 1/4-20 x 3/4
(Superseded to 703101)

$3.99

$

In Stock, only 1 left!

0

0770

Murray 1713588SM

SPACER

$8.49

$

Usually ships in 2-12 days

0

0780

Murray 703142

SCREW, 1/4-20 x 2-1/4

$3.49

$

Usually ships in 2-12 days

0

1050

Murray 703175

BOLT, Carriage. 5/16-18 x 1-3/4

$3.99

$

In Stock, only 2 left!

0
