BP 2132 SE (1696482-00) - Briggs & Stratton 32" Snow Thrower, 21.0 Gross TP (2015) Engine & Frame Group - 21 Gross TP Parts Diagram

32" Snow Thrower, 21.0 Gross TP

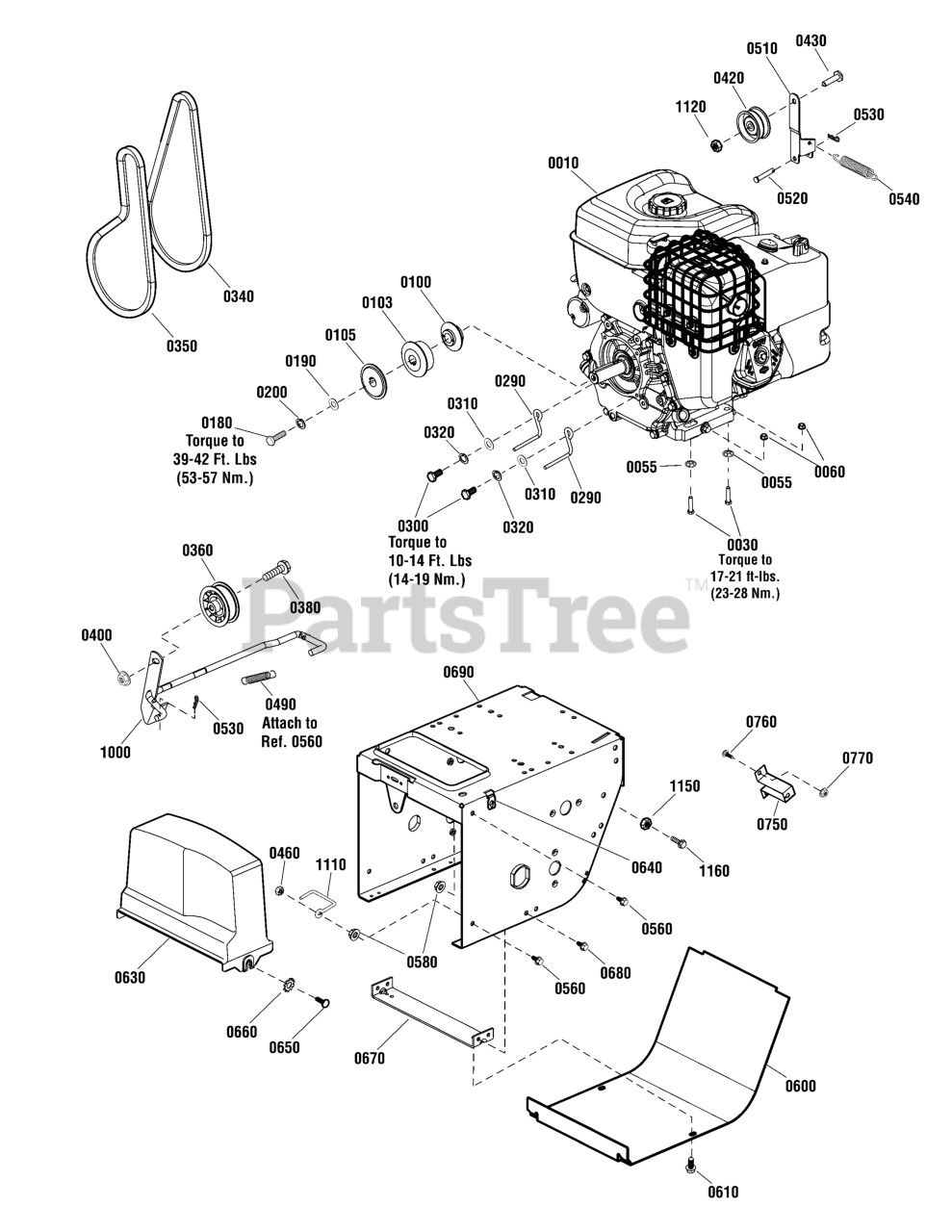

Engine & Frame Group - 21 Gross TP Parts Diagram

  • Title

0010

Murray 25M137-0020-H1

* ENGINE, 21 Gross TP Briggs & Stratton

Note: (Engine Model: 25M137-0020-H1)

$

$

Not available

0030

Murray 7091513YP

CAPSCREW, Hex Head, 5/16-24 x 1-3/4, GR5

$4.49

$

In Stock, Qty 13

0

0055

Murray 028X76MA

NUT, Speed

$4.49

$

Usually ships in 2-12 days

0

0060

Murray 703123

NUT, Hex Flange, 5/16-24, GR5

$3.49

$

In Stock, Qty 20+

0

0100

Murray 706546

PULLEY, Crankshaft, Inside

$11.99

$

Usually ships in 2-12 days

0

0103

Murray 706547

PULLEY, Engine, Middle

$16.99

$

Usually ships in 2-12 days

0

0105

Murray 706548

PULLEY, Engine, Outer

$11.99

$

Usually ships in 2-12 days

0

0180

Murray 1922128SM

CAPSCREW, Hex Head, 3/8-24 x 1-1/2, G8

$4.49

$

Usually ships in 2-12 days

0

0190

Murray 1922755SM

WASHER, Flat, 1
(Superseded to 704128)

$4.99

$

In Stock, Qty 9

0

0200

Murray 703454

LOCKWASHER, Spring, 3/8

$3.49

$

In Stock, Qty 15

0

0290

Murray 1754043YP

GUIDE, Belt

$5.49

$

Usually ships in 2-12 days

0

0300

Murray 703336

CAPSCREW, Hex Head, 5/16-24 x 3/4, GR5

$4.49

$

In Stock, Qty 5

0

0310

Murray 1660731SM

WASHER, Flat, 3/4

$25.99

$

Usually ships in 2-12 days

0

0320

Murray 703116

LOCKWASHER, Spring, 5/16

$3.49

$

In Stock, Qty 20+

0

0340

Murray 1753941YP

BELT, V, HA, Auger Drive

$29.99

$

In Stock, only 2 left!

0

0350

Murray 1754356YP

BELT, V, 4L, Traction Drive

$29.99

$

Usually ships in 2-12 days

0

0360

Murray 1726348SM

PULLEY, Idler, 2-3/4

$24.99

$

In Stock, only 4 left!

0

0380

Murray 703812

SCREW, Hex Flange, Whiz Lock, 3/8-16 1-3/4

$4.49

$

Usually ships in 2-12 days

0

0400

Murray 703793

NUT, Hex Flange, Whiz Lock, 3/8-16

$4.49

$

In Stock, only 3 left!

0

0420

Murray 1668477SM

PULLEY, Idler, With Bearing, 2-1/4 OD 0.378 ID

$23.99

$

In Stock, Qty 20+

0

0430

Murray 1960647SM

SCREW, Hex Head, 3/8-16 x 1-1/2

$7.49

$

Usually ships in 2-12 days

0

0460

Murray 703164

NUT, Hex Center Lock, 5/16-18

$3.49

$

In Stock, Qty 17

0

0490

Murray 703144

SPRING, Extension, 4-1/4"

$5.99

$

In Stock, Qty 6

0

0510

Murray 1703046BMYP

ARM, Idler

$18.99

$

Usually ships in 2-12 days

0

0520

Murray 703145

PIN, 5/16 x 1-3/4

$3.99

$

In Stock, only 3 left!

0

0530

Murray 1722460SM

HAIRPIN
(Superseded to 703430)

$3.49

$

In Stock, only 1 left!

0

0540

Murray 703146

SPRING, Extension, 5.83"
(Superseded to 1687980)

$

$

Not available

0560

Murray 9357MA

SCREW, Whiz Lock, 5/16-18 x 3/4, G5
(Superseded to 703354)

$5.49

$

In Stock, Qty 6

0

0580

Murray 1927557SM

NUT, Hex Flange, Whiz Lock, 5/16-18, G5

$4.99

$

Usually ships in 2-12 days

0

0600

Murray 706523

COVER, Bottom

$98.99

$

Usually ships in 2-12 days

0

0610

Murray 704130

SCREW, Hex Head, Taptite, 1/4-20 x 1/2

$3.99

$

In Stock, only 4 left!

0

0630

Murray 706414

COVER, Belt

$

$

Not available

0640

Murray 1935255SM

NUT, Speed, Lug Type, 5/16-18

$3.49

$

In Stock, only 2 left!

0

0650

Murray 1918249SM

SCREW, 5/16-18 X 3/4, Slotted Truss Head, Blk

$4.99

$

Usually ships in 2-12 days

0

0660

Murray 703138

WASHER, External Lock, 5/16

$3.99

$

In Stock, Qty 7

0

0670

Murray 1727004BMYP

SUPPORT, Tie Bar

$14.99

$

Usually ships in 2-12 days

0

0680

Murray 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0690

Murray 80007220BS

FRAME

$

$

Currently unavailable

0750

Murray 1720404BMYP

SUPPORT, Clutch Cable

$12.99

$

Usually ships in 2-12 days

0

0760

Murray 703576

BOLT, Carriage, Short Neck, 1/4-20 x 3/4, G5
(Superseded to 703101)

$3.99

$

In Stock, only 1 left!

0

0770

Murray 703061

NUT, KEPS, 1/4-20

$3.49

$

In Stock, Qty 11

0

1000

Murray 1729646BMYP

CLUTCH ROD

$117.99

$

Usually ships in 2-12 days

0

1110

Murray 1702969SM

STOP, Belt

$6.49

$

In Stock, only 1 left!

0

1120

Murray 1928731SM

NUT, Hex, Top Lock JAM, 3/8-16

$4.99

$

In Stock, only 1 left!

0

1150

Murray 1920161SM

NUT, Hex, JAM 5/16-18

$4.49

$

In Stock, only 2 left!

0

1160

Murray 703585

CAPSCREW, Hex Head, 5/16-18 x 1

$4.99

$

Usually ships in 2-12 days

0
