BP 2132 S (1696159-01) - Briggs & Stratton 32" Snow Thrower, 21.0 Gross TP (2013) Gear Case Assembly (1732303) Parts Diagram

32" Snow Thrower, 21.0 Gross TP

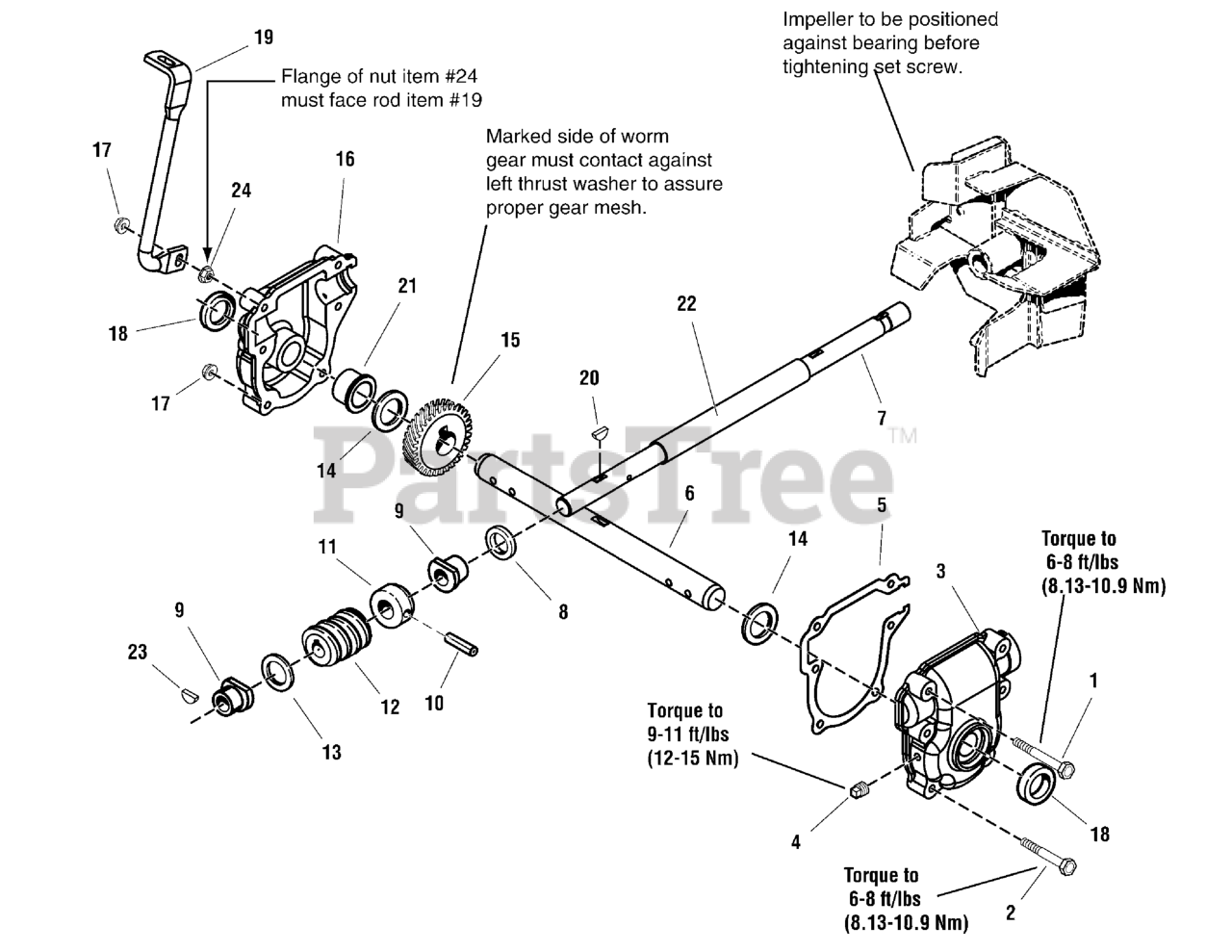

Gear Case Assembly (1732303) Parts Diagram

  • Title
1

Murray 1923282SM

CAPSCREW, 1/4 - 20 x 2-1/2
(Superseded to 703821)

$3.99

$

Usually ships in 2-12 days

0

2

Murray 1960346SM

CAPSCREW, 1/4-20 x 2-1/4

$4.99

$

Usually ships in 2-12 days

0

3

Murray 1612136SM

GEAR CASE, Left

$68.99

$

Usually ships in 2-12 days

0

4

Murray 1668971SM

TAPERED PIPE PLUG

$4.49

$

Usually ships in 2-12 days

0

5

$17.99

$

In Stock, Qty 11

0

6

Murray 1732440SM

SHAFT, Auger Cutoff

$53.99

$

Usually ships in 2-12 days

0

7

Murray 1732182SM

SHAFT, Worm Cutoff

$76.99

$

In Stock, only 2 left!

0

8

Murray 1612093SM

SEAL, Oil

$10.99

$

In Stock, Qty 20+

0

9

Murray 1612149SM

FLANGE BUSHING

$51.99

$

In Stock, Qty 7

0

10

Murray 2836098SM

PIN, Drive Lock

$18.99

$

In Stock, Qty 6

0

11

Murray 1612127SM

THRUST COLLAR

$30.99

$

In Stock, only 2 left!

0

12

Murray 1612142SM

ROLLED WORM CASE
(Superseded to 706853)

$

$

Not available

13

Murray 2168111SM

WASHER, Thrust

$6.99

$

Usually ships in 2-12 days

0

14

Murray 2118315SM

WASHER, Thrust

$9.99

$

In Stock, Qty 5

0

15

Murray 1612141SM

GEAR, Worm
(Superseded to 706853)

$

$

Not available

16

Murray 1612137SM

GEAR CASE, Right
(Superseded to 1687728)

$567.99

$

Usually ships in 2-12 days

0

17

Murray 1930642SM

NUT, Top Lock Flange, 1/4 - 20
(Superseded to 703916)

$4.99

$

In Stock, only 2 left!

0

$10.99

$

In Stock, Qty 20+

0

19

Murray 1732152SM

BRACKET, Wireform

$33.99

$

In Stock, only 1 left!

0

20

Murray 2818312SM

KEY, Woodruff
(Superseded to 703891)

$4.99

$

In Stock, Qty 20+

0

21

$16.99

$

Usually ships in 2-12 days

0

$21.99

$

In Stock, only 4 left!

0

23

Murray 2830246SM

KEY, Woodruff
(Superseded to 704280)

$4.99

$

In Stock, Qty 9

0

24

Murray 1960294SM

NUT, Flange, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0
