BM i900 LP (090930335) - Black Max Digital Inverter Generator, Rev 04 (2018-04) Figure J Parts Diagram

Digital Inverter Generator, Rev 04

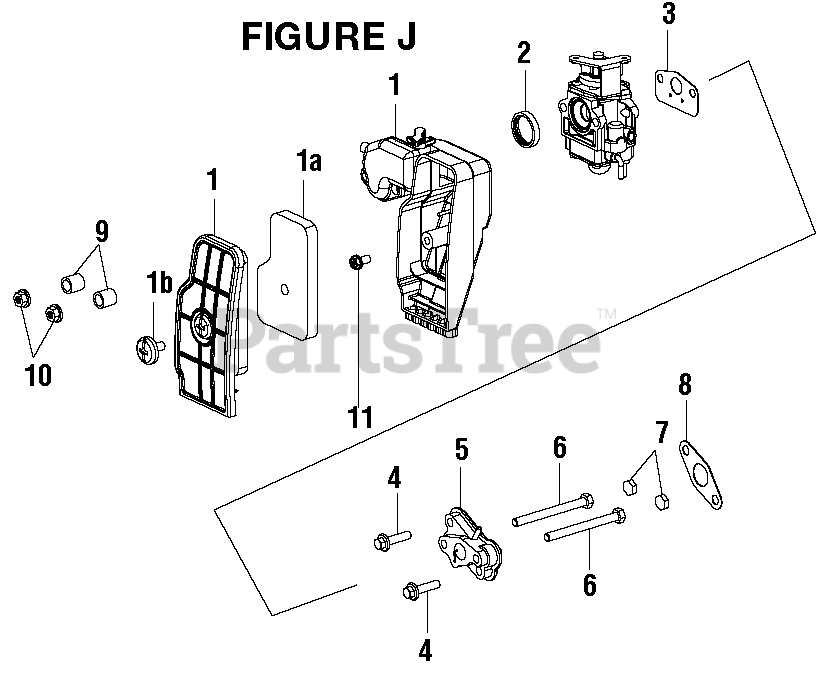

Figure J Parts Diagram

  • Title

1

Homelite 14870801000101

Air Filter Base & Air Filter Cover

$5.49

$

Usually ships in 3-7 days

0

1a

Homelite 14760801003002

Foam

$2.99

$

Usually ships in 3-7 days

0

1b

Homelite 14760801007081

Chrome Plated Screw (Big Head)

$2.49

$

Usually ships in 3-7 days

0

2

Homelite 14760800004001

Air Filter Gasket

$2.99

$

Usually ships in 3-7 days

0

3

Homelite 14780800003081

Carburator Gasket

$2.49

$

Usually ships in 3-7 days

0

4

Homelite 00033000502281

Bolt (M5 x 22 mm, Flange Hex Hd.)

$

$

Not available

5

Homelite 14870801001001

Insulation Board Component

$

$

Not available

6

Homelite 00026000505581

Bolt (M5 x 55 mm, Flange Hex Hd.)

$

$

Not available

7

Homelite 14810800003001

Rubber Block

$

$

Not available

8

Homelite 14810800001081

Insulation Board Gasket

$

$

Not available

9

Homelite 15561100004002

Fan Volute Bushing

$

$

Not available

10

Homelite 00129000500081

Nut (M5)

$

$

Not available

11

Homelite 00427014801681

Screw (M4.8 x 16 mm)

$

$

Not available
