BM i900 LP (090930335) - Black Max Digital Inverter Generator, Rev 04 (2018-04) Figure E Parts Diagram

Digital Inverter Generator, Rev 04

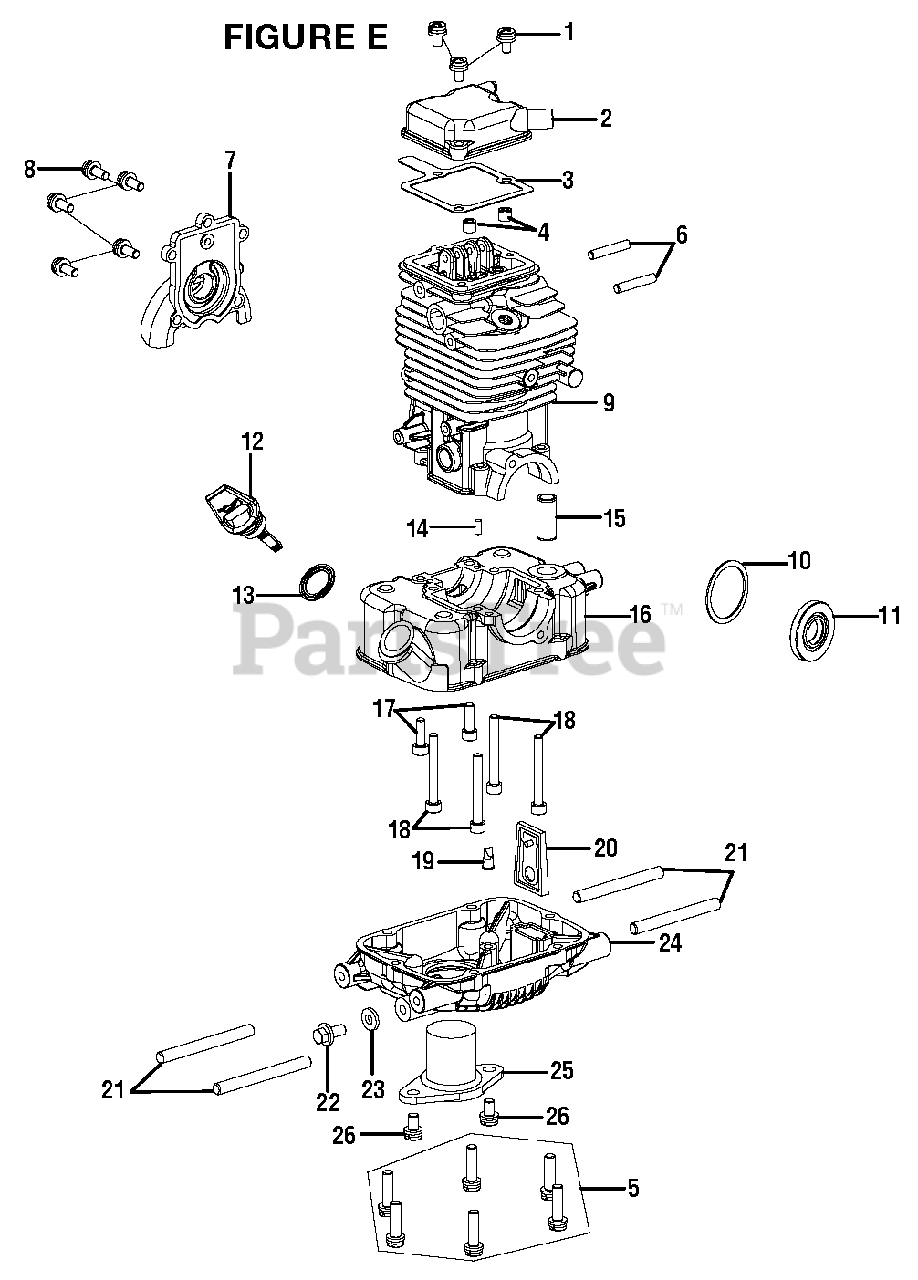

Figure E Parts Diagram

  • Title

1

Homelite 00252000502081

Screw (M5 x 20 mm)

$

$

Not available

2

Homelite 14760100001001

Cylinder Head Cover

$13.99

$

Usually ships in 3-7 days

0

3

Homelite 14760100002081

Cylinder Head Cover Seal

$

$

Not available

4

Homelite 14760101001101

Valve Oil Seal

$

$

Not available

5

Homelite 00252000502581

Dual-Head Bolt (M5 x 25 mm)

$

$

Not available

6

Homelite 14760100005041

Dual-Head Bolt (M5 x 28 mm)

$

$

Not available

7

Homelite 14760100003001

Cam

$

$

Not available

8

Homelite 00252000501481

Screw (M5 x 14 mm)

$

$

Not available

9

Homelite 14870101100001

Upper Crankcase

$

$

Not available

10

Homelite 14770100004041

Washer (ID30 x OD37 x 1t)

$

$

Not available

11

Homelite 14760100007102

Oil Seal

$

$

Not available

12

Homelite 14760102101003

Oil Gauge

$2.99

$

Usually ships in 3-7 days

0

13

Homelite 14760102102101

Oil Gauge Gasket

$2.99

$

Usually ships in 3-7 days

0

14

Homelite 00510000400801

Dowell Pin

$

$

Not available

15

Homelite 14770102003081

Ventilation Nozzle

$

$

Not available

16

Homelite 14760102001001

Lower Crankcase

$

$

Not available

17

Homelite 00204000501681

Screw (M5 x 16 mm)

$

$

Not available

18

Homelite 00204000504041

Screw (M5 x 40 mm)

$

$

Not available

19

Homelite 14760102002101

Rubber Valve

$2.99

$

Usually ships in 3-7 days

0

20

Homelite 14760501000001

One-Way Valve Component

$8.49

$

Usually ships in 3-7 days

0

21

Homelite 14760103003081

Dual-Head Bolt (M6 x 36 mm)

$

$

Not available

22

Homelite 00031000601281

Bolt (M6 x 12 mm, Flange Hex Hd.)

$

$

Not available

23

Homelite 14760103002031

Aluminium Gasket

$

$

Not available

24

Homelite 14760103001001

Oil Pan

$30.99

$

Usually ships in 3-7 days

0

25

Homelite 14620103100001

Oil Level Sensor

$14.99

$

Usually ships in 3-7 days

0

26

Homelite 00252000601881

Screw (M6 x 18 mm)

$

$

Not available
