BM 924 E (1696254-01) - Briggs & Stratton 24" Snow Thrower, 9.0 Gross TP (2014-2015) Discharge Chute Group Parts Diagram

24" Snow Thrower, 9.0 Gross TP

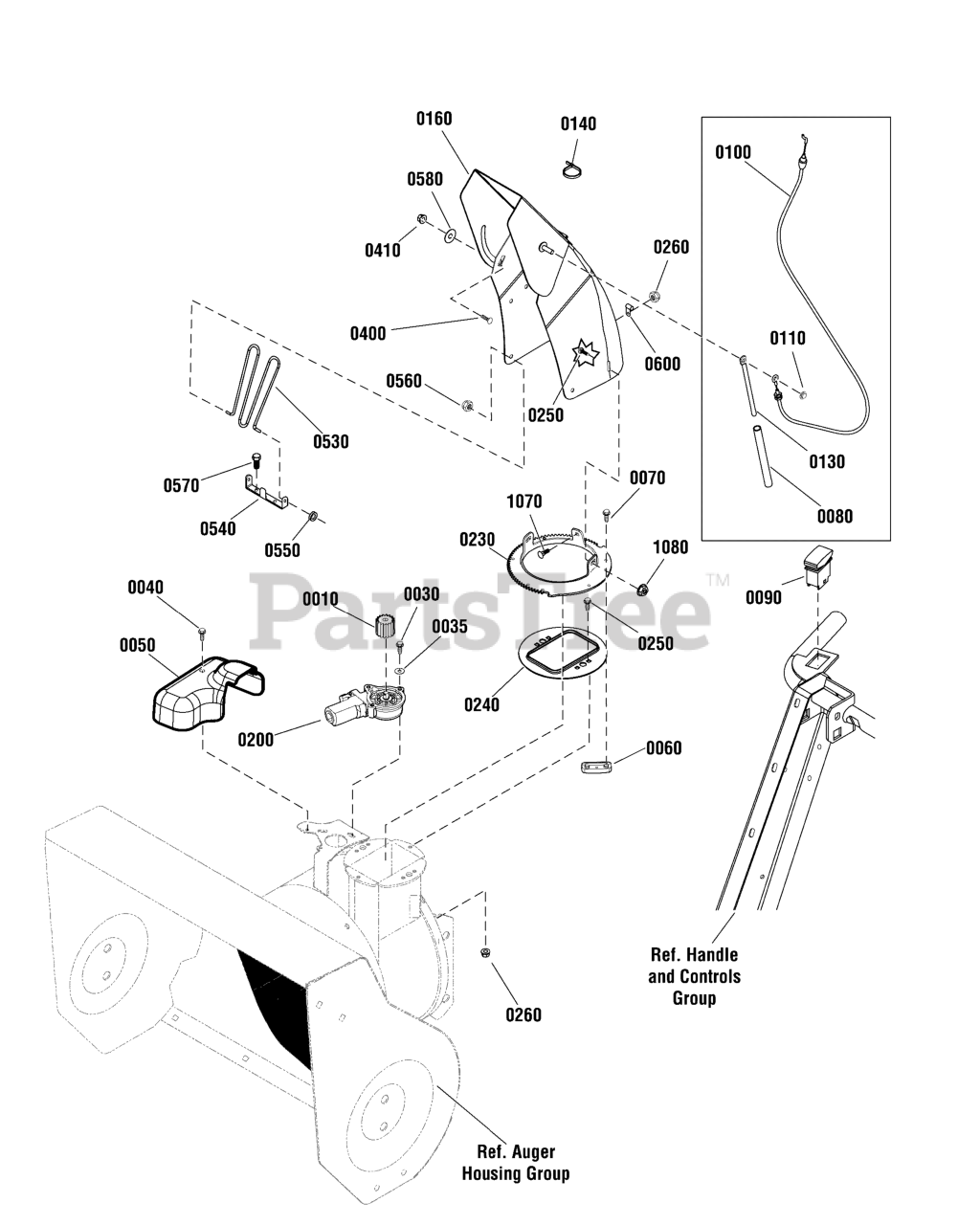

Discharge Chute Group Parts Diagram

  • Title

0010

Murray 1728967SM

PINION

$17.99

$

In Stock, only 3 left!

0

0030

Murray 1739621YP

SCREW, Torx Button Head, M5 x .8 x 14

$4.49

$

In Stock, Qty 13

0

0035

Murray 7091552SM

WASHER, Flat, 7/32

$3.99

$

In Stock, Qty 14

0

0040

Murray 1925592SM

SCREW, Hex Washer Head, Taptite, 1/4-20 x 3/4
(Superseded to 703466)

$3.99

$

In Stock, Qty 10

0

0050

Murray 1752877YP

COVER, Electric Chute Rotation

$16.99

$

In Stock, only 1 left!

0

0060

Murray 7011938SM

RETAINER, Spout

$

$

Not available

0070

Murray 1960001SM

SCREW, Hex Washer Head, Plastite, 10-14 x 5/8
(Superseded to 703062)

$4.49

$

In Stock, only 3 left!

0

0080

Murray 1734647SM

SPRING, Compression, 9/16 OD X 6-1/16 Lg
(Superseded to 703135)

$3.99

$

Usually ships in 2-12 days

0

0090

Murray 1687904

WIRE HARNESS ADAPTER KIT, CHUTE ROTATION

$82.99

$

In Stock, Qty 12

0

0100

Murray 1750623YP

CABLE, Deflector Control

$49.99

$

In Stock, Qty 5

0

0110

Murray 1932718SM

NUT, Push for 5/16 Diameter Stud Capped
(Superseded to 704028)

$5.49

$

In Stock, only 3 left!

0

0130

Murray 1734708ASM

ROD, 5/16 Dia. x 5-7/8 Lg

$13.99

$

Usually ships in 2-12 days

0

0140

Murray 7012080SM

CABLE TIE, 7.0
(Superseded to 703586)

$4.99

$

Usually ships in 2-12 days

0

0160

Murray 1737443AYP

CHUTE

$125.99

$

Usually ships in 2-12 days

0

0200

Murray 1739309YP

MOTOR, Chute Rotation
(Superseded to 708703)

$86.99

$

In Stock, Qty 7

0

0230

Murray 1737465AYP

GEAR, Chute

$39.99

$

Usually ships in 2-12 days

0

0240

Murray 1737411YP

ADAPTER, Chute Ring

$19.99

$

Usually ships in 2-12 days

0

0250

Murray 703101

BOLT, 1/4-20 x 3/4 Round Head Short Square Neck Carriage, GR 5, YZ

$3.99

$

In Stock, only 1 left!

0

0260

Murray 1960685SM

NUT, Hex, KEPS, Conical, 1/4-20
(Superseded to 703061)

$3.49

$

In Stock, Qty 11

0

0400

Murray 1931333SM

BOLT, Carriage, Short Neck, 5/16-18 x 3/4, GR 5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

0410

Murray 1739305YP

NUT, Hex Flange, , ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0530

Murray 1733475SM

GUARD, Chute

Note: (Used on export models only)

$21.99

$

Usually ships in 2-12 days

0

0540

Murray 1737683YP

BRACKET, Chute Guard
(Superseded to 1752883YP)

Note: (Used on export models only)

$15.99

$

Usually ships in 2-12 days

0

0550

Murray 1738174YP

GROMMET

Note: (Used on export models only)

$4.49

$

Usually ships in 2-12 days

0

0560

Murray 1960140SM

NUT, Push, 3/16

Note: (Used on export models only)

$3.49

$

Usually ships in 2-12 days

0

0570

Murray 1925003SM

CAPSCREW, Hex Washer Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

Note: (Used on export models only)

$3.99

$

In Stock, only 1 left!

0

0580

Murray 2860210SM

WASHER, Nylon, 3/8

$4.49

$

In Stock, only 2 left!

0

0600

Murray 1739331YP

CLIP
(Superseded to 703174)

$4.49

$

Usually ships in 2-12 days

0

1070

Murray 703101

BOLT, 1/4-20 x 3/4 Round Head Short Square Neck Carriage, GR 5, YZ

$3.99

$

In Stock, only 1 left!

0

1080

Murray 703061

NUT, 1/4-20, Keps, Conical Washer

$3.49

$

In Stock, Qty 11

0
