BM 907015 (090930310) - Black Max 7000 Watt Generator, Rev 01 (2018-03) Figure B Parts Diagram

7000 Watt Generator, Rev 01

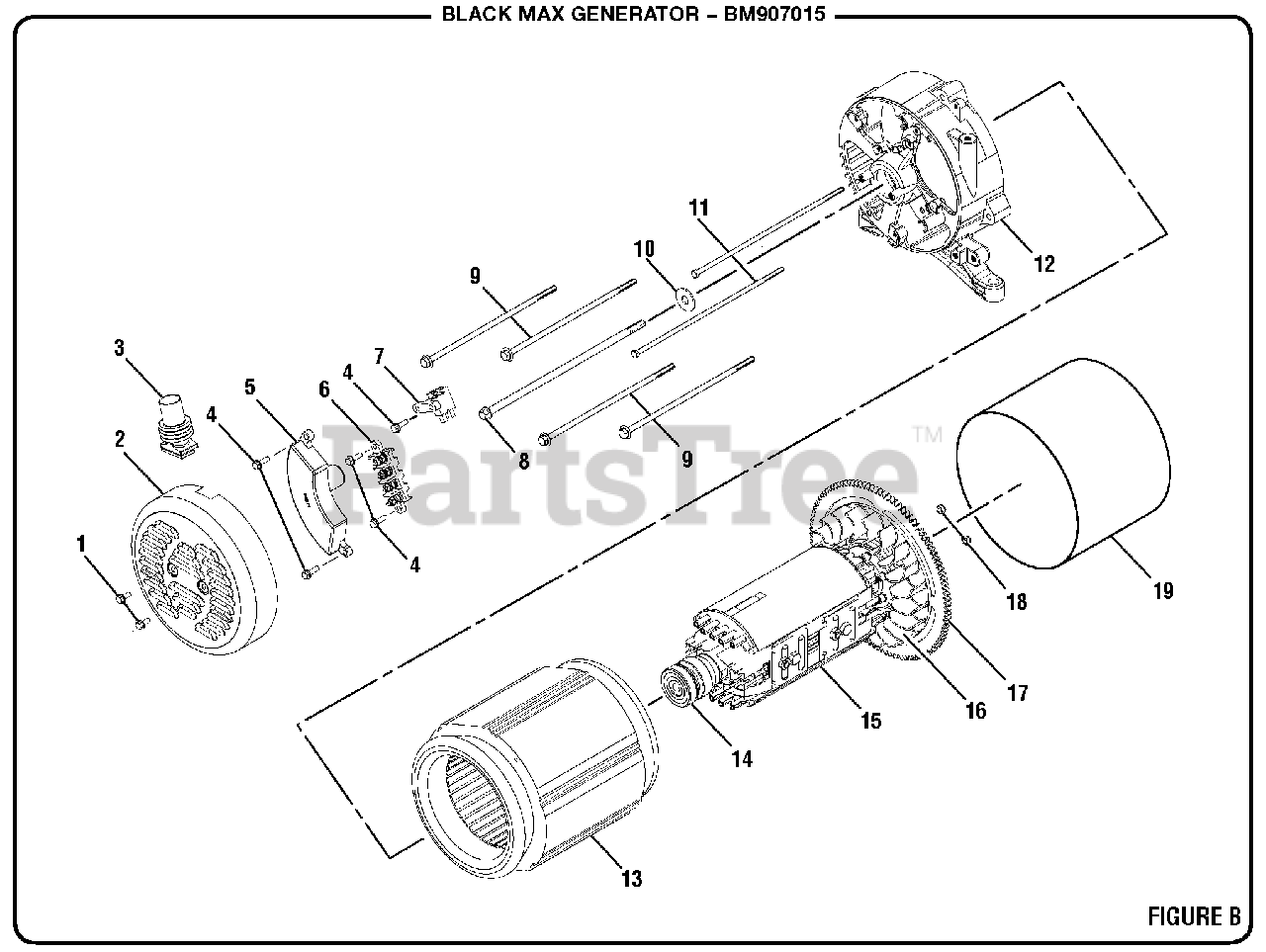

Figure B Parts Diagram

  • Title

1

Homelite 660938011

Bolt (M5 x 12 mm, Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0

2

Homelite 678296004

Brush Cover
(Superseded to 678296002)

$

$

Not available

3

Homelite 570766002

Rubber Boot

$

$

Not available

4

Homelite 660938012

Bolt (M5 x 16 mm, Hex Hd.)

$2.49

$

Usually ships in 3-7 days

0

5

Homelite 290440005

Automatic Voltage Regulator
(Superseded to 290440008)

$

$

Not available

6

Homelite 290602003

Terminal Block

$10.99

$

Usually ships in 3-7 days

0

7

Homelite 290441005

Brush Assembly

$

$

Not available

8

Homelite 661603021

Bolt (5/16-24 x 235 mm, Hex Washer Hd.)

$8.49

$

Usually ships in 3-7 days

0

9

Homelite 661603020

Bolt (M6 x 188 mm, Hex Washer Hd.)

$

$

Not available

10

Homelite 638623007

Washer (ID10 x OD28 x 3t)

$

$

Not available

11

Homelite 660938032

Bolt (M5 x 210 mm, Hex Washer Hd.)

$

$

Not available

12

Homelite 678865003

Bearing Housing

$

$

Not available

13

Homelite 310772058

Stator Assembly

$404.99

$

Usually ships in 3-7 days

0

14

Homelite 681963001

Ball Bearing

$17.99

$

Usually ships in 3-7 days

0

15

Homelite 310771061

Rotor Assembly

$404.99

$

Usually ships in 3-7 days

0

16

Homelite 310757004

Fan

$

$

Not available

17

Homelite 310693002

Starter Gear

$

$

Not available

18

Homelite 690840002

Hex Nut (M5)

$3.49

$

Usually ships in 3-7 days

0

19

Homelite 638624016

Generator Head Cover

$9.49

$

Usually ships in 3-7 days

0
