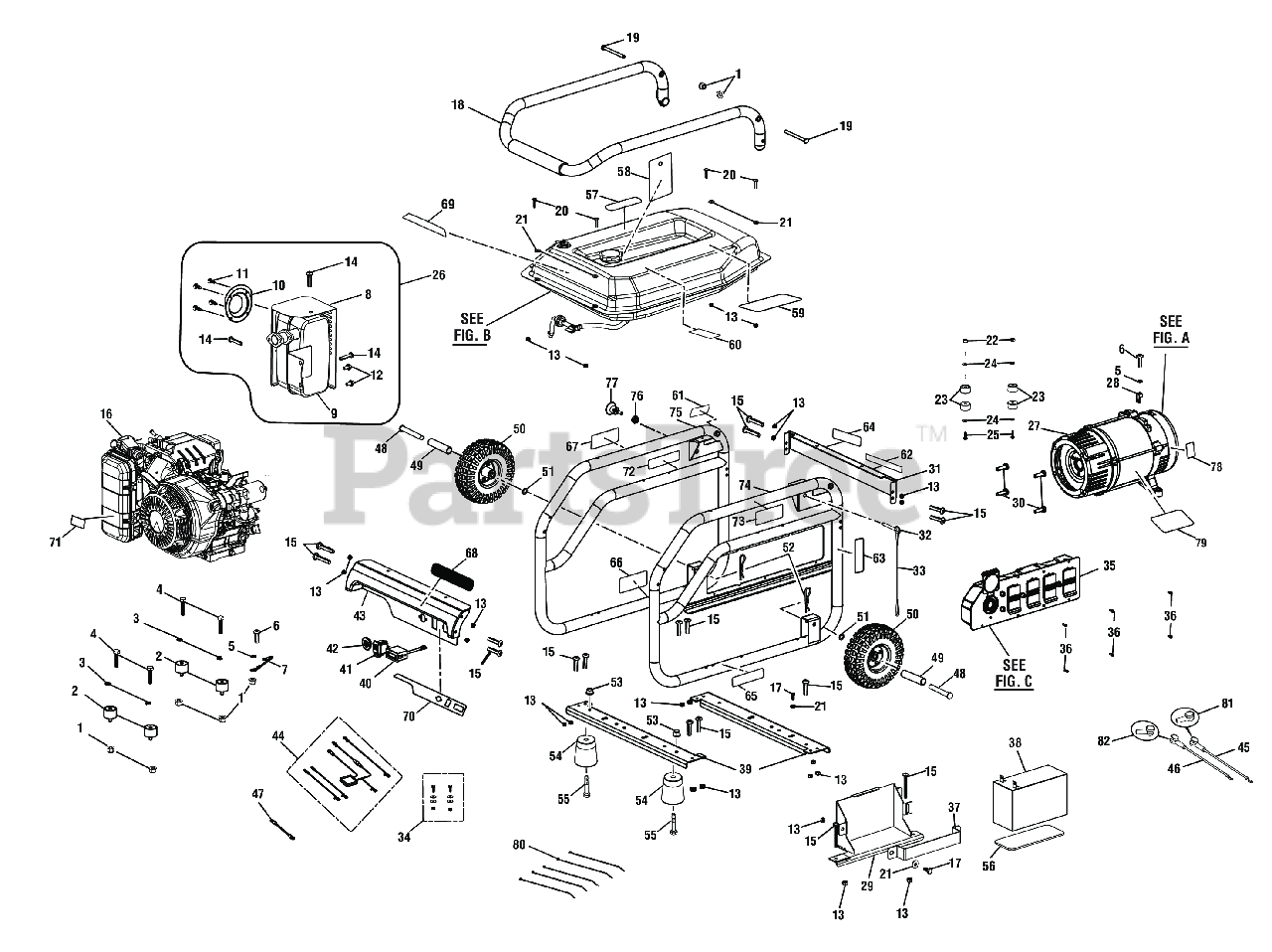

BM 907015 (090930287) - Black Max 7000 Watt Generator, Rev 06 (2018-10) General Assembly Parts Diagram

7000 Watt Generator, Rev 06

General Assembly Parts Diagram

  • Title

1

Homelite 678774012

Flange Lock Nut (M8 x 1.25 mm)

$1.99

$

In Stock, Qty 5

0

2

Homelite 570356012

Isolator Generation 7

$

$

Not available

3

Homelite 673155001

Lock Washer (OD14.8 x ID8.5 x 1t)

$2.99

$

In Stock, only 1 left!

0

4

Homelite 660973017

Bolt (M8 x 1.25 in., Hex Hd.)

$2.99

$

Usually ships in 3-7 days

0

5

Homelite 673157001

Star Washer (M8)

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 660973016

Bolt (M8 x 15 mm, Hex Hd.)

$

$

Not available

7

Homelite 290404001

Assembly, ground wire

$

$

Not available

8

Homelite 638497041

Heat Shield

$33.99

$

Usually ships in 3-7 days

0

9

Homelite 309322037

Muffler w/Brackets

$88.99

$

Usually ships in 3-7 days

0

10

Homelite 638147003

Spark Arrester Screen

$

$

Not available

11

Homelite 661306001

Screw (8-32 x 3/8 in., Pan Hd.)

$2.99

$

Usually ships in 3-7 days

0

12

Homelite 660599002

Bolt (5/16-24 x 0.6 in., Hex Hd.)

$2.99

$

Usually ships in 3-7 days

0

13

Homelite 678460009

Lock Nut (M6 x 1 mm)

$

$

Not available

14

Homelite 660975009

Bolt (M6 x 9 mm, Hex Flange Hd.)

$2.99

$

Usually ships in 3-7 days

0

15

Homelite 660224019

Screw (M6 x 50 mm, T30 Torx Pan Hd. )

$2.99

$

In Stock, only 2 left!

0

16

Homelite NOTE A

Engine (Subaru EA190)

Note: OWT Industries, Inc., will not provide engines as replacement parts. Engines are covered through the engine manufacturer's warranty. Consult the accompanying engine manual or contact our service department for assistance.

$

$

Currently unavailable

17

Homelite 661505030

Screw (M6 x 16 mm, Hex Hd.)

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 310224044

Handle Assembly

$

$

Not available

19

Homelite 661851004

Handle Pivot Bolt (M8 x 98 mm, Flat Hd.)

$2.49

$

Usually ships in 3-7 days

0

20

Homelite 660224005

Bolt (M6 x 25 mm, T30 Torx Hd.)

$

$

Currently unavailable

21

Homelite 673154002

Washer (OD17 x ID6.4 x 1.6t)

$2.49

$

Usually ships in 3-7 days

0

22

Homelite 678827003

Lock Nut (M4)

$

$

Not available

23

Homelite 570712001

Rubber Bumper

$1.49

$

Usually ships in 3-7 days

0

24

Homelite 673156001

Washer (ID4.3 x OD10 x 0.9t)

$

$

Not available

25

Homelite 661850001

Screw (M4 x 12 mm, Button Hd.)

$2.49

$

Usually ships in 3-7 days

0

26

Homelite 309322038

Muffler Assembly

$

$

Not available

27

Homelite 310227074

Generator Head (See Figure A)

$540.99

$

Usually ships in 3-7 days

0

28

Homelite 638703003

Ground Lug (1/4-20)

$2.49

$

Usually ships in 3-7 days

0

29

Homelite 678714015

Battery Box Gasket

$17.99

$

Usually ships in 3-7 days

0

30

Homelite 660596002

Bolt, Wiz (3/8-18 x 1-1/4 in.)

$1.49

$

Usually ships in 3-7 days

0

31

Homelite 638960011

Fuel Tank Support (Back)

$

$

Not available

32

Homelite 310712001

Release Pin (5/16 x 2 in.)

$1.99

$

In Stock, Qty 5

0

33

Homelite 310715001

Lanyard (3/16 in.)

$

$

Not available

34

Homelite 120302012

Fastener Kit (Wiring)

$2.49

$

Usually ships in 3-7 days

0

35

Homelite 290403079

Control Panel Assembly (See Figure C)

$368.99

$

Usually ships in 3-7 days

0

36

Homelite 660598001

Screw (6-20 x 3/8 in., Phillips Pan Hd.)

$2.99

$

In Stock, only 2 left!

0

37

Homelite 308681009

Battery Hold Down Bracket Assembly

$5.49

$

In Stock, only 1 left!

0

38

Homelite 750400010

Battery Bracket

$174.99

$

Usually ships in 3-7 days

0

39

Homelite 638735046

Frame Crossbar

$21.99

$

Usually ships in 3-7 days

0

40

Homelite 290492001

Multifunctional display

$39.99

$

In Stock, only 2 left!

0

41

Homelite 270290008

Start Switch w/Lock

$

$

Not available

42

Homelite 519813017

Fuel Valve Bezel

$3.49

$

In Stock, only 3 left!

0

43

Homelite 638959005

Fuel Tank Support (Front)

$30.99

$

Usually ships in 3-7 days

0

44

Homelite 290435009

Wiring Harness

$13.99

$

Usually ships in 3-7 days

0

45

Homelite 290419006

Battery Cable (Black 390 mm)

$8.99

$

Usually ships in 3-7 days

0

46

Homelite 290418004

Battery Cable (Red)

$8.49

$

Usually ships in 3-7 days

0

47

Homelite 290455001

Bonding Wire

$2.49

$

Usually ships in 3-7 days

0

48

Homelite 681866006

Axle Bolt (M10 x 125 mm, Hex Hd.)

$

$

Not available

49

Homelite 638498003

Spacer

$3.49

$

In Stock, only 3 left!

0

50

Homelite 308451010

Wheel (10 in. x 3 in.)

$

$

Not available

51

Homelite 638422004

Washer (OD19.75 x ID10.5 x 1t)

$

$

Not available

52

Homelite 678146002

Hitch Pin (M3)

$2.99

$

Usually ships in 3-7 days

0

53

Homelite 678774004

Lock Nut (M8 x 1.25)

$2.49

$

In Stock, only 4 left!

0

54

Homelite 562856010

Foot Assembly

$

$

Not available

55

Homelite 661836007

Bolt (M8 x 1.25 in., Flange Hex Hd.)

$2.99

$

Usually ships in 3-7 days

0

56

Homelite 560630004

Gasket

$

$

Currently unavailable

57

Homelite 940515020

CPSC Label (Eng/Sp)

$2.99

$

Usually ships in 3-7 days

0

58

Homelite 940971086

Warning Hang Tag (Eng/Sp)

$

$

Currently unavailable

59

Homelite 940654255

Icon Warning Label

$6.49

$

Usually ships in 3-7 days

0

60

Homelite 940872003

No E85 Label

$1.99

$

In Stock, only 2 left!

0

61

Homelite 940758020

Handle Release Label

$1.99

$

Usually ships in 3-7 days

0

62

Homelite 940513028

Ground Warning Label

$2.99

$

Usually ships in 3-7 days

0

63

Homelite 940514008

Lock and Pin Label

$5.49

$

Usually ships in 3-7 days

0

64

Homelite 941486006

Inquiries Label.

$2.49

$

Usually ships in 3-7 days

0

65

Homelite 940828004

Engine Lubricant Label

$2.49

$

Usually ships in 3-7 days

0

66

Homelite 940947006

Combustion Label (English/Spanish)

$2.99

$

Usually ships in 3-7 days

0

67

Homelite 940974090

Fire Distance Label (Eng/Sp)

$2.49

$

Usually ships in 3-7 days

0

68

Homelite 940705185

Logo Label (Honda)

$2.49

$

Usually ships in 3-7 days

0

69

Homelite 940608012

Logo Label (Black Max, Long)

$2.49

$

Usually ships in 3-7 days

0

70

Homelite 940734158

Start Label

$

$

Not available

71

Homelite 940617105

Electric Start Label

$2.99

$

Usually ships in 3-7 days

0

72

Homelite 940680040

Hot Surface Label

$2.99

$

Usually ships in 3-7 days

0

73

Homelite 940974004

Risk of fire danger label

$2.99

$

Usually ships in 3-7 days

0

74

Homelite 308581054

Frame (Right)

$

$

Not available

75

Homelite 308581051

Frame (Left)

$

$

Not available

76

Homelite 678518002

Lock Nut (1/2-20, Hex)

$4.99

$

Usually ships in 3-7 days

0

77

Homelite 308910010

Handle Lock Assembly

$

$

Not available

78

Homelite 940513002

Ground Label Icon

$2.99

$

Usually ships in 3-7 days

0

79

Homelite 940678424

Data Label

$

$

Currently unavailable

80

Homelite 930717003

Zip Tie, (5-1/2 in., Black)

$2.49

$

Usually ships in 3-7 days

0

81

Homelite 570766014

Rubber Battery Cable Boot (Black)

$3.49

$

Usually ships in 3-7 days

0

82

Homelite 570766013

Rubber Battery Cable Boot (Red)

$

$

Not available

Homelite 991000484

Operator's Manual

$

$

Not available

Homelite 991000485

Quickstart Guide

$2.49

$

Usually ships in 3-7 days

0
