BM 907015 (090930287) - Black Max 7000 Watt Generator, Rev 06 (2018-10) Figure C Parts Diagram

7000 Watt Generator, Rev 06

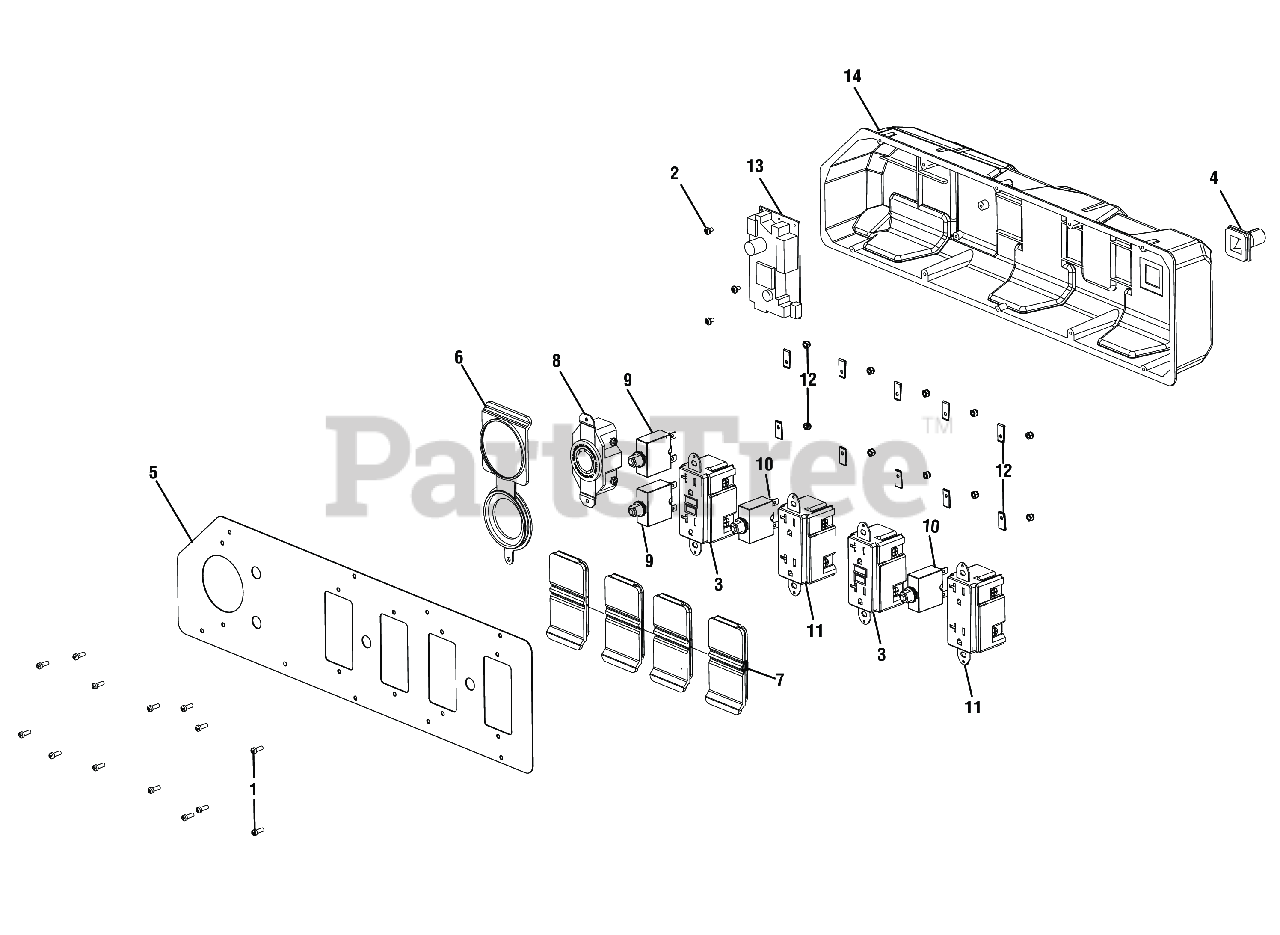

Figure C Parts Diagram

  • Title
1

Homelite 660598001

Screw (6-20 x 3/8 in., Phillips Pan Hd.)

$2.99

$

In Stock, only 2 left!

0

2

Homelite 660923015

Screw (M3 x 5 mm, T10 Torx Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

3

Homelite 290400024

120 Volt Duplex GFCI Receptacle

$126.99

$

In Stock, only 2 left!

0

4

Homelite 570766003

Rubber Boot (Control Panel Assembly)

$3.49

$

Usually ships in 3-7 days

0

5

Homelite 638496037

Control Panel Faceplate

$33.99

$

Usually ships in 3-7 days

0

6

Homelite 570412005

Twist Lock Receptacle Cover

$

$

Not available

7

Homelite 570412002

120V Duplex Receptacle Cover

$

$

Not available

8

Homelite 290401001

Twist Lock Receptacle (120/240 Volt, 30 Amp, L14-30R)

$25.99

$

In Stock, only 1 left!

0

9

Homelite 780351012

Circuit Breaker (30 Amp)

$13.99

$

Usually ships in 3-7 days

0

10

Homelite 780350007

Circuit Breaker (20 Amp, 125 Volt)

$6.49

$

Usually ships in 3-7 days

0

11

Homelite 290400006

Duplex Receptacle (120/240 Volt, 20 Amp)

$

$

Not available

12

Homelite 678720001

Lock Nut (6-32, Hex Hd.)

$1.49

$

In Stock, only 4 left!

0

12

Homelite 678824001

U- Clip Nut (#6)

$1.49

$

In Stock, Qty 6

0

13

Homelite 140173034

Battery Charger Assembly
(Superseded to 140173023)

$

$

Not available

14

Homelite 519707010

Control Box

$35.99

$

Usually ships in 3-7 days

0
